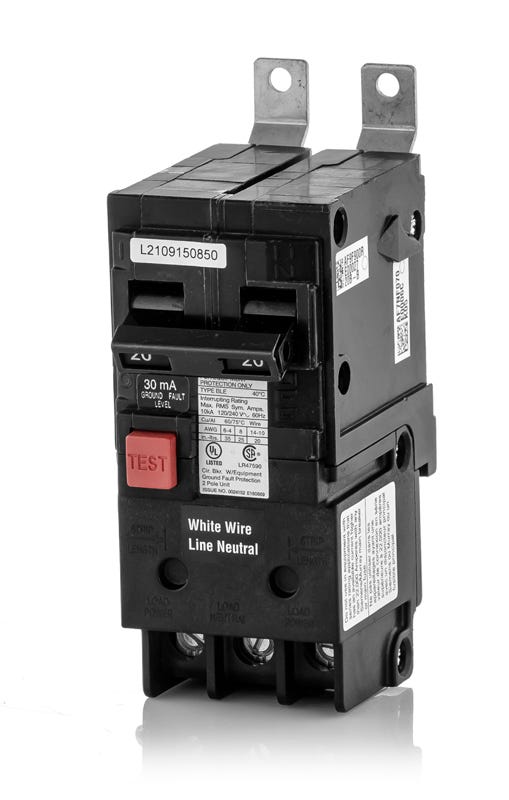

Siemens BE220 GFEP Molded Case Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
Quantity
Siemens BE220 - 20A GFEP Molded Case Circuit Breaker
New
Quantity
Description
Designed for heavy-duty applications, the Siemens BE220 2-pole ground fault equipment protection breaker delivers essential thermal-magnetic overcurrent defense. It actively monitors circuits for damaging line-to-ground faults to prevent electrical failures. Engineered for a secure connection, this bolt-on unit fits Siemens P1, P2, and P3 panelboards. It serves as a direct substitute for the B220EG breaker. With a 10kAIC rating at 120/240V, it utilizes a 30mA trip sensitivity threshold.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BE220 |
| Series | BL |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BLE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat is the ground fault trip sensitivity of the BE220?
The BE220 is a Ground Fault Equipment Protection (GFEP) breaker with a 30mA trip sensitivity. It is designed to protect equipment, such as heat trace cables, from damaging line-to-ground faults, rather than providing the 5mA personnel protection of a standard GFCI.
Which panelboards are compatible with the BE220 circuit breaker?
This bolt-on breaker is designed for installation in Siemens P1, P2, and P3 panelboards.
Is there a plug-on equivalent for the BE220?
Yes, the Siemens QE220 is the plug-on equivalent to the bolt-on BE220. Both are 20A, 2-pole GFEP breakers with a 30mA trip threshold.
What older Siemens breaker does the BE220 replace?
The BE220 serves as a direct replacement for the obsolete Siemens B220EG circuit breaker.
How is the neutral connection wired on this breaker?
The BE220 features a pigtail neutral wire. This pigtail must be securely connected to the neutral bar in the panelboard for the ground fault equipment protection to function correctly.
