Siemens BF120AH GFCI Molded Case Circuit Breaker
- 20A
- 1 Pole

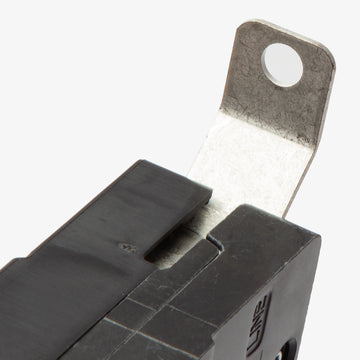

- Bolt-On
Siemens
BF120AH
GFCI Molded Case Circuit Breaker
Brand
Siemens
SKU
BF120AH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BF120AH - 20A GFCI Molded Case Circuit Breaker
New
Quantity
Similar Items
20A GFCI Molded Case Circuit Breaker
25A GFCI Molded Case Circuit Breaker
30A GFCI Molded Case Circuit Breaker
Description
Engineered for systems requiring higher fault tolerance, the Siemens BF120AH is a 20-amp, single-pole GFCI breaker. It delivers 120VAC power while providing 5mA Class A ground fault protection to safeguard personnel. Featuring a robust bolt-on connection, this unit installs into Siemens P1, P2, and P3 panelboards. The standout feature is its 22kAIC interrupting rating, offering enhanced protection against severe short circuits alongside automated self-testing capabilities for maximum safety.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BF120AH |
| Series | BF |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Self-Test |
Product FAQs
7 answersWhat panels is the Siemens BF120AH breaker compatible with?
This bolt-on circuit breaker mounts into Siemens P1, P2, and P3 commercial panelboards. It does not fit standard plug-on residential load centers.
What does the H in the BF120AH catalog number indicate?
The H designates a higher interrupting capacity. The standard BF120A model has a 10kAIC rating, while the BF120AH features a 22kAIC rating for commercial electrical systems with higher available fault currents.
What level of ground fault protection does the BF120AH provide?
This unit provides Class A ground fault protection. It is designed to trip when it detects a ground fault leakage current of 5mA, which is the standard requirement for personnel protection in wet or damp areas.

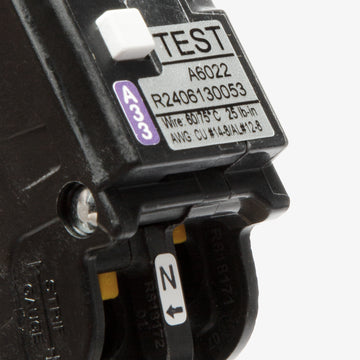

How is the pigtail neutral connected during installation?
The pre-attached coiled white pigtail wire must connect directly to the neutral bus bar in the panelboard. The neutral wire from the protected branch circuit then connects to the designated load neutral lug on the breaker itself.
Can I install this breaker in a residential Siemens load center?
No. The BF120AH features a bolt-on connection type specifically designed for commercial lighting and distribution panels. Standard residential load centers require plug-on QP or QPF style breakers.
Does the BF120AH include arc fault protection?
No. This unit provides thermal magnetic overcurrent protection and ground fault protection only. It does not detect arc faults.
Is the BF120AH considered a BLHF type breaker?
Yes. Under Siemens documentation, 1-pole 22kAIC bolt-on GFCI breakers in this physical frame size fall under the BLHF type classification.
