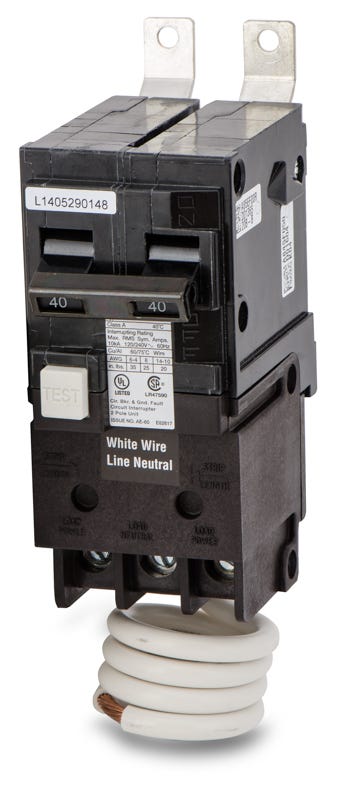

Siemens BF240 GFCI Molded Case Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
Quantity
Siemens BF240 - 40A GFCI Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BF240 - 40A GFCI Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BF240 |
| Series | BL |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Quantity
Siemens BF240 - 40A GFCI Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BF240-R |
| Series | BL |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Description
Part of the Siemens BL series, this 40A ground-fault breaker provides critical protection for commercial systems. It monitors two-pole 120/240V circuits to prevent shock hazards. The unit features a bolt-on configuration that installs firmly into P1, P2, and P3 panelboards. It crosses over to the B240GF replacement SKU for facility upgrades. Rated for 10kAIC, this HACR-approved device utilizes fixed thermal and magnetic trip settings for consistent performance.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BF240 |
| Series | BL |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
4 answersWhich panelboards are compatible with the Siemens BF240 circuit breaker?
The BF240 is a bolt-on breaker designed for use in Siemens P1, P2, and P3 panelboards. It is not compatible with standard plug-on load centers.
How is the neutral connection handled on the BF240 GFCI breaker?
This breaker features a pigtail neutral. The white pigtail wire must be connected directly to the panel neutral bus bar for the ground fault circuitry to function properly.
What level of ground fault protection does the BF240 provide?
It provides Class A 5mA personnel protection to safeguard against electrical shock, in addition to standard thermal-magnetic overload and short circuit protection.
Is there a plug-on equivalent for the BF240?
Yes, the Siemens QF240 is the plug-on equivalent for this breaker. The QF240 is designed for use in standard Siemens load centers rather than bolt-on panelboards.
