Siemens BF240AH GFCI Molded Case Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
Siemens
BF240AH
GFCI Molded Case Circuit Breaker
Brand
Siemens
SKU
BF240AH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

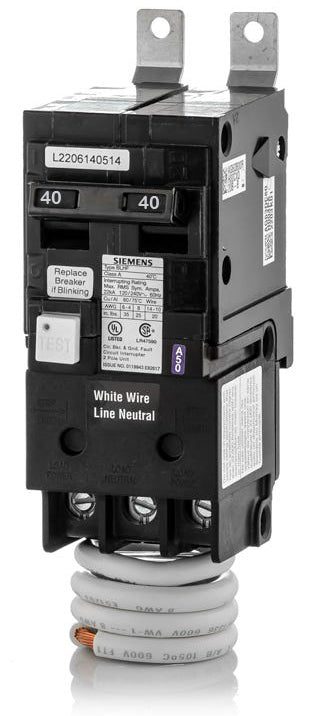

Siemens BF240AH - 40A GFCI Molded Case Circuit Breaker
New
Quantity
Similar Items
30A GFCI Molded Case Circuit Breaker
60A GFCI Molded Case Circuit Breaker
15A GFCI Molded Case Circuit Breaker
Description
Part of the BLHF series, the Siemens BF240AH is a 40-amp, 2-pole ground fault circuit breaker engineered for commercial power distribution. It safeguards 120/240VAC circuits against overloads and ground faults. Designed for a secure mechanical connection, this breaker mounts into Siemens P1, P2, and P3 panelboards. The bolt-on configuration ensures stability in demanding environments.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BF240AH |
| Series | BF |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip |
Product FAQs
5 answersWhat is the difference between the Siemens BF240A and BF240AH?
The "H" in the BF240AH catalog number indicates a high interrupting rating. The BF240AH is rated for 22kAIC at 120/240VAC, whereas the standard BF240A is rated for 10kAIC.
What level of ground fault protection does the BF240AH provide?
This breaker provides Class A ground fault protection, which trips when it detects a ground fault of 5mA (milliamps). This level of protection is designed to protect personnel from electrical shock in wet or damp locations.
Can I install the BF240AH in a standard Siemens load center?
No. The BF240AH features a bolt-on connection designed specifically for Siemens P1, P2, and P3 commercial panelboards. It will not fit in standard plug-on residential load centers like the EQ or PL series.
How is the neutral connection handled on this GFCI breaker?
The BF240AH includes a pigtail neutral wire. During installation, this pigtail must be securely connected to the panelboard's neutral bar to power the breaker's internal ground fault circuitry and ensure proper operation.
Is the BF240AH rated for HACR applications?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific designation.
