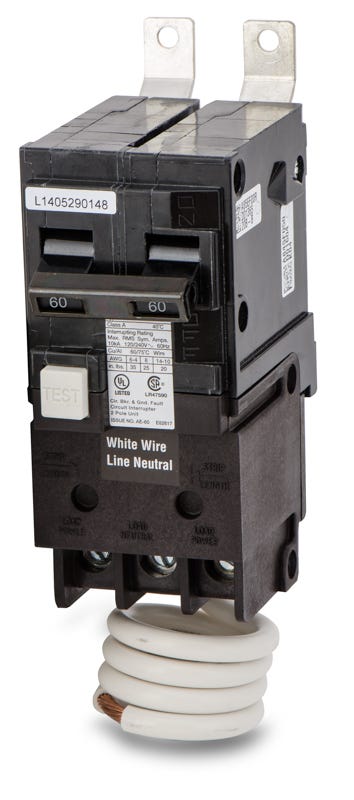

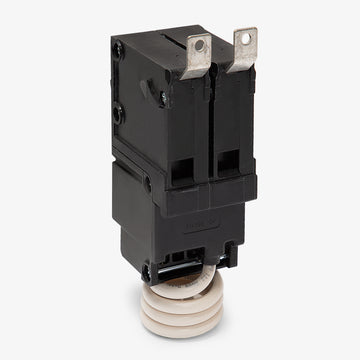

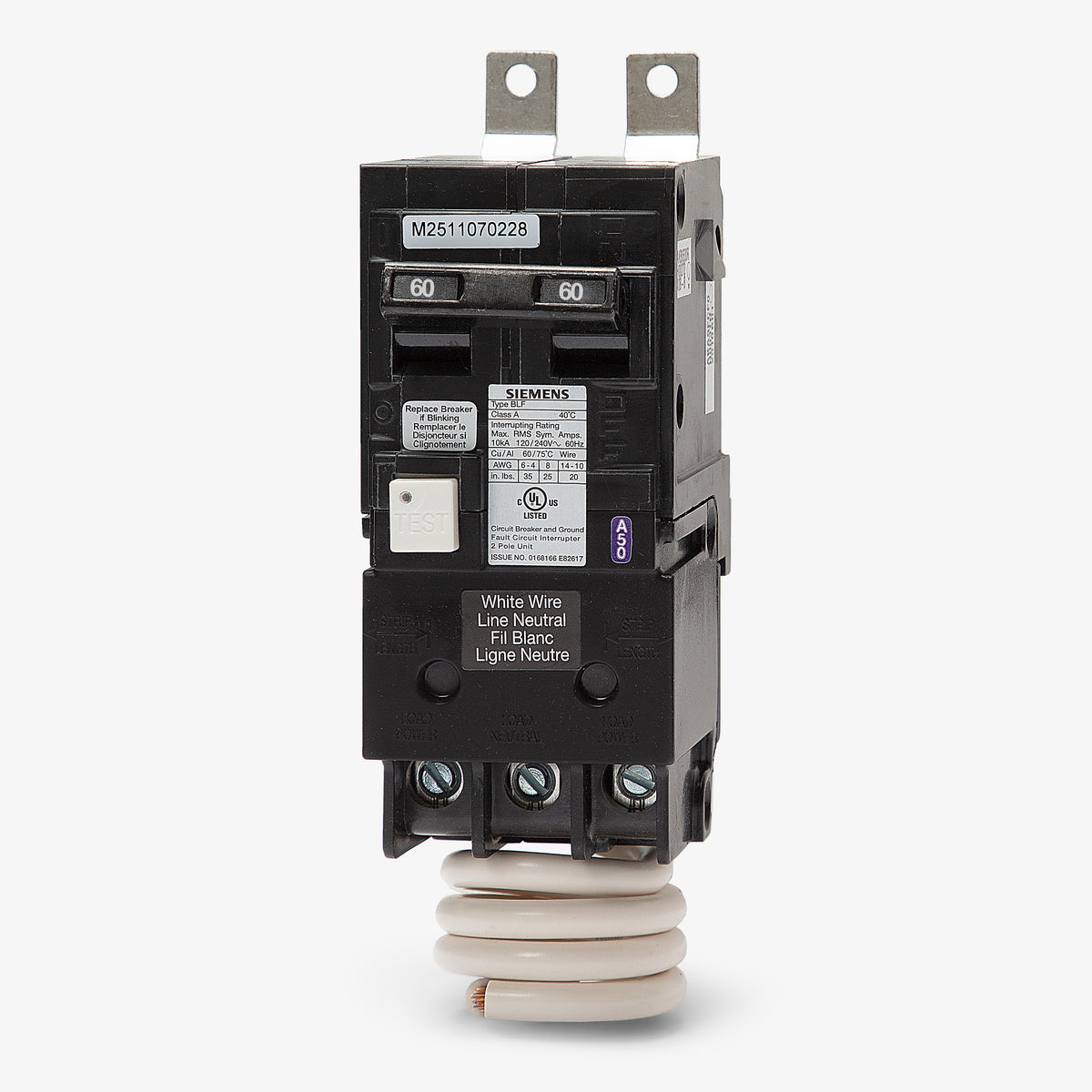

Siemens BF260 GFCI Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Siemens
BF260
GFCI Molded Case Circuit Breaker
Brand
Siemens
SKU
BF260
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BF260 - 60A GFCI Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BF260 - 60A GFCI Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BF260 |
| Series | BF |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test |
Sold out
Quantity
Siemens BF260 - 60A GFCI Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BF260-R |
| Series | BF |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test |
Similar Items
60A GFCI Molded Case Circuit Breaker
50A GFCI Molded Case Circuit Breaker
50A GFCI Molded Case Circuit Breaker
Description
Part of the Siemens BF series, this 60-amp, two-pole GFCI breaker provides essential Class A (5mA) ground fault protection for commercial environments. It operates at 120/240VAC with a 10kA interrupting capacity to safely handle electrical faults. The bolt-on configuration installs into Siemens P1, P2, and P3 panelboards. It ensures NEC compliance for circuits requiring personnel protection in damp locations. This HACR-rated unit features built-in self-testing capabilities for added safety.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BF260 |
| Series | BF |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test |
Product FAQs
6 answersWhich Siemens panelboards are compatible with the BF260 circuit breaker?

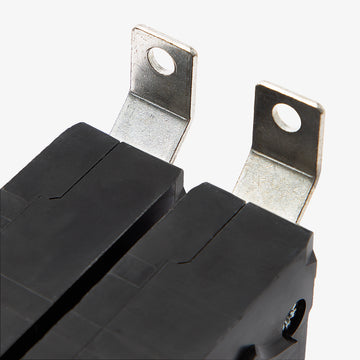

The BF260 is a bolt-on breaker designed specifically for Siemens P1, P2, and P3 panelboards. Because of its bolt-on mounting configuration, it cannot be installed in standard plug-on load centers.
Is there a plug-on equivalent to the BF260 for residential load centers?
Yes, the Siemens QF260 or QF260A is the plug-on equivalent. It provides the same 60A, 2-pole GFCI protection but is designed to mount in Siemens EQ, ES, PL, and Ultimate load centers.
What is the ground fault trip threshold for the BF260?
This breaker provides Class A personnel protection, meaning the ground fault circuit interrupter (GFCI) is calibrated to trip at a 5mA threshold.

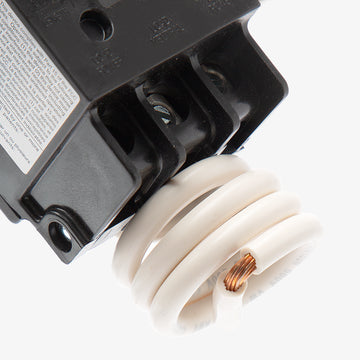

How is the neutral connected on this GFCI breaker?
The BF260 utilizes a pigtail neutral wire. This pigtail must be routed and connected directly to the neutral bus bar in the panelboard for the ground fault detection circuitry to function properly.
What wire gauges are accepted by the terminal lugs?
The lugs on the BF260 accept 8 AWG to 6 AWG copper (Cu) conductors, or 8 AWG to 4 AWG aluminum (Al) conductors.
What type of trip mechanism does the BF260 use?
It uses a fixed thermal-magnetic trip unit that provides Long-Time and Instantaneous overcurrent protection, integrated with Ground-Fault protection (LIG).
