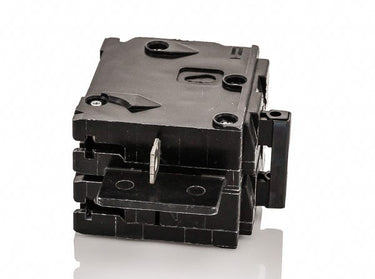

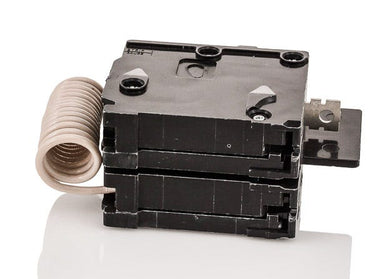

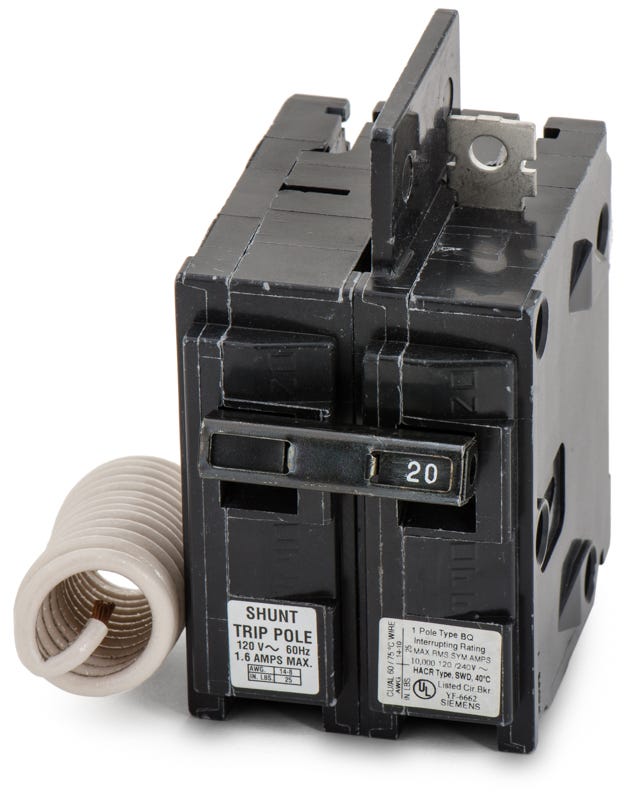

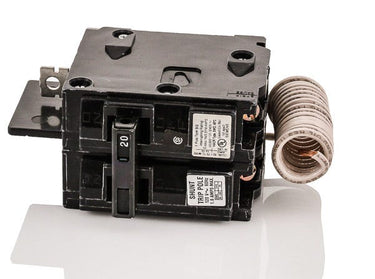

Siemens BQ1B02000S01 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Quantity
Siemens BQ1B02000S01 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built for specialized control applications, the BQ1B02000S01 is a 1-pole, 20A breaker featuring a factory-installed 120VAC shunt trip. This allows the unit to be tripped remotely via an external voltage signal for safety interlocks. Designed for bolt-on installation, this breaker fits seamlessly into Siemens P1, P2, and P3 panelboards. It utilizes standard load side lugs that accommodate 14-6 AWG copper or 12-6 AWG aluminum conductors.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ1B02000S01 |
| Series | BQ |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC, Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, SWD Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich panelboards are compatible with the BQ1B02000S01?
This bolt-on breaker is designed specifically for use in Siemens P1, P2, and P3 panelboards.
What does the 00S01 suffix mean for this breaker?
The 00S01 suffix indicates that the breaker includes a factory-installed 120VAC shunt trip. This allows the unit to be tripped remotely via an external voltage signal for safety interlocks or emergency stops.
What wire sizes do the lugs on the BQ1B02000S01 accept?
The standard load lugs accommodate 14-6 AWG copper (Cu) or 12-6 AWG aluminum (Al) conductors.
Can this breaker replace older ITE BQ series models?
Yes. Siemens acquired ITE, and the BQ1B02000S01 is a direct replacement for legacy ITE breakers with the same catalog number and 120VAC shunt trip requirement.
Is the BQ1B02000S01 HACR rated?
Yes, this breaker is HACR rated for use with heating, air conditioning, and refrigeration equipment. It is also UL Listed and CSA Certified.
What type of circuit protection does this breaker provide?
It features a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) functions for standard overload and short circuit protection, alongside the 120VAC shunt trip for remote safety disconnects.
