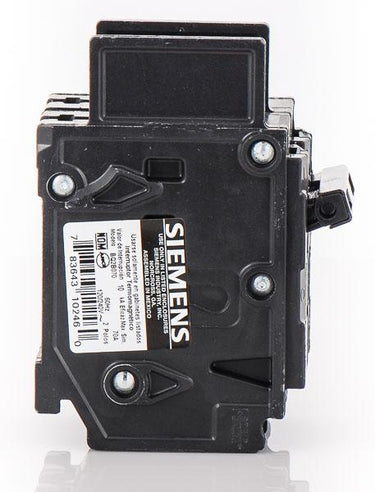

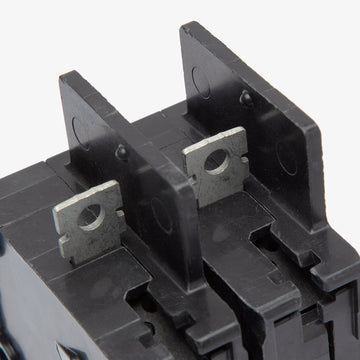

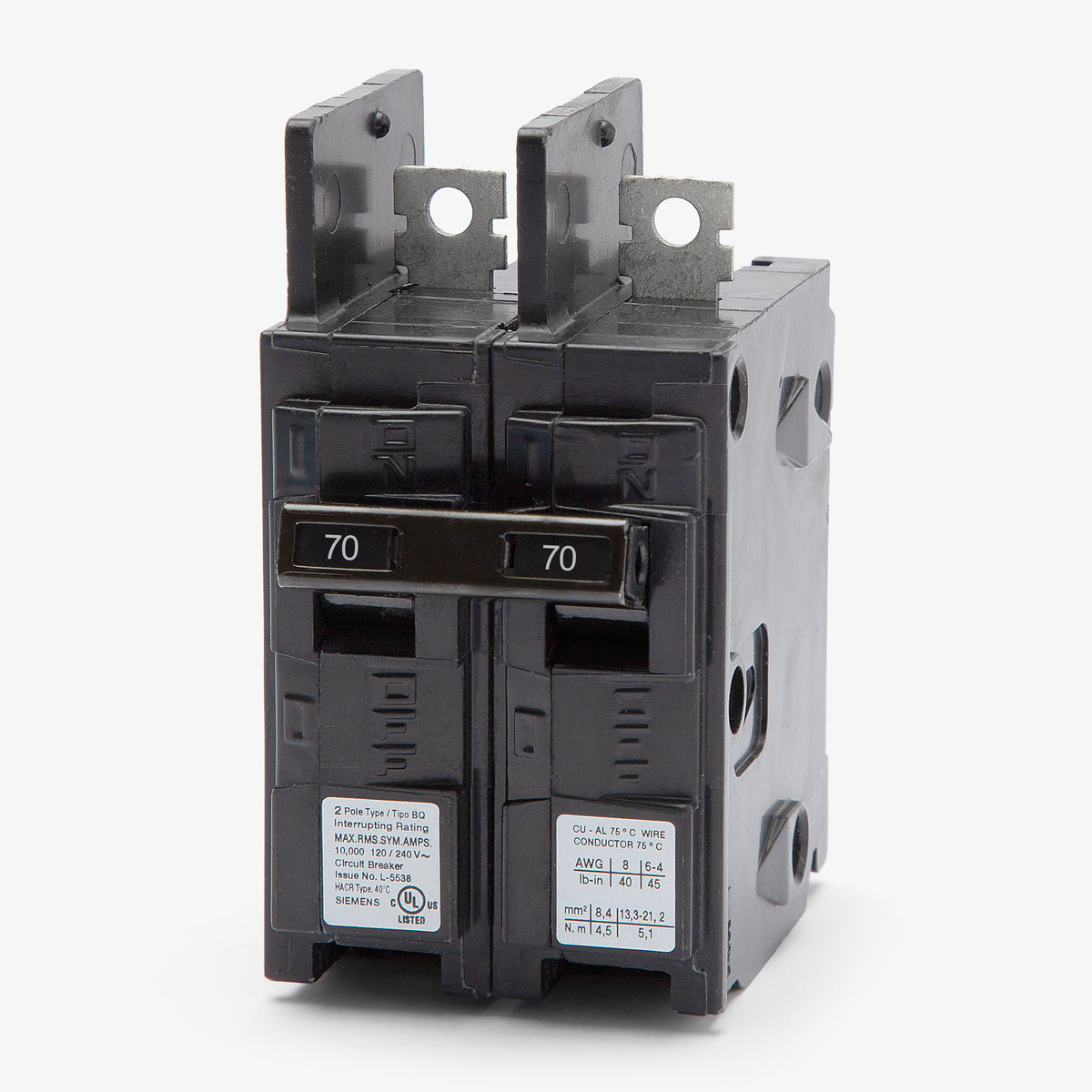

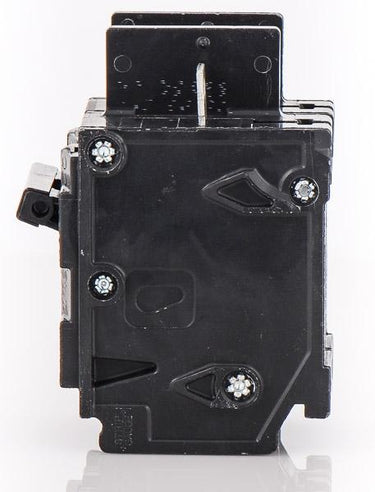

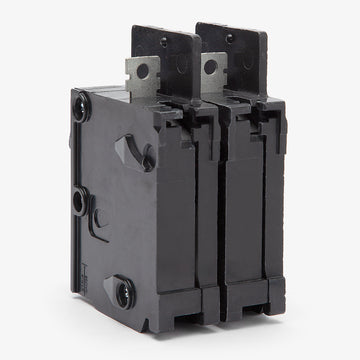

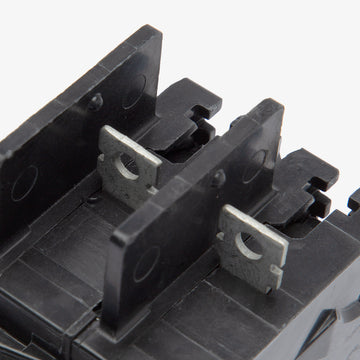

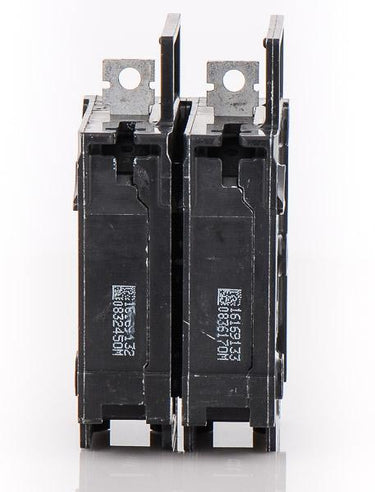

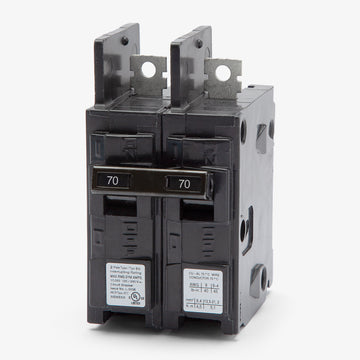

Siemens BQ2B070 Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
Siemens
BQ2B070
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ2B070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ2B070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQ2B070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ2B070 |
| Series | BQ |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Sold out
Quantity
Siemens BQ2B070 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ2B070-R |
| Series | BQ |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Similar Items
70A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
Engineered for reliable power distribution, the Siemens BQ2B070 is a 70A, 2-pole molded case circuit breaker. It utilizes thermal-magnetic trip technology to defend commercial and industrial systems against overloads and short circuits. Designed for seamless integration, this breaker bolts securely into Siemens P1, P2, and P3 panelboards. The bolt-on design provides a highly stable connection. Operating at 120/240VAC, this HACR-rated device features a 10kA interrupting capacity.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ2B070 |
| Series | BQ |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich panelboards accept the BQ2B070 circuit breaker?
This bolt-on breaker is designed exclusively for Siemens P1, P2, and P3 commercial panelboards. It cannot be installed in standard residential Siemens load centers, which require plug-on QP series breakers.
Is there a higher interrupting rating version of the BQ2B070 available?
Yes. If your system requires a higher short-circuit rating than 10kAIC, the BQ2B070H (BQH type) offers 22kAIC, and the HB2B070 (HBQ type) offers 65kAIC at 120/240VAC.
What is the difference between the Siemens BQ2B070 and a BQD series breaker?
While both are 1-inch per pole molded case circuit breakers, the BQ2B070 is rated for 120/240VAC applications. The BQD series is rated for up to 480Y/277VAC and is commonly used in OEM equipment where DIN rail or direct surface mounting is required.
Is the Siemens BQ2B070 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific protection.
Can the BQ2B070 be used as a Switching Duty (SWD) breaker?
No. The SWD rating for switching fluorescent lighting loads only applies to 15A and 20A single-pole breakers. A 70A breaker like the BQ2B070 does not carry an SWD rating.
Are the trip settings on the BQ2B070 adjustable?
No. The BQ2B070 features a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings for long-time and instantaneous protection.
