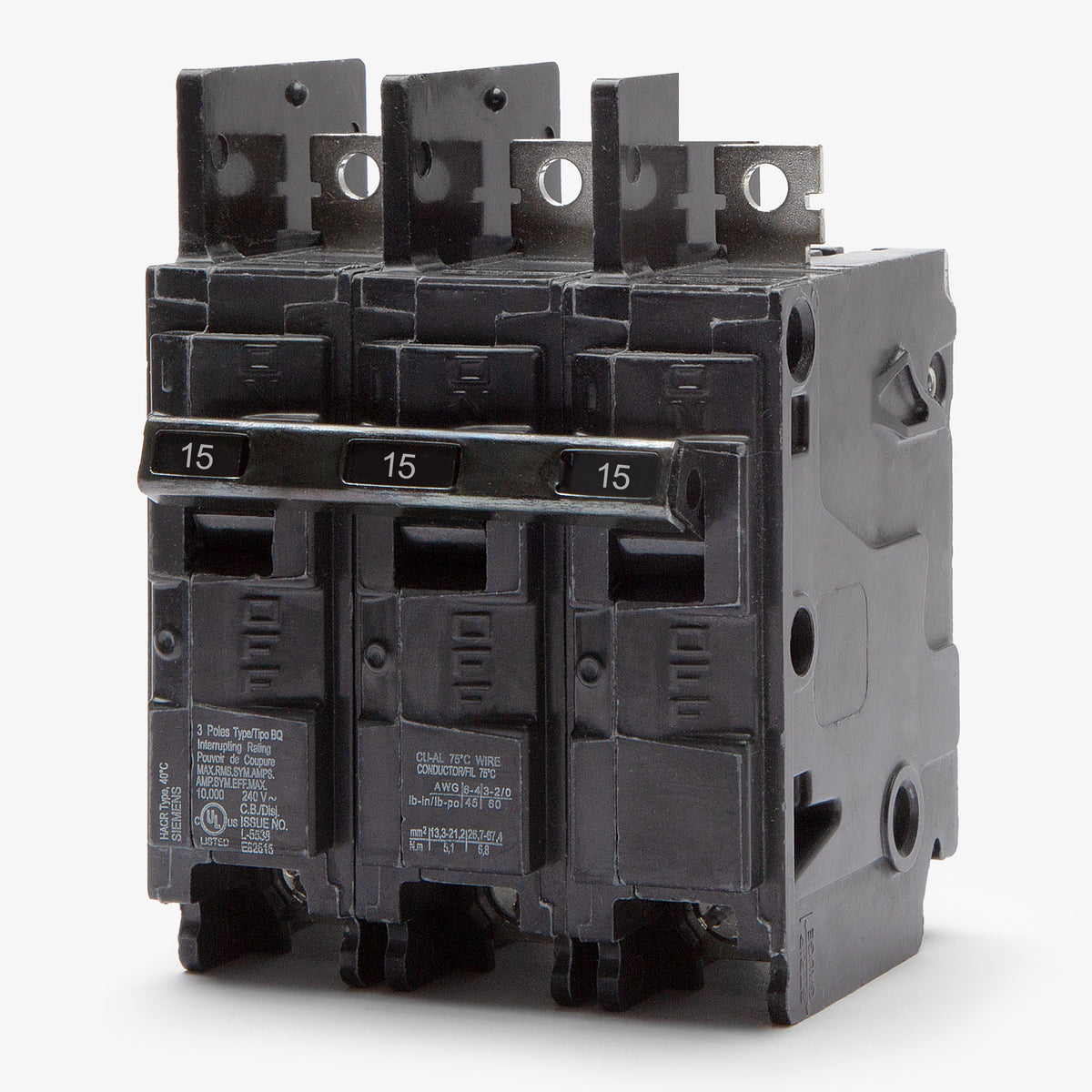

Siemens BQ3B015H Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Siemens
BQ3B015H
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ3B015H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ3B015H - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQ3B015H - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ3B015H |
| Series | BQ |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Sold out
Quantity
Siemens BQ3B015H - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ3B015H-R |
| Series | BQ |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
Providing reliable 3-phase protection, the Siemens BQ3B015H is a 15-amp molded case circuit breaker designed for commercial environments. This unit mounts into compatible Siemens panelboards using a secure bolt-on connection. It can serve as a cross-reference for QBHW3015, THHQB32015, and QOB315VH models. With an upgraded interrupting rating of 22kAIC at 240VAC, this BQH frame breaker handles higher fault currents. It is HACR rated for HVAC use.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ3B015H |
| Series | BQ |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhich panelboards accept the Siemens BQ3B015H circuit breaker?
This BQ frame breaker is designed for bolt-on installation in Siemens P1, P2, and P3 panelboards. It is also compatible with many legacy ITE panelboards that accept bolt-on branch breakers.
What does the H suffix in the BQ3B015H part number signify?
The H designates this as a high-interrupting BQH frame breaker. It provides a 22kAIC rating at 240VAC, which is higher than the standard 10kAIC rating found on base BQ models.
Is the BQ3B015H approved for HVAC applications?
Yes, this breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
Which breakers can the BQ3B015H cross-reference?
For panel builders or facilities looking for a 15A, 3-pole, 22kAIC bolt-on breaker, this unit serves as a functional cross-reference to models like the QBHW3015, THHQB32015, and QOB315VH. Always verify that your specific panelboard is UL listed to accept Siemens BQ frame breakers before installation.
Does the BQ3B015H require a separate mounting hardware kit?
No additional mounting kits are required for standard installation. The breaker features a built-in bolt-on connection that secures directly to the bus bar of compatible Siemens panelboards.
