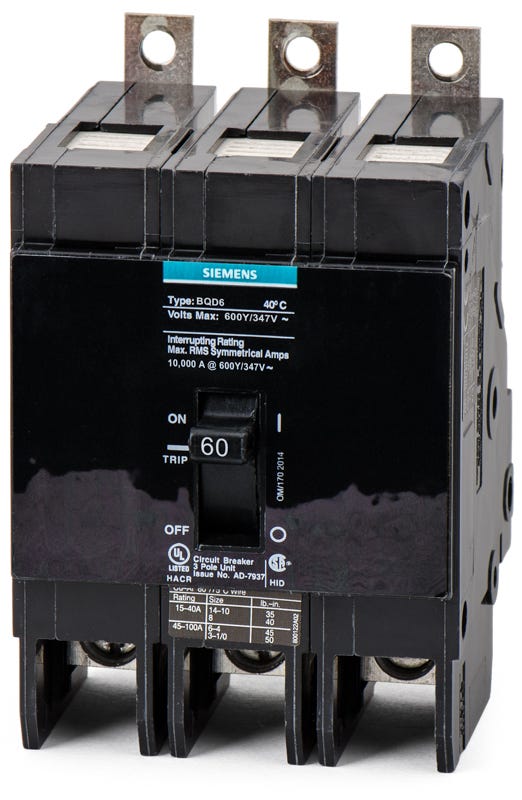

Siemens BQD6360 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Siemens
BQD6360
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD6360
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD6360 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Part of the SENTRON family, this 60A three-pole breaker mounts into Siemens P1, P2, and P3 commercial panelboards. It provides standard 10kAIC interrupting capacity at 600Y/347VAC, making it suitable for various industrial applications. The BQD6 frame features non-interchangeable thermal-magnetic trip units with quick-make, quick-break mechanisms. HACR rated for heating and cooling equipment circuits, it accepts 8-1 AWG copper or 6-1/0 AWG aluminum wiring via standard lug terminals.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD6360 |
| Series | BQD6 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 600Y/347VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5 |
| Approval | CSA |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards are compatible with the BQD6360 circuit breaker?
This breaker is designed for bolt-on installation in Siemens P1, P2, and P3 commercial panelboards.
How does the BQD6360 mount to the panelboard?
It uses a bolt-on, low-tab connection that mounts directly to the panelboard's line-end bus tab with a single-screw mounting method.
What wire sizes and materials are accepted by the lugs on this breaker?
The factory-installed line and load lugs accept 8 to 1 AWG copper wire or 6 to 1/0 AWG aluminum wire.
Can the BQD6360 be used in direct current (DC) applications?
Yes, this breaker is rated for DC systems up to 125/250VDC, providing an interrupting capacity of 14kA.
What is the difference between the Siemens BQD and BQD6 series breakers?
Standard BQD breakers are rated for maximum voltages of 480Y/277VAC. The BQD6 series is designed for higher voltage systems up to 600Y/347VAC and carries CSA certification for Canadian applications.
Is the BQD6360 suitable for reverse feed applications?
Yes, Siemens BQD and BQD6 molded case circuit breakers feature non-interchangeable trip units and are approved for reverse feed applications.
