Siemens CED62B015 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Unit Mount
Siemens
CED62B015
Molded Case Circuit Breaker
Brand
Siemens
SKU
CED62B015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

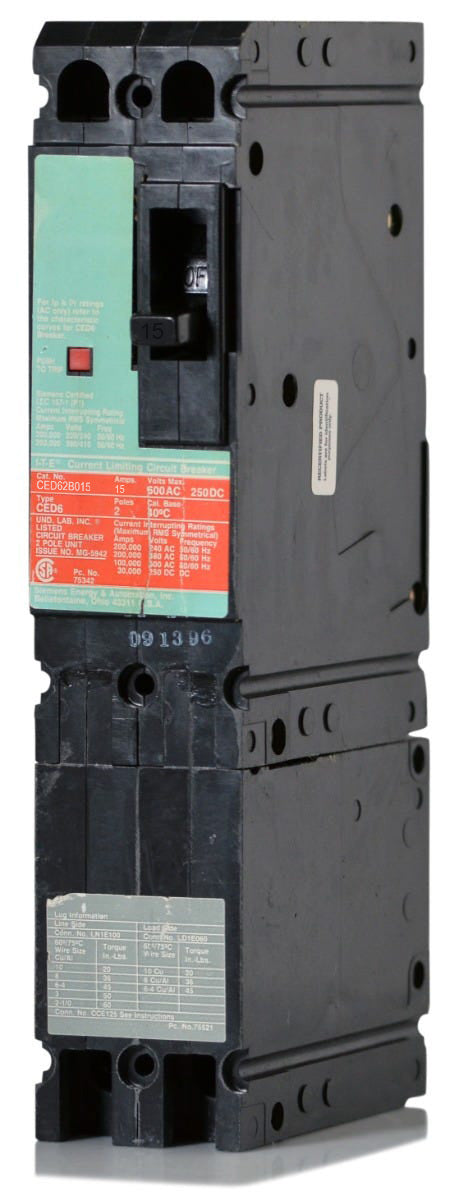

Siemens CED62B015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Part of Siemens' Sentron ED frame series, the CED62B015 is a 15-amp, two-pole current-limiting molded case circuit breaker. Built for demanding commercial and industrial environments, it delivers robust fuseless protection to safeguard downstream equipment from high-fault currents. This unit mount breaker installs into Siemens Sentron P1, P2, and P3 panelboards as well as compatible switchboards. It features a fixed thermal-magnetic trip unit and an extra-high 200kAIC rating at 480VAC.Specifications
| Brand | Siemens |
|---|---|
| Series | CED6 |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (Type P1, P2, P3), Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included (SA1E025) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Non-Interchangeable Trip |
| Special Features | Current Limiting |
Product FAQs
6 answersWhich panelboards are compatible with the CED62B015?
This unit-mount, bolt-on circuit breaker is designed for installation in Siemens Sentron P1, P2, and P3 panelboards, as well as compatible Siemens switchboards.
Can the CED62B015 replace a standard ED62B015 or legacy CE breaker?
Yes. The CED62B015 shares the standard ED-frame dimensions but features a current-limiting design, providing a higher interrupting capacity than standard ED4 or ED6 breakers. It also serves as a direct replacement for legacy ITE CE or CLE series breakers requiring a 15A, 2-pole configuration.
What wire sizes are approved for the lugs on the CED62B015?
The factory lugs are rated for 14 to 10 AWG copper wire or 12 to 10 AWG aluminum wire. Always refer to the breaker faceplate for specific torque requirements before landing conductors.
What distinguishes the CED6 series from standard ED-frame breakers?
The "C" in the CED6 prefix indicates a current-limiting construction. This fuseless design clears severe short circuits extremely fast, significantly reducing peak let-through energy and providing high interrupting ratings up to 200kA at 480V.
Are the trip functions on the CED62B015 adjustable?
No. This breaker utilizes a thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip settings.
Is the CED62B015 rated for direct current (DC) applications?
Yes, it is UL rated for up to 250V DC applications with a 30kA interrupting capacity. When applying this breaker on DC systems, ensure the two poles are wired correctly across the supply circuit per Siemens DC application guidelines.
