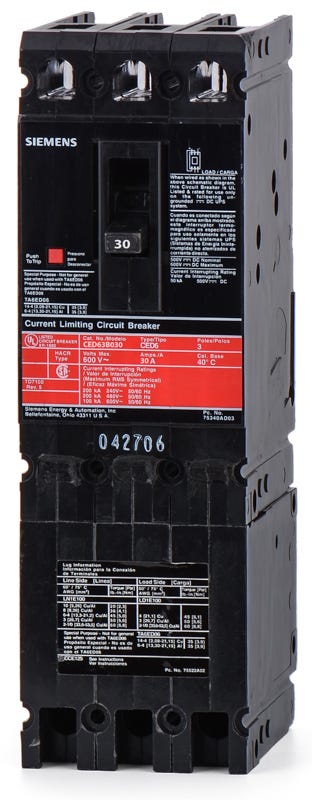

Siemens CED63B030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Unit Mount
Siemens
CED63B030
Molded Case Circuit Breaker
Brand
Siemens
SKU
CED63B030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens CED63B030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens CED63B030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Series | CED6 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC, 50kA @ 250VDC, 30kA @ 500VDC |
| Frame Type | CED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (Type P1, P2, P3), Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Non-Interchangeable Trip |
