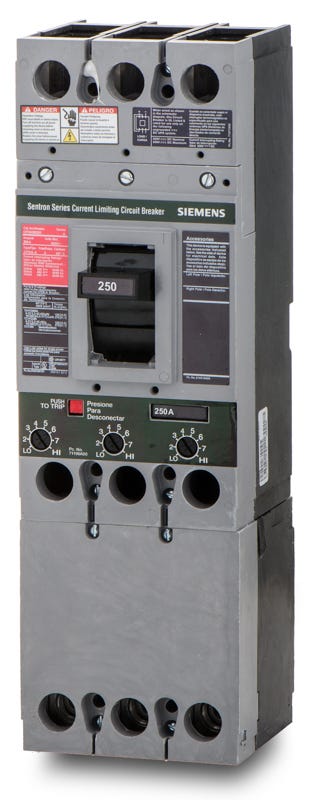

Siemens CFD63A250 Motor Circuit Protector
- 250A
- 3 Pole
- Unit Mount
Quantity
Siemens CFD63A250 - 250A 3 Pole Motor Circuit Protector
New
Quantity
Quantity
Siemens CFD63A250 - 250A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | CFD63A250 |
| Series | CFD6 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC, 50kA @ 500VDC |
| Amperage Range | 1100-2500A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Motor Control Centers, Motor Starters |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Lugs not included (Requires TA1FD350A) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, Fuseless, Motor Circuit Protector, Non-Interchangeable Trip, Trip-Free Mechanism |
| Special Features | Current Limiting |
Quantity
Siemens CFD63A250 - 250A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | CFD63A250-R |
| Series | CFD6 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC, 50kA @ 500VDC |
| Amperage Range | 1100-2500A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Motor Control Centers, Motor Starters |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Lugs not included (Requires TA1FD350A) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, Fuseless, Motor Circuit Protector, Non-Interchangeable Trip, Trip-Free Mechanism |
| Special Features | Current Limiting |
Description
Engineered for heavy-duty applications, the Siemens CFD63A250 is a 3-pole, 250A motor circuit protector. It provides magnetic-only protection with an adjustable trip range of 1100 to 2500A. This FD-frame unit installs into motor control centers and motor starters. It requires separate lug kits, such as the TA1FD350A, for proper wire termination. Boasting a robust 200 kAIC rating at 480V, this fuseless device delivers exceptional current-limiting performance.Specifications
| Brand | Siemens |
|---|---|
| Part Number | CFD63A250 |
| Series | CFD6 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC, 50kA @ 500VDC |
| Amperage Range | 1100-2500A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Motor Control Centers, Motor Starters |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Lugs not included (Requires TA1FD350A) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, Fuseless, Motor Circuit Protector, Non-Interchangeable Trip, Trip-Free Mechanism |
| Special Features | Current Limiting |
