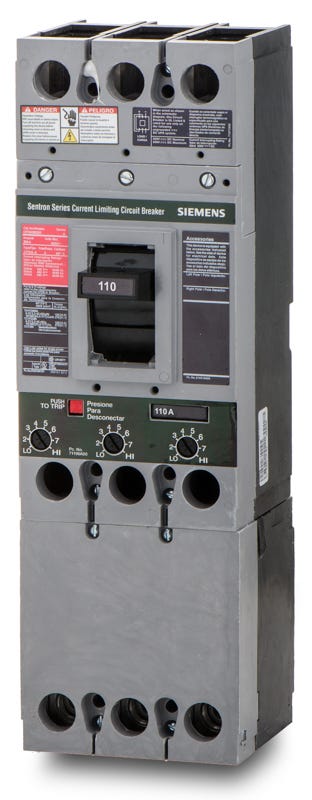

Siemens CFD63B110L Molded Case Circuit Breaker
- 110A
- 3 Pole
- Unit Mount
Siemens
CFD63B110L
Molded Case Circuit Breaker
Brand
Siemens
SKU
CFD63B110L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens CFD63B110L - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power distribution, the CFD63B110L is a 3-pole, 110A molded case circuit breaker from the Siemens Sentron series. It installs seamlessly into compatible panelboards, switchboards, and enclosures. Unlike the standard CFD63B110, this model comes equipped with factory-installed line and load lugs, streamlining the wiring process. The current-limiting FD frame delivers exceptional fault protection up to 200kAIC at 480VAC.Specifications
| Brand | Siemens |
|---|---|
| Part Number | CFD63B110L |
| Series | CFD6 |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC, 50kA @ 500VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Enclosures |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (Factory Installed) |
| Standards | HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, Fuseless, HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhat does the "C" in the CFD63B110L catalog number indicate?
The "C" designates this as a current-limiting circuit breaker. It features a fuseless, current-limiting architecture designed to safely interrupt high-level short circuits up to 200kA at 480V.
What wire sizes are compatible with the lugs on the CFD63B110L?
The factory-installed lugs accept 6 AWG to 350 kcmil copper (Cu) wire, or 4 AWG to 350 kcmil aluminum (Al) wire.
Is the trip unit on the CFD63B110L adjustable?
Yes, this thermal-magnetic breaker features a fixed thermal trip for overload protection and an adjustable magnetic trip for short-circuit protection. This allows installers to fine-tune the instantaneous trip settings for better system coordination.
What types of equipment is the CFD63B110L designed to fit?
This FD-frame breaker is designed for use in Siemens Sentron panelboards, switchboards, and enclosures.
What does the "L" at the end of the CFD63B110L part number mean?
The "L" indicates that the breaker is supplied with factory-installed line and load side lugs.
Does the CFD63B110L require external fuses to achieve its 200kAIC rating at 480V?
No, the CFD6 series utilizes a fuseless current-limiting design to achieve its high interrupting ratings without the need for upstream fuses.
