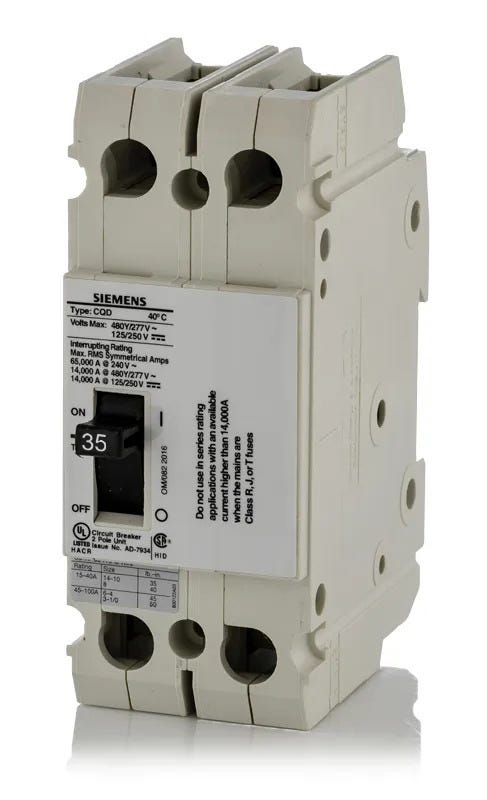

Siemens CQD235 Molded Case Circuit Breaker
- 35A
- 2 Pole
- DIN Rail
Siemens
CQD235
Molded Case Circuit Breaker
Brand
Siemens
SKU
CQD235
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens CQD235 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 2 Pole Molded Case Circuit Breaker
45A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial environments, this 35A molded case circuit breaker provides essential long-time and instantaneous (LI) protection. Manufactured by Siemens, it utilizes a non-interchangeable trip unit to safeguard circuits. Designed for versatility, the breaker mounts onto DIN rails within compatible enclosures. It is reverse feed rated, allowing for flexible wiring configurations. The unit boasts a 65kAIC capacity at 240VAC and comes complete with line and load lugs.Specifications
| Brand | Siemens |
|---|---|
| Part Number | CQD235 |
| Series | CQD |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | DIN Rail |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | CQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Enclosures |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersCan the Siemens CQD235 be reverse fed?
Yes, Siemens CQD series circuit breakers are UL Listed for reverse feed applications.
What enclosures is the CQD235 compatible with?
The CQD235 is designed for use in DIN rail enclosures. It mounts independently on a customer-supplied DIN rail or can be bolted directly to a flat surface.
Is the Siemens CQD235 HACR rated?
Yes, Siemens CQD breakers in the 15-100A range, including the 35A CQD235, are HACR marked for use with heating, air conditioning, and refrigeration equipment.
How is the CQD235 wired for 250VDC applications?
The CQD235 is rated for 125/250VDC. When applied on 250VDC systems, this two-pole breaker is generally wired with one pole on each leg of the direct current supply circuit.
What temperature rating is required for conductors connected to the CQD235?
Because it has a rated ampacity of 100A or less, the CQD235 must be connected using 60C or 75C rated wire. The terminal connectors are UL listed for 60/75C copper or aluminum conductors.
Where are add-on accessories installed on the CQD235?
Accessories such as shunt trips, auxiliary switches, and alarm switches are contained within an add-on module that attaches exclusively to the left side of the CQD frame.
What is the difference between Siemens BQD and CQD series breakers?
Both series feature a 1-inch pole width and share similar electrical ratings, but they utilize different mounting methods. BQD breakers are designed for panelboard mounting, whereas CQD breakers like the CQD235 are built for DIN rail or surface mounting.
