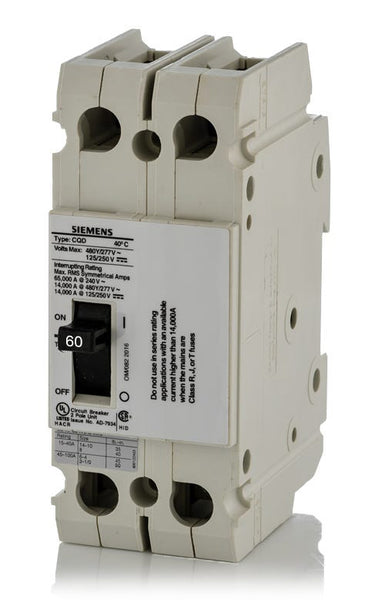

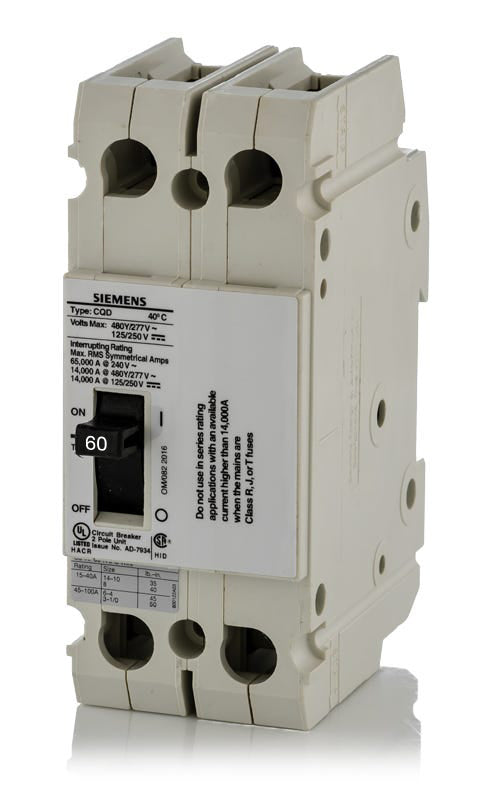

Siemens CQD260 Molded Case Circuit Breaker
- 60A
- 2 Pole
- DIN Rail
Siemens
CQD260
Molded Case Circuit Breaker
Brand
Siemens
SKU
CQD260
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens CQD260 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Molded Case Circuit Breaker
45A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
Description
Part of the Siemens Sentron family, the CQD260 is a 2-pole, 60A molded case circuit breaker. Built for commercial use, it utilizes a compact 1-inch per pole frame. It mounts onto standard 35mm DIN rails or surfaces in OEM panels. The cable-in/cable-out design accepts 8-1 AWG copper or 6-1/0 AWG aluminum wire. Rated for 65kAIC at 240V and 14kAIC at 480Y/277V, it delivers reliable thermal-magnetic protection. The unit is HACR rated and reverse feed capable.Specifications
| Brand | Siemens |
|---|---|
| Part Number | CQD260 |
| Series | CQD |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | DIN Rail |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | DIN Rail Enclosures, OEM Panels |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersHow does the CQD260 differ from the BQD260 circuit breaker?
While both share the same internal components and dimensions, the CQD260 is designed for independent mounting on 35mm DIN rail and includes both line and load side lugs. The BQD260 is a bolt-on breaker intended for Siemens panelboards and only includes load side lugs.
Can the CQD260 be reverse fed?
Yes. Because this breaker uses a non-interchangeable thermal magnetic trip unit, it is UL listed for reverse feed applications in control panels.
Is the CQD260 breaker HACR rated?
Yes, Siemens CQD frame breakers in this amperage range carry a Heating, Air Conditioning, and Refrigeration (HACR) rating, making them suitable for HVAC equipment protection.
Can I install this breaker in a residential Siemens load center?
No. This model is engineered strictly for DIN rail or surface mounting within OEM enclosures and industrial control panels. It is not physically compatible with standard residential load centers.
Does this breaker feature adjustable trip settings?
No. The internal thermal and magnetic trip elements are completely fixed. While it provides Long-Time and Instantaneous protection, neither parameter can be adjusted in the field.
What temperature rating applies to the factory installed lugs?
The mechanical line and load lugs included with this CQD series breaker are UL listed for use with 60 or 75 degree Celsius copper or aluminum conductors.
