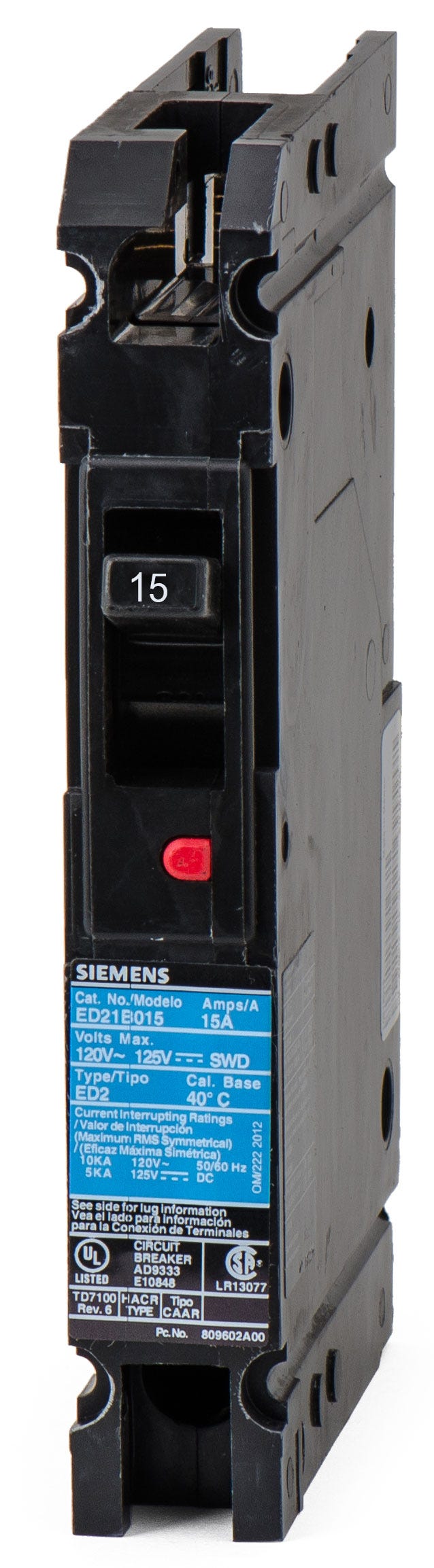

Siemens ED21B015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Siemens
ED21B015
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED21B015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED21B015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED21B015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED21B015-R |
| Series | ED2 |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens ED21B015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED21B015 |
| Series | ED2 |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
25A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
40A 1 Pole Molded Case Circuit Breaker
Description
Built for modern commercial facilities, the Siemens ED21B015 provides essential single-phase circuit protection. This 15A bolt-on molded case circuit breaker installs into Siemens P1, P2, P3, and Sentron panelboards or switchboards. Operating with a standard 10kA interrupting rating at 120VAC, it utilizes fixed thermal and magnetic trip elements for consistent performance. The HACR-rated device includes load side lugs and supports reverse feed applications in industrial environments.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED21B015 |
| Series | ED2 |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the ED21B015 circuit breaker?
The ED21B015 is a bolt-on ED frame breaker designed for use in Siemens P1, P2, and P3 panelboards, as well as Sentron panelboards and switchboards. It requires a bolt-on connection and is not compatible with load centers that require plug-in breakers.
What wire sizes and materials are approved for the lugs on this breaker?
The factory-installed lugs accept 14 to 10 AWG copper wire or 12 to 10 AWG aluminum wire. Ensure proper torque specifications are followed during installation as outlined by the manufacturer.
Can the ED21B015 be used in DC applications?
Yes, this breaker is rated for DC applications up to 125VDC with an interrupting capacity of 5kA. This makes it suitable for specific control circuits and DC power systems requiring a 15A 1-pole breaker.
Is the Siemens ED21B015 a direct replacement for older I-T-E breakers?
Yes, Siemens acquired I-T-E and continues to manufacture this breaker under the same catalog number. The Siemens ED21B015 is a direct replacement for the legacy I-T-E ED21B015.
Does this breaker provide ground fault or arc fault protection?
No, the ED21B015 is a standard thermal-magnetic breaker providing long-time and instantaneous trip functions. It does not include ground fault (GFCI) or arc fault (AFCI) protection.
