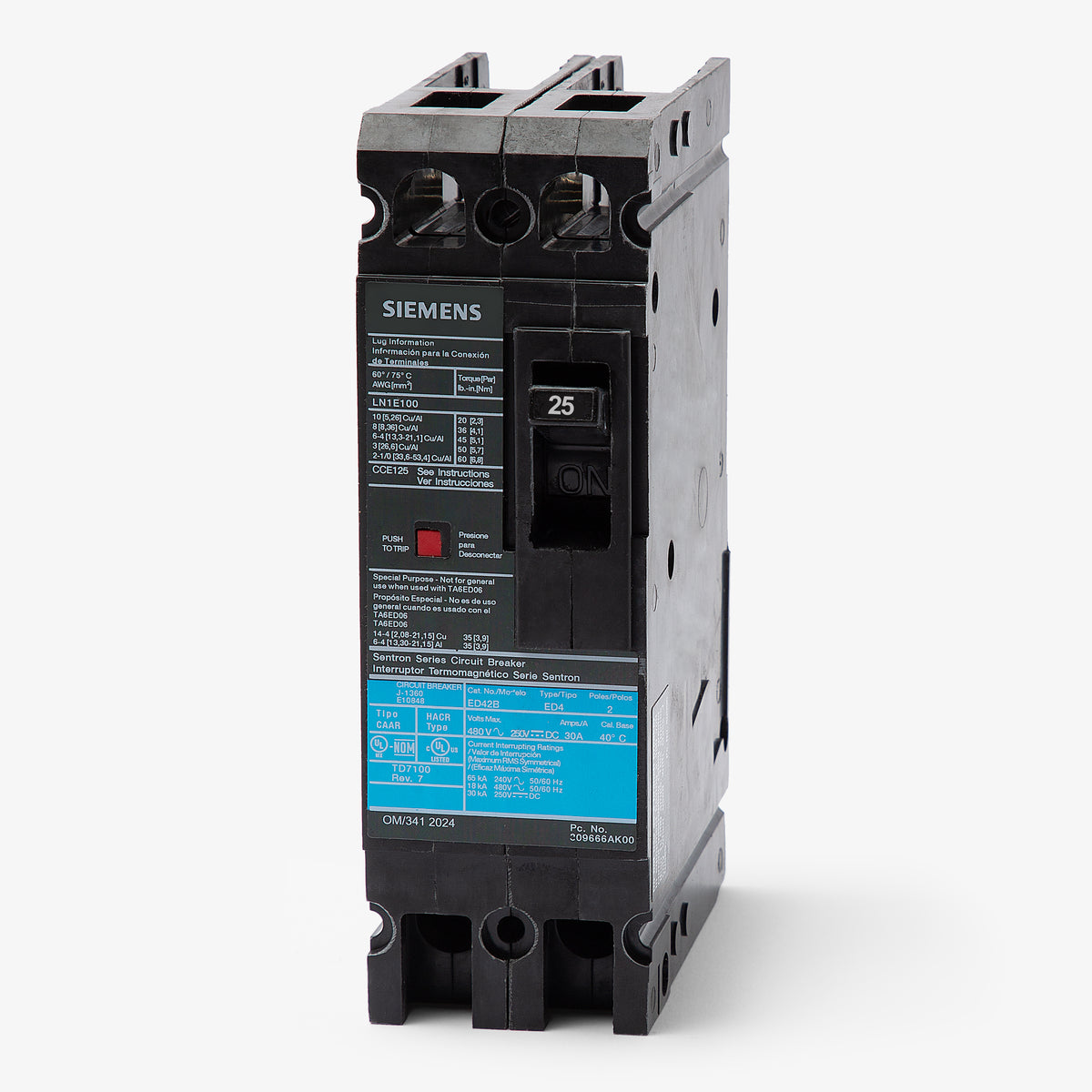

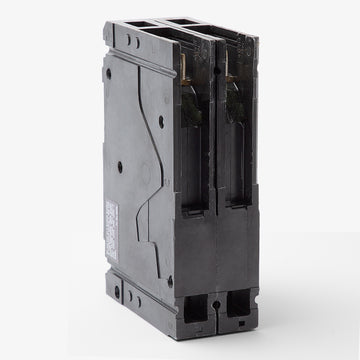

Siemens ED42B025 Circuit Breaker
- 25
- 2 Pole
- Bolt-On
Siemens
ED42B025
Circuit Breaker
Brand
Siemens
SKU
ED42B025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED42B025 2 Pole Circuit Breaker
New
Quantity
Quantity
Siemens ED42B025 2 Pole Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Series | ED4 |
| Amperage | 25 A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs |
| Standards | WEEE, RoHS, REACh |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens ED42B025 2 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | ED4 |
| Amperage | 25 A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs |
| Standards | WEEE, RoHS, REACh |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
20A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description

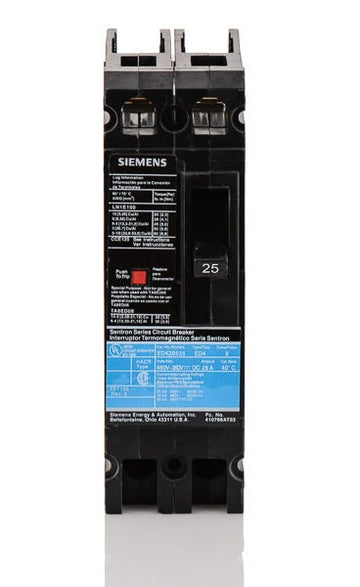

Siemens ED42B025 2 Pole Circuit Breaker
The Siemens ED42B025 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 25 Amps and a voltage rating of 480VAC. It has an interrupting rating of 18kAIC at 480V. The ED42B025 has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Siemens |
|---|---|
| Series | ED4 |
| Amperage | 25 A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs |
| Standards | WEEE, RoHS, REACh |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards are compatible with the ED42B025 circuit breaker?
This ED frame breaker is designed for bolt-on installation in Siemens P1, P2, and P3 panelboards, as well as compatible switchboards and motor control centers.
Can the Siemens ED42B025 replace older I-T-E circuit breakers?
Yes, the ED42B025 is a direct form, fit, and functional replacement for legacy I-T-E ED4 frame breakers with the same pole and amperage configuration.
Is the ED42B025 suitable for direct current applications?
Yes, in addition to its AC ratings, this breaker carries a DC interrupting rating of 30kA at 250VDC, making it suitable for specific direct current systems.
Are the trip settings adjustable on the ED42B025?
No, this breaker features a fixed thermal-magnetic trip unit with factory-set long-time and instantaneous trip functions.

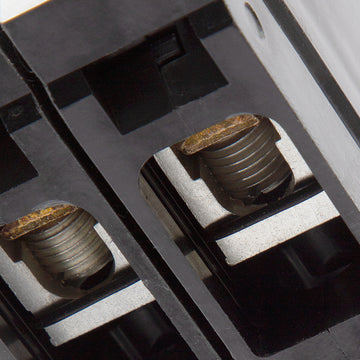

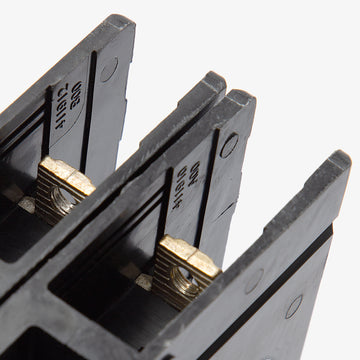

What wire sizes are accepted by the lugs on this breaker?
The standard lugs accept 14 to 10 AWG copper wire or 12 to 10 AWG aluminum wire. Always refer to the breaker label for proper torque specifications during installation.
Can the ED42B025 be reverse fed?
Yes, this thermal-magnetic molded case circuit breaker is suitable for reverse feed applications, as the trip unit is non-interchangeable and not marked for line and load restrictions.
Does this breaker mount on a standard DIN rail?
No, the ED42B025 is a bolt-on molded case circuit breaker designed for panelboard chassis mounting, not for DIN rail installation.
