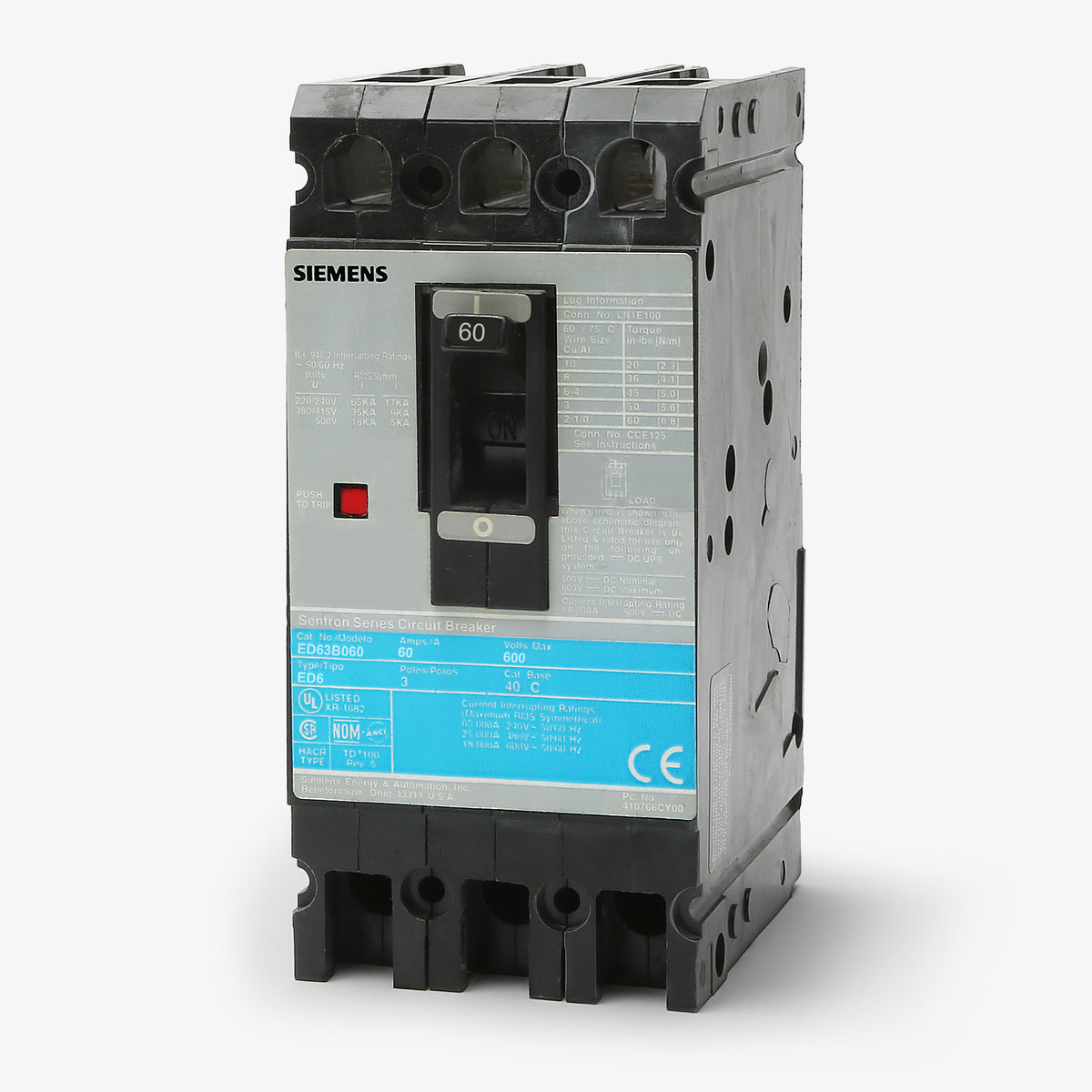

Siemens ED63B060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Siemens
ED63B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED63B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED63B060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED63B060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED63B060 |
| Series | ED6 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, RoHS, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens ED63B060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED63B060-R |
| Series | ED6 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, RoHS, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
70A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Siemens ED63B060 is a 3-pole, 60A molded case circuit breaker from the SENTRON family. It features a rugged ED frame design with fixed thermal-magnetic trip settings. This bolt-on breaker installs into Siemens P1, P2, and P3 panelboards, as well as SB switchboards. It comes equipped with load-side lugs only and is reverse feed capable. Rated to handle 25kAIC at 480VAC, it meets UL 489 standards. It crosses to the 3VA5160-4ED31-0AA0 for upgrades.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED63B060 |
| Series | ED6 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, RoHS, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhich Siemens panelboards accept the ED63B060 breaker?
This bolt-on ED frame breaker is compatible with Siemens P1, P2, and P3 panelboards, as well as SB switchboards and motor control centers.
Does the ED63B060 include lugs for both the line and load sides?
No. Because it is a bolt-on breaker, the line side mounts directly to the panelboard bus. It includes lugs on the load side only, which accept 10 AWG to 1/0 AWG copper or aluminum wire.
Is this breaker HACR rated for HVAC equipment?
Yes, the ED63B060 carries a HACR rating, ensuring it is approved for motor-driven heating, air conditioning, and refrigeration loads.
Is the ED63B060 rated for reverse feed applications?
Yes, this ED frame circuit breaker is approved for reverse feeding, allowing it to be back-fed when used in compatible panelboards.
Is this a direct replacement for an I-T-E ED63B060 breaker?
Yes. Siemens retained the ED63B060 catalog number after acquiring I-T-E. The current Siemens model serves as an exact drop-in replacement for the legacy I-T-E version.
