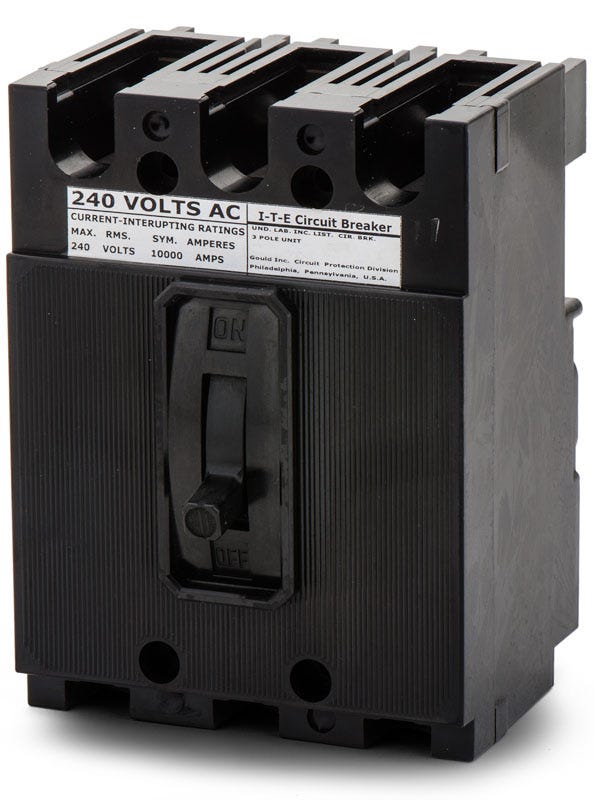

Siemens EE3B040 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Siemens
EE3B040
Molded Case Circuit Breaker
Brand
Siemens
SKU
EE3B040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

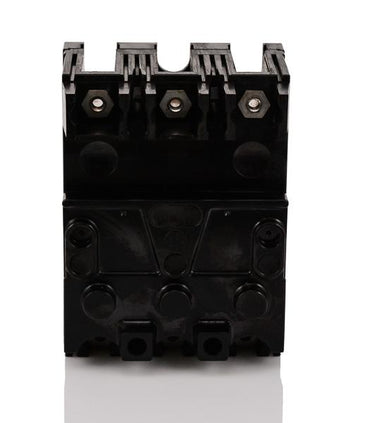

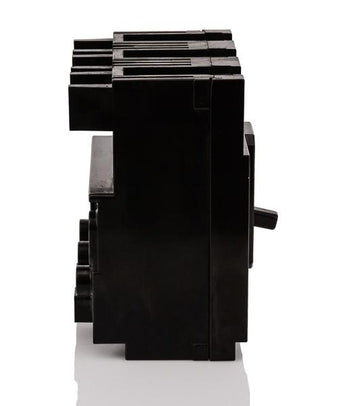

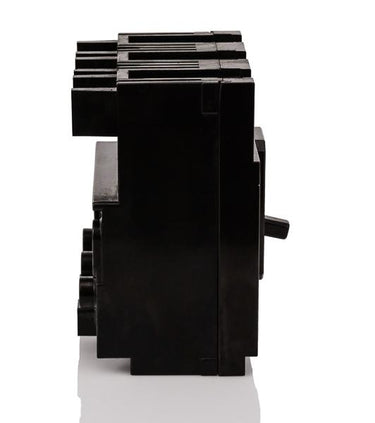

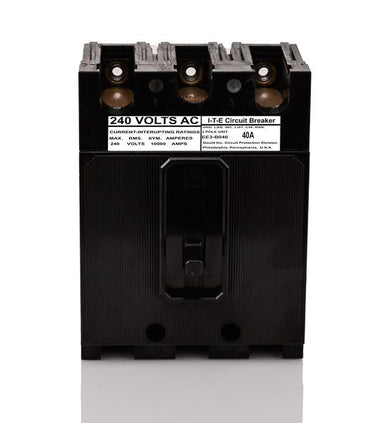

Siemens EE3B040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens EE3B040 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | EE3B040 |
| Series | EE |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | EE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens FC, FE, CDP, P2, P3 Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Quantity
Siemens EE3B040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | EE |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | EE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens FC, FE, CDP, P2, P3 Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Siemens EE3B040 is a 3-pole, 40A molded case circuit breaker. This legacy E-frame device provides dependable overcurrent protection for demanding electrical systems. It installs seamlessly into Siemens FC, FE, CDP, P2, and P3 panelboards using a secure bolt-on mounting style. For modern upgrades, this unit is officially replaced by the ED23B040. Rated for 10kAIC at 240VAC, it features fixed thermal magnetic trip functions.Specifications
| Brand | Siemens |
|---|---|
| Series | EE |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | EE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens FC, FE, CDP, P2, P3 Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
3 answersCan I install the EE3B040 in classic ITE panelboards?
Yes, in addition to Siemens FC, FE, CDP, P2, and P3 panelboards, this bolt-on breaker is backward compatible with classic ITE panelboards that accept E-frame breakers.
Is the Siemens EE3B040 a direct replacement for older ITE models?
Yes, this unit directly replaces legacy ITE, Gould, and I-T-E Imperial EE3B040 circuit breakers, maintaining the exact mechanical footprint and electrical characteristics.
What is the modern equivalent for the legacy EE3B040?
For system upgrades or modernizations, the ED23B040 serves as the current replacement for this legacy E-frame breaker.
