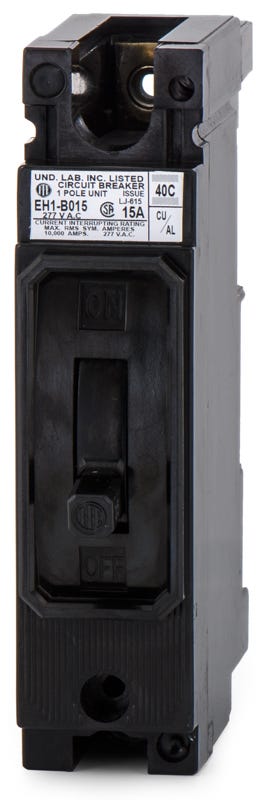

Siemens EH1B015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Siemens
EH1B015
Molded Case Circuit Breaker
Brand
Siemens
SKU
EH1B015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

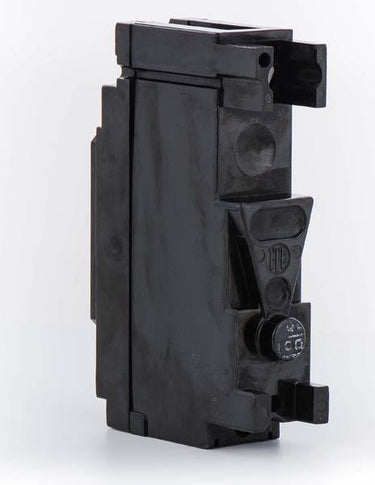

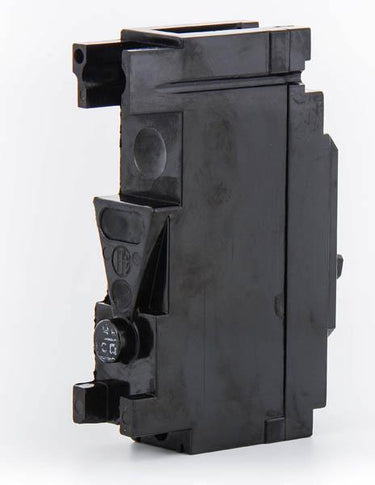

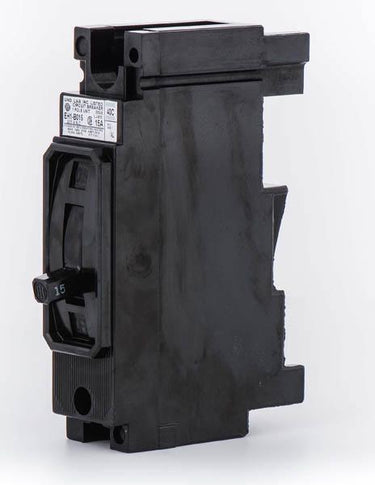

Siemens EH1B015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
15A 2 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Built to handle 277VAC commercial loads, this 15A molded case circuit breaker provides essential thermal-magnetic protection. The bolt-on design ensures a secure connection within legacy Siemens and ITE panelboards, specifically fitting E2, F2, and P1 configurations. While this EH-frame unit is a discontinued legacy component, it serves as an exact match for existing setups and is officially replaced by the ED41B015. It includes load side lugs and an HACR rating.Specifications
| Brand | Siemens |
|---|---|
| Part Number | EH1B015-R |
| Series | EH |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens / ITE Panelboards (Type E2, F2, P1) |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the Siemens EH1B015 circuit breaker?
This bolt-on breaker is designed for use in legacy Siemens and ITE panelboards, specifically fitting Type E2, F2, and P1 configurations.
Is the Siemens EH1B015 still in active production?
No, the EH-frame is a discontinued legacy component. While exact matches are available for existing setups, Siemens officially replaces this unit with the ED41B015 for new installations or modern upgrades.
What wire sizes and materials are accepted by the lugs on the EH1B015?
The breaker terminals accept 14 AWG to 10 AWG wire sizes and are compatible with both copper (Cu) and aluminum (Al) conductors.
What does the LI trip function indicate on this breaker?
The LI designation means the breaker features Long-Time and Instantaneous trip functions. This provides standard thermal magnetic protection, where the fixed thermal element protects against sustained overloads and the fixed magnetic element trips instantly during short circuits.
Is the EH1B015 suitable for HVAC applications?
Yes, this breaker carries an HACR rating, making it suitable for use with heating, air conditioning, and refrigeration equipment.
Can this breaker replace older ITE EH1B015 models?
Yes. Siemens acquired ITE, and this breaker is a direct drop-in replacement for older ITE-branded EH1B015 circuit breakers sharing the same frame and specifications.
