Siemens EH2B020 Molded Case Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
Siemens
EH2B020
Molded Case Circuit Breaker
Brand
Siemens
SKU
EH2B020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

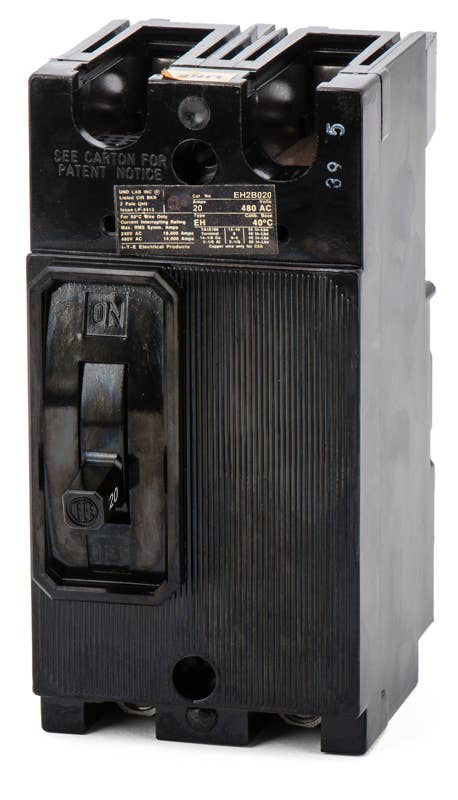

Siemens EH2B020 - 20A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial power systems, the Siemens EH2B020 is a 2-pole, 20A legacy molded case circuit breaker. It delivers consistent long-time and instantaneous trip functions for commercial facilities. This E-Frame breaker features a bolt-on mounting style designed for Siemens and ITE Type E2, F2, and P1 panelboards. It serves as a cross-reference to the newer ED42B020 substitute. Delivering an 18kAIC rating at 240VAC and 14kAIC at 480VAC, it includes standard load side lugs.Specifications
| Brand | Siemens |
|---|---|
| Part Number | EH2B020 |
| Series | EH |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens / ITE Panelboards (Type E2, F2, P1) |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat is the modern replacement for the legacy EH2B020 circuit breaker?
The Siemens ED42B020 is the direct modern substitute for the legacy EH2B020. It shares the same E-frame footprint and bolt-on mounting configuration for seamless installation in older panelboards.
Which panelboards are compatible with the EH2B020 breaker?
This bolt-on molded case circuit breaker is designed specifically for use in legacy Siemens and ITE Type E2, F2, and P1 panelboards. It is not compatible with standard residential load centers or DIN rail systems.
Can the EH2B020 be used in DC power applications?
Yes, this thermal-magnetic breaker is rated for up to 250VDC with a 10kA interrupting capacity. This makes it suitable for specific direct current systems alongside its standard 240VAC and 480VAC ratings.
What wire sizes are accepted by the load side lugs on this breaker?
The factory-installed lugs accept copper or aluminum conductors ranging from 14 AWG up to 1/0 AWG. Ensure proper torque specifications are followed during installation to maintain a secure and compliant connection.
Is the Siemens EH2B020 interchangeable with older ITE versions?
Yes, Siemens acquired ITE, and the current EH2B020 is an exact match and direct replacement for the older ITE-branded EH2B020 or EH2-B020 breakers.
Are the trip settings adjustable on the EH2B020?
No, this breaker features fixed thermal and fixed magnetic trip elements. The long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
