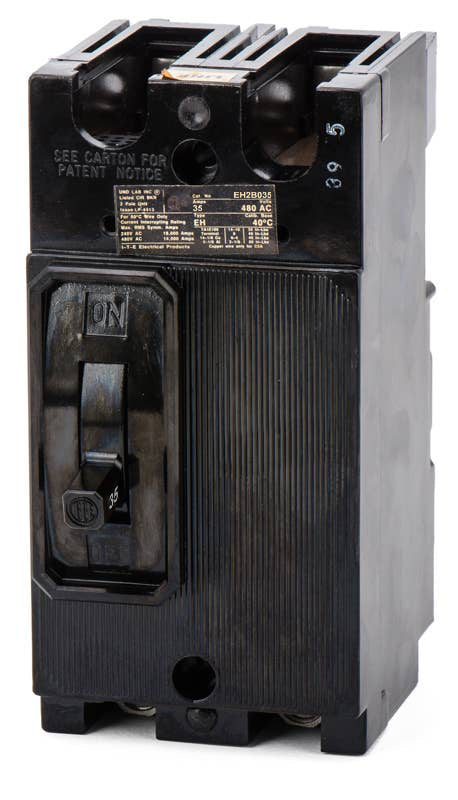

Siemens EH2B035 Molded Case Circuit Breaker
- 35A
- 2 Pole
- Bolt-On
Quantity
Siemens EH2B035 - 35A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Providing reliable overcurrent protection, the Siemens EH2B035 is a 35-amp, 2-pole molded case circuit breaker. It supports 240/480VAC and 250VDC applications with a sturdy bolt-on configuration. This E-Frame unit is tailored to fit classic Siemens and ITE enclosures, including Type E2, F2, and P1 panelboards. When transitioning to current-generation hardware, it is replaced by the ED42B035. Equipped with fixed thermal-magnetic trip elements, it achieves an 18kAIC rating at 240V.Specifications
| Brand | Siemens |
|---|---|
| Part Number | EH2B035 |
| Series | EH |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens / ITE Panelboards (Type E2, F2, P1) |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the EH2B035 breaker?
This bolt-on breaker is designed for use in Siemens and legacy ITE panelboards, specifically Type E2, F2, and P1 models.
What wire sizes are accepted by the terminals on this breaker?
The factory lugs accept wire gauges from 14 AWG up to 1/0 AWG. They are rated for both copper and aluminum conductors.
Is the EH2B035 rated for direct current applications?
Yes, this breaker carries a DC rating of 250VDC with an interrupting capacity of 10kA.
Can this breaker replace older ITE versions of the same frame?
Yes, Siemens acquired ITE and continues to support the EH frame. The Siemens EH2B035 serves as a direct replacement for legacy ITE breakers with the exact same catalog number.
Does this breaker feature adjustable trip settings?
No, the thermal magnetic trip unit has fixed long-time and fixed instantaneous trip functions. The trip points cannot be adjusted in the field.
