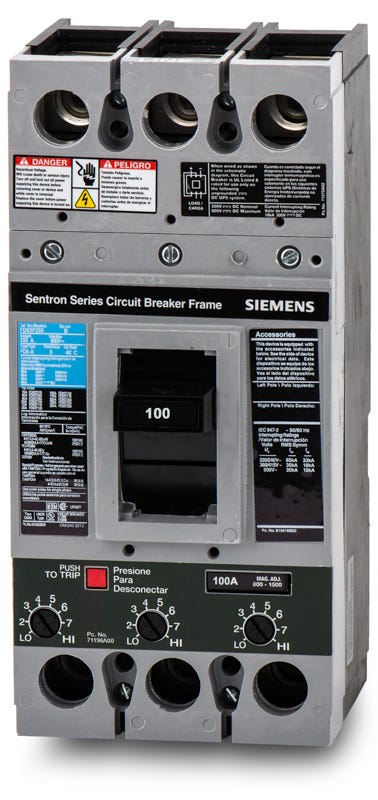

Siemens FD63B100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Siemens
FD63B100
Molded Case Circuit Breaker
Brand
Siemens
SKU
FD63B100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens FD63B100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens FD63B100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | FD63B100 |
| Series | FD6 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 18kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1 (Subfeed), P2, P3, P4, P5 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Quantity

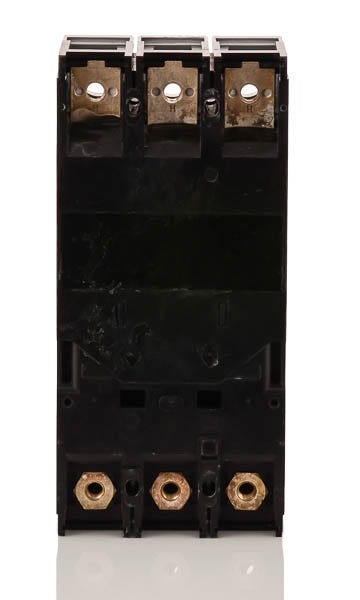

Siemens FD63B100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | FD63B100-R |
| Series | FD6 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 18kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1 (Subfeed), P2, P3, P4, P5 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
A core component of the Siemens Sentron lineup, the FD63B100 is a 3-pole, 100-amp molded case circuit breaker designed for reliable three-phase power distribution. It utilizes a thermal-magnetic trip mechanism to provide essential overcurrent protection. This unit-mount breaker is fully compatible with Siemens P1 through P5 panelboards and standard motor control centers. It includes factory-installed line and load lugs. Delivering a 35kAIC rating at 480VAC, it is HACR rated for HVAC equipment.Specifications
| Brand | Siemens |
|---|---|
| Part Number | FD63B100 |
| Series | FD6 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 18kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1 (Subfeed), P2, P3, P4, P5 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Product FAQs
6 answersWhat equipment is compatible with the FD63B100 breaker?
This unit-mount breaker is designed for use in Siemens P1 (as a subfeed), P2, P3, P4, and P5 panelboards, as well as compatible switchboards and motor control centers.
What wire sizes do the standard lugs on this breaker accept?
The standard lugs accommodate 6 AWG to 350 kcmil copper conductors, or 4 AWG to 350 kcmil aluminum conductors.
How is the trip unit configured on this Sentron FD-frame breaker?
It features a thermal-magnetic trip unit with fixed thermal protection for long-time overloads and an adjustable magnetic setting for instantaneous short-circuit protection.
Can I use the FD63B100 to replace an older ITE breaker with the same catalog number?
Yes. Siemens acquired ITE and continued manufacturing the Sentron series. A Siemens FD63B100 is a direct replacement for an older ITE FD63B100.
How does this breaker mount into the enclosure?
The FD63B100 is a unit-mount, or bolt-on, circuit breaker. It bolts directly to the equipment chassis or mounting pan rather than plugging into a busbar.
Is this breaker suitable for direct current applications?
Yes, this model is rated for DC systems up to 500VDC, providing an interrupting capacity of 18kA for direct current installations.
