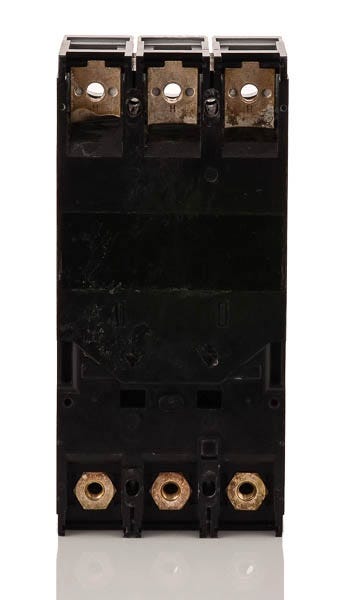

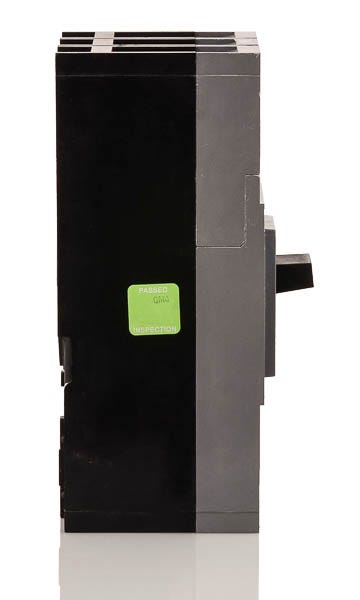

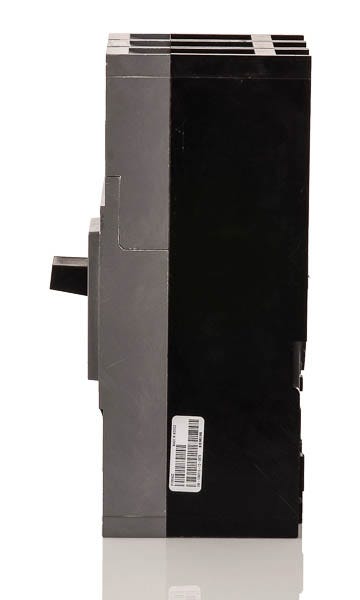

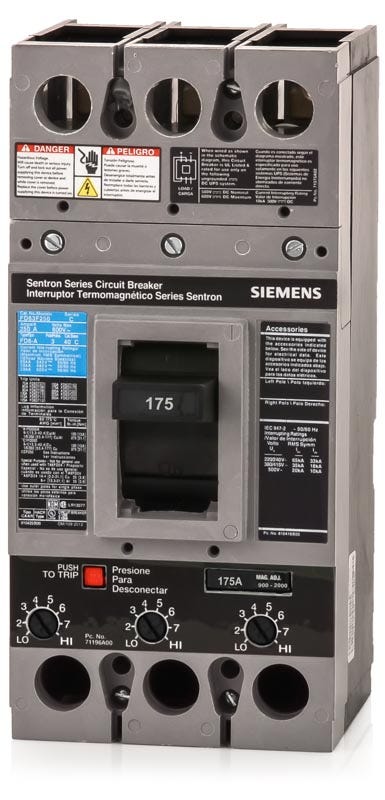

Siemens FD63B175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
Siemens
FD63B175
Molded Case Circuit Breaker
Brand
Siemens
SKU
FD63B175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens FD63B175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens FD63B175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | FD63B175 |
| Series | FD6 |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 18kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards (Types P1, P2, P3, P4, P5), Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TA1FD350A) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Trip-Free Mechanism |
Sold out
Quantity
Siemens FD63B175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | FD63B175 |
| Series | FD6 |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 18kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards (Types P1, P2, P3, P4, P5), Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TA1FD350A) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Trip-Free Mechanism |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Engineered for demanding industrial environments, the 175A Siemens FD63B175 delivers reliable long-time and instantaneous (LI) circuit protection via proven thermal-magnetic technology. The unit-mount configuration installs into Siemens Sentron P1 through P5 panelboards, switchboards, and MCCs. It substitutes for FXD63B175 fixed-trip breakers. Featuring an interchangeable trip unit with adjustable magnetic settings, this 3-pole breaker is rated 35kAIC at 480VAC. It includes TA1FD350A lugs.Specifications
| Brand | Siemens |
|---|---|
| Part Number | FD63B175 |
| Series | FD6 |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 18kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards (Types P1, P2, P3, P4, P5), Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TA1FD350A) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Trip-Free Mechanism |
Product FAQs
6 answersWhat is the adjustable magnetic trip range for the FD63B175?
The instantaneous magnetic trip setting on this breaker is adjustable between 900A and 2000A.
Which replacement lug kit is compatible with this breaker?
The standard replacement line and load lug kit for the FD6 frame is the Siemens TA1FD350A. A complete FD63B175 assembly typically includes these lugs.
What are the individual component part numbers for this assembled breaker?
The FD63B175 is a complete assembly that consists of the 250A rated FD63F250 frame, the 175A rated FD63T175 interchangeable trip unit, and TA1FD350A lugs.
What is the difference between the FD63B175 and FXD63B175?
The FD63B175 includes an interchangeable trip unit, which allows the trip mechanism to be removed or replaced without changing the breaker frame. The FXD63B175 has a fixed, non-interchangeable trip unit. Both breakers share the same physical footprint and panel compatibility.
Can I use the FD63B175 to replace an obsolete ITE breaker?
Yes. Siemens acquired ITE, and current Sentron FD6 series breakers serve as direct drop-in replacements for legacy ITE and Gould F-frame circuit breakers with matching specifications.
How do you adjust the instantaneous trip point on the FD6 trip unit?
The instantaneous magnetic trip adjustment is made through the front cover of the breaker. Simply depress the indicating knob on the trip unit and rotate it to the desired trip position.
