Siemens FJ63B110 Molded Case Circuit Breaker
- 110A
- 3 Pole
- Bolt-On
Siemens
FJ63B110
Molded Case Circuit Breaker
Brand
Siemens
SKU
FJ63B110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

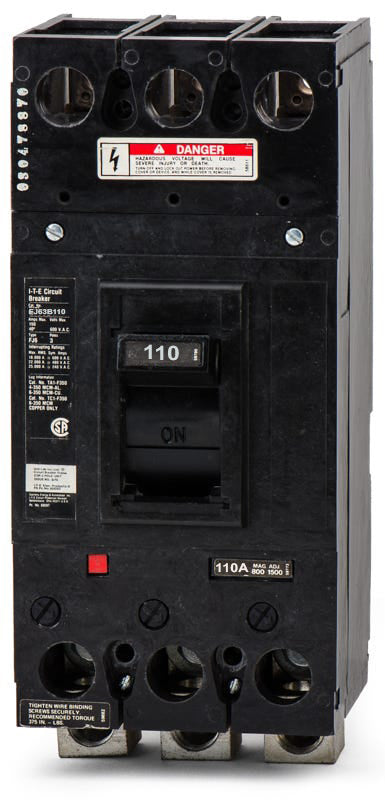

Siemens FJ63B110 - 110A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker

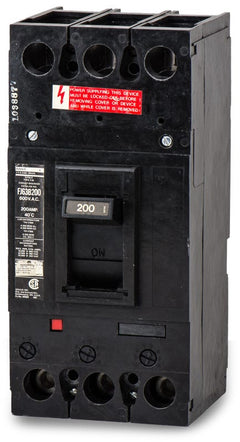

200A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power distribution, the Siemens FJ63B110 is a 110A, 3-pole molded case circuit breaker. It provides essential LI trip functions for commercial facilities. Designed for bolt-on mounting, this unit fits perfectly into Siemens P1, P2, and P3 panelboards, along with SB switchboards and legacy I-T-E F-Frame enclosures. It can be replaced by the newer FXD63B110 model. The breaker features a 25kAIC rating at 240VAC and includes load side lugs.Specifications
| Brand | Siemens |
|---|---|
| Part Number | FJ63B110 |
| Series | FJ6 |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FJ63 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, I-T-E F-Frame Panelboards |
| Wire Gauge | 6 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
4 answersWhich panelboards and switchboards are compatible with the FJ63B110?
This breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as SB switchboards. It is also backward compatible with legacy I-T-E F-Frame panelboards.
What wire sizes are accepted by the lugs on the FJ63B110?
The factory-installed lugs accept wire gauges from 6 AWG up to 350 kcmil. They are rated for both copper (Cu) and aluminum (Al) conductors.
Does the FJ63B110 feature an adjustable trip unit?
Yes, it utilizes a thermal magnetic trip unit with a fixed thermal element for long-time overload protection and an adjustable magnetic element for instantaneous short-circuit protection.
Can I use the FJ63B110 to replace an older I-T-E 110A F-Frame breaker?
Yes. Siemens acquired I-T-E and continued the F-Frame product line. The FJ63B110 serves as a direct bolt-on replacement for legacy I-T-E breakers with the same frame size and specifications.
