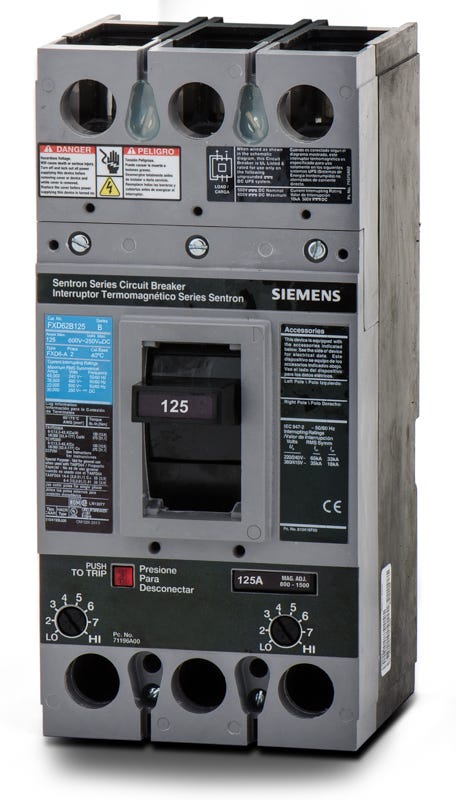

Siemens FXD62B125 Molded Case Circuit Breaker
- 125A
- 2 Pole
- Unit Mount
Siemens
FXD62B125
Molded Case Circuit Breaker
Brand
Siemens
SKU
FXD62B125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens FXD62B125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens FXD62B125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | FXD62B125 |
| Series | FXD6 |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, SB Switchboards, Motor Control Centers |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Rotary Handle, Motor Operator |
|---|---|
| Accessories | None included (Lugs sold separately) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens FXD62B125 - 125A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | FXD62B125-R |
| Series | FXD6 |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, SB Switchboards, Motor Control Centers |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Rotary Handle, Motor Operator |
|---|---|
| Accessories | None included (Lugs sold separately) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
110A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
Description
Engineered for robust applications, the Siemens FXD62B125 is a 2-pole, 125A molded case circuit breaker from the Sentron FD frame family. This unit mount breaker installs into Siemens P1 through P5 panelboards, SB switchboards, and motor control centers. It serves as a reliable replacement for legacy F-Frame breakers. Rated for 35kAIC at 480VAC, it features a non-interchangeable thermal magnetic trip unit. It is HACR rated and supplied without lugs for custom wiring.Specifications
| Brand | Siemens |
|---|---|
| Part Number | FXD62B125 |
| Series | FXD6 |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, SB Switchboards, Motor Control Centers |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Rotary Handle, Motor Operator |
|---|---|
| Accessories | None included (Lugs sold separately) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat enclosures and panelboards are compatible with the FXD62B125?
This unit mount breaker installs directly into Siemens P1, P2, P3, P4, and P5 panelboards, as well as SB switchboards and motor control centers.
Which lug kit is recommended for the FXD62B125 circuit breaker?
The Siemens TA1FD350A lug kit is compatible with this FD frame breaker. It accepts wire sizes from 6 AWG to 350 kcmil for both copper and aluminum conductors. Note that this breaker is typically supplied without lugs installed.
What is the magnetic trip adjustment range for this breaker?
The FXD62B125 features a fixed thermal and adjustable magnetic trip unit. The instantaneous magnetic trip range can be adjusted from 800A to 1500A.
Can the FXD62B125 be reverse fed?
Yes, Siemens Sentron FD frame molded case circuit breakers are UL listed for reverse feed applications.
Is the FXD62B125 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
Does the FXD62B125 have an interchangeable trip unit?
No, the FXD6 series features a non-interchangeable thermal magnetic trip unit.
