Siemens FXD63B080 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Unit Mount
Siemens
FXD63B080
Molded Case Circuit Breaker
Brand
Siemens
SKU
FXD63B080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

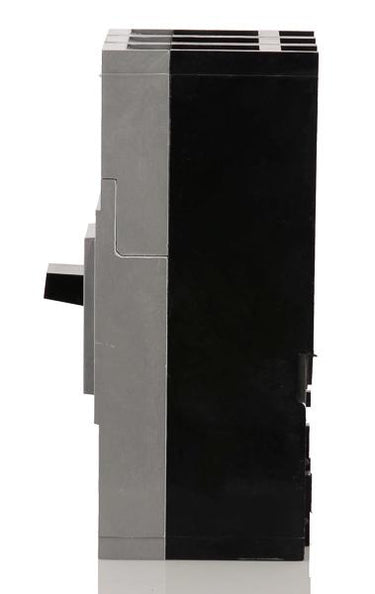

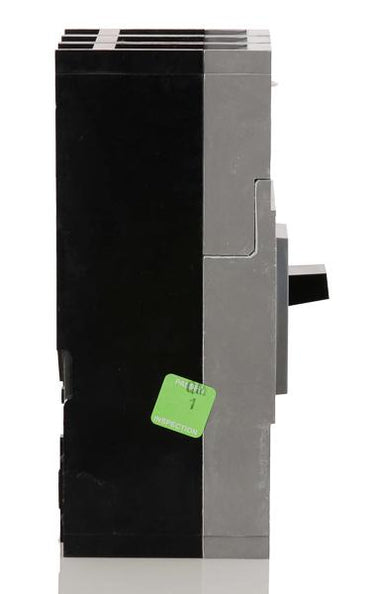

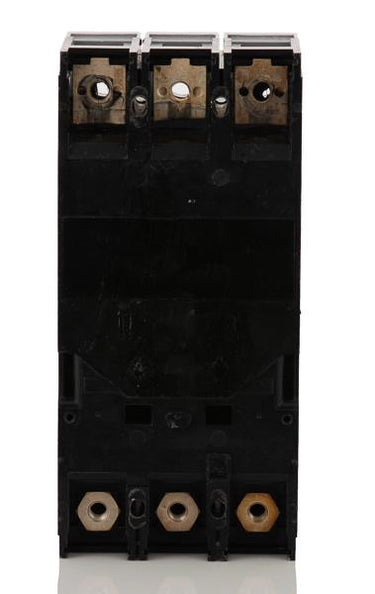

Siemens FXD63B080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens FXD63B080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Series | FXD6 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC, 18kA @ 500VDC |
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, SB Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs Not Included (Requires Lug Kit TA1FD350A) |
| Standards | HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens FXD63B080 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | FXD6 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC, 18kA @ 500VDC |
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, SB Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs Not Included (Requires Lug Kit TA1FD350A) |
| Standards | HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
90A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Delivering 65 kAIC of interrupt capacity at 240V, the Siemens FXD63B080 is a rugged 3-pole, 80A molded case circuit breaker designed for demanding commercial environments. As part of the Sentron FD frame series, it mounts into Siemens P1 through P5 panelboards, SB switchboards, and motor control centers. It provides precise overcurrent protection via its fixed thermal and adjustable magnetic trip unit. Line and load lugs are sold separately for this unit mount breaker.Specifications
| Brand | Siemens |
|---|---|
| Series | FXD6 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC, 18kA @ 500VDC |
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, SB Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs Not Included (Requires Lug Kit TA1FD350A) |
| Standards | HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat enclosures and panelboards are compatible with the FXD63B080 breaker?
This 3-pole FD-frame breaker is designed for installation in Siemens P1, P2, P3, P4, and P5 panelboards. It is also compatible with SB switchboards and motor control centers.
What are the accepted wire sizes and materials for the lugs on this breaker?
The factory terminal lugs accept conductor sizes ranging from 6 AWG up to 350 kcmil. They are rated for use with both copper (Cu) and aluminum (Al) wire.
How does the adjustable magnetic trip function operate on the FXD63B080?
The continuous thermal rating is fixed at 80 amps to provide long-time overcurrent protection, while the magnetic trip is adjustable. This allows electricians to fine-tune the instantaneous short-circuit pickup level for better coordination with other protective devices.
Is the FXD63B080 rated for direct current (DC) applications?
Yes, in addition to its AC ratings, this Sentron breaker is approved for DC electrical systems. It provides an interrupting capacity of 30kA at 250VDC and 18kA at 500VDC.
What is the current generation replacement for the FXD63B080?
The Siemens 3VA5 series, specifically the 3VA5280-5ED31-0AA0, serves as the modern replacement for legacy FXD63B080 units. Note that retrofitting the new 3VA breaker into P1, P2, or P3 panelboards will require an appropriate strap kit.
What does the letter B designate in the FXD63B080 catalog number?
The B in the part number indicates that the breaker is equipped with a standard thermal-magnetic trip unit that is calibrated for a 40 degrees Celsius ambient operating temperature.
