Siemens FXD63B225L Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Siemens
FXD63B225L
Molded Case Circuit Breaker
Brand
Siemens
SKU
FXD63B225L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

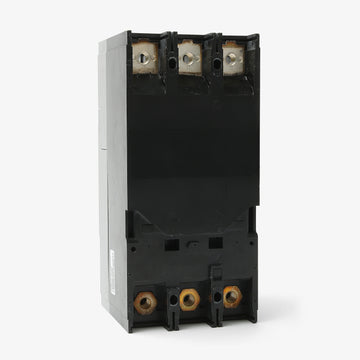

Siemens FXD63B225L - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens FXD63B225L - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | FXD63B225L |
| Series | FXD6 |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC, 18kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards, Enclosures |
| Wire Gauge | 6 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens FXD63B225L - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | FXD63B225L |
| Series | FXD6 |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC, 18kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards, Enclosures |
| Wire Gauge | 6 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Designed for industrial power distribution, the Siemens FXD63B225L is a 3-pole, 225A molded case circuit breaker. This FD frame unit mounts into Siemens Sentron P1, P2, and P3 panelboards, switchboards, and enclosures. For modern upgrades, it is replaced by the 3VA5222-5EC31-0AA0 model, which requires a panelboard mounting kit. Rated 35kAIC at 480VAC, it features a non-interchangeable thermal-magnetic trip unit and includes line and load lugs for immediate installation.Specifications
| Brand | Siemens |
|---|---|
| Part Number | FXD63B225L |
| Series | FXD6 |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC, 18kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards, Enclosures |
| Wire Gauge | 6 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat equipment is compatible with the FXD63B225L circuit breaker?
This 225A FD-frame breaker is designed for installation in Siemens Sentron P1, P2, and P3 panelboards, as well as compatible switchboards and standalone enclosures.
Are lugs included with the FXD63B225L, or do they need to be ordered separately?
The L suffix in the catalog number indicates that line and load lugs (TA1FD350A) are included and factory-installed. These lugs accept 6 AWG to 350 kcmil copper or aluminum conductors.
What is the difference between the FXD63B225 and the FXD63B225L?
The FXD63B225 is the base breaker supplied without lugs. The FXD63B225L is the fully assembled version that includes factory-installed line and load lugs.
Can the trip unit on the FXD63B225L be changed in the field?
No, this breaker features a non-interchangeable thermal-magnetic trip unit. While the magnetic trip is adjustable, the overall trip unit cannot be swapped for a different amperage.
What type of protection does the FXD63B225L provide?
It provides Long-Time (L) and Instantaneous (I) protection against overloads and short circuits using a thermal-magnetic trip mechanism. The thermal element is fixed, while the magnetic trip is adjustable to suit specific application needs.
