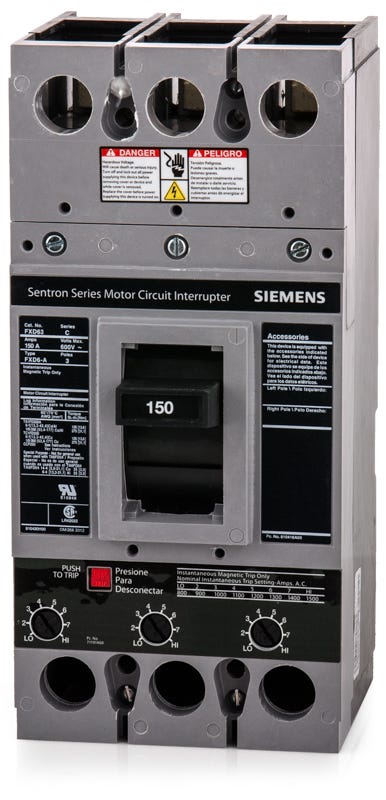

Siemens FXD63H150L Motor Circuit Protector
- 150A
- 3 Pole
- Unit Mount
Quantity
Siemens FXD63H150L - 150A 3 Pole Motor Circuit Protector
New
Quantity
Description
Engineered for motor branch circuits, this FD-frame unit features an adjustable high-range magnetic trip. The assembly includes factory-installed TA1FD350A line and load lugs for immediate integration into Siemens motor control centers and enclosures. Delivering 35 kAIC at 480VAC, the 150-amp protector allows fine-tuning of the instantaneous trip between 1100A and 2500A. This non-interchangeable trip design ensures precise coordination with motor starters and overload relays.Specifications
| Brand | Siemens |
|---|---|
| Part Number | FXD63H150L |
| Series | FXD6 |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC |
| Amperage Range | 150A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Motor Control Centers, Enclosures |
| Wire Gauge | 6 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line & Load Lugs (TA1FD350A) |
| Standards | IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Motor Circuit Protector, Non-Interchangeable Trip |
