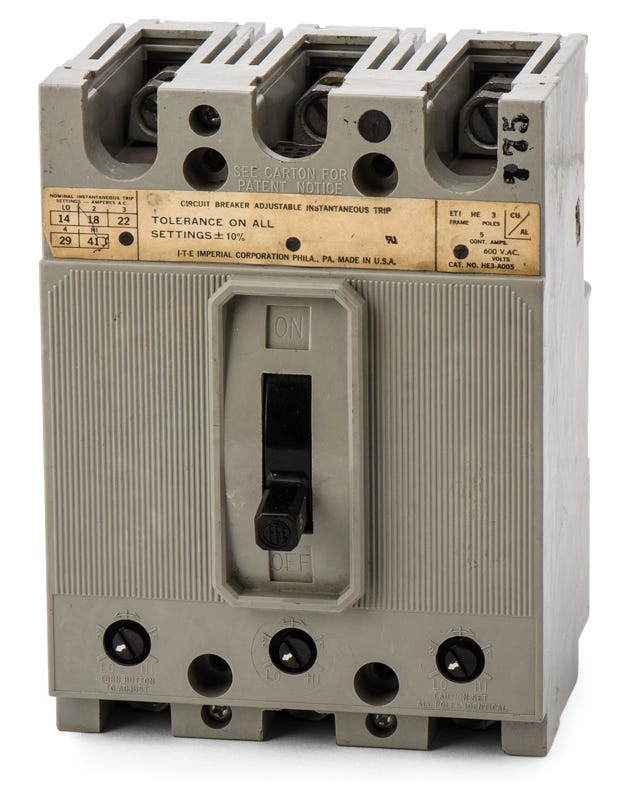

Siemens / ITE HE3A005 Motor Circuit Protector
- 5A
- 3 Pole
- Bolt-On
Quantity
Siemens / ITE HE3A005 - 5A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Description
Designed exclusively for motor branch circuits, this 5A instantaneous-trip protector clears faults up to 65kA at 240V. It mounts securely into vintage ITE and Siemens motor control centers, offering a precise physical match for aging infrastructure. Maintenance teams rely on this specific E-frame profile to restore equipment without modifying existing buswork. While the ED63A005 is the modern substitute, this legacy component ensures immediate compatibility for older systems.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | HE3A005-R |
| Series | HE |
| Amperage | 5A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 15-50A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Motor Control Centers, Combination Motor Starters |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, High Interrupting Capacity |
