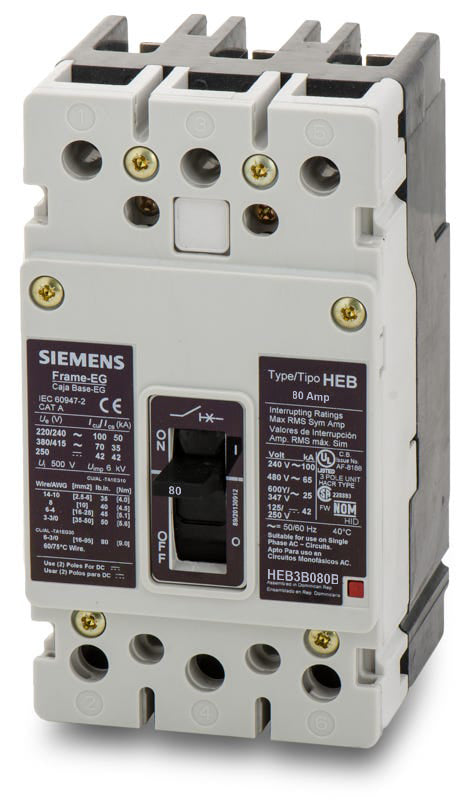

Siemens HEB3B080B Molded Case Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Siemens
HEB3B080B
Molded Case Circuit Breaker
Brand
Siemens
SKU
HEB3B080B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HEB3B080B - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Siemens HEB3B080B - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HEB3B080B |
| Series | HEB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 125/250VDC |
| Frame Type | HEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P3, P4, P5 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included (TA1EG10) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Sold out
Quantity
Siemens HEB3B080B - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HEB3B080B |
| Series | HEB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 125/250VDC |
| Frame Type | HEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P3, P4, P5 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included (TA1EG10) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Similar Items
60A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Siemens HEB3B080B provides reliable thermal-magnetic overcurrent protection. This 3-pole, 80A device is part of the proven NEB/HEB frame group, offering robust performance for demanding electrical systems. It mounts into Siemens P3, P4, and P5 panelboards using a secure bolt-on connection. For facility maintenance, note that this unit is replaced by the HEG3B080B model. Rated for 65kAIC at 480VAC, it includes factory-installed load side lugs.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HEB3B080B |
| Series | HEB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 125/250VDC |
| Frame Type | HEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P3, P4, P5 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included (TA1EG10) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Product FAQs
9 answersWhich Siemens panelboards accept the HEB3B080B circuit breaker?
This bolt-on molded case circuit breaker is designed specifically for installation in Siemens P3, P4, and P5 commercial panelboards.
Can the HEB3B080B be installed in a standard residential load center?
No. The HEB3B080B is a commercial bolt-on branch breaker. It lacks the plug-on mounting design required for standard residential load centers.
What is the difference between the Siemens NEB and HEB breaker frames?
Both belong to the same physical frame group, but the HEB series features a higher interrupting capacity for systems requiring higher fault current ratings.
Why does the HEB3B080B only include lugs on one side?
As a bolt-on breaker, the line side mounts directly to the panelboard bus with bolts. It only requires and includes factory-installed lugs on the load side for wire termination.
Can I use both copper and aluminum wire with the standard lugs?
Yes, the factory-installed load lugs accept both copper and aluminum conductors. The accepted wire range is 14 to 1/0 AWG for copper and 12 to 1/0 AWG for aluminum.
Is the HEB3B080B circuit breaker rated for reverse feeding?
Yes, this model features a reverse-feed capable design, meaning it can be wired with the line or load on either set of terminals without compromising its protective functions.
Is there a newer catalog replacement for the HEB3B080B?
Yes, for facility maintenance and panel upgrades, the older HEB3B080B is frequently superseded by the newer Siemens HEG3B080B model.
Can this breaker be used to protect HVAC equipment?
Yes, the HEB3B080B is HACR rated, making it fully approved for use with heating, air conditioning, and refrigeration equipment that requires an 80-amp breaker.
Does the HEB3B080B feature a trip-free mechanism?
Yes, it includes a trip-free mechanism that ensures the breaker will trip during an overcurrent event or short circuit, even if the operating handle is physically held in the ON position.
