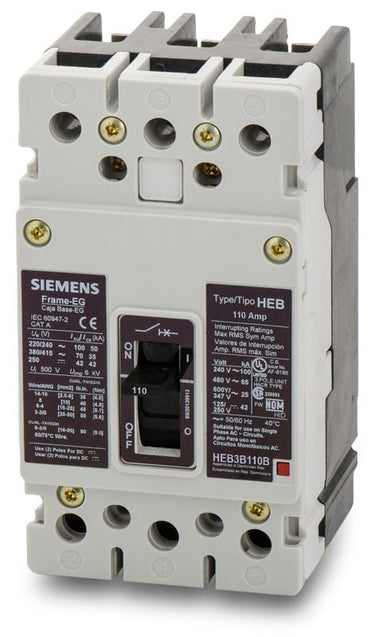

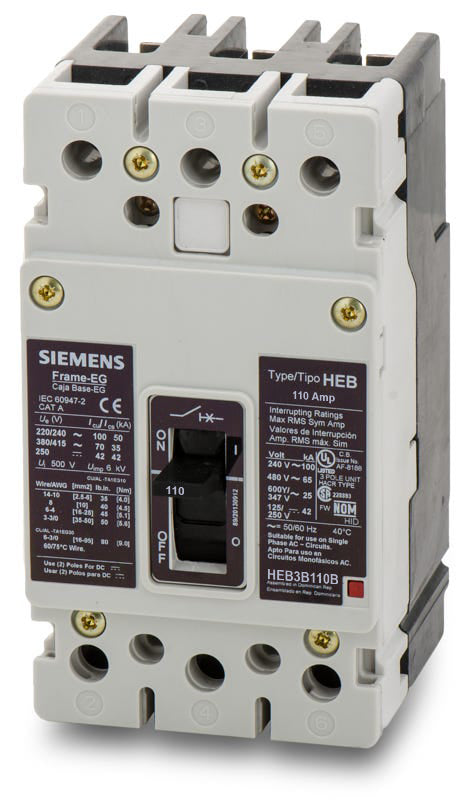

Siemens HEB3B110B Molded Case Circuit Breaker
- 110A
- 3 Pole
- Bolt-On
Siemens
HEB3B110B
Molded Case Circuit Breaker
Brand
Siemens
SKU
HEB3B110B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HEB3B110B - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
Description
Engineered for robust power distribution, the Siemens HEB3B110B is a 3-pole, 110A molded case circuit breaker. It utilizes a thermal-magnetic trip mechanism for precise long-time and instantaneous protection. This bolt-on breaker fits securely into Siemens P3, P4, and P5 panelboards. It comes equipped with load-side lugs and is replaced by the HEG3B110B. With an interrupting capacity of 65 kAIC at 480VAC, it ensures superior safety.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HEB3B110B |
| Series | HEB |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 125/250VDC |
| Frame Type | HEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P3, P4, P5 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (3TA1EG10) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Product FAQs
6 answersWhich Siemens panelboards are compatible with the HEB3B110B circuit breaker?
This bolt-on branch breaker is specifically designed to mount in Siemens Sentron P3, P4, and P5 commercial panelboards.
Are load-side lugs included with the HEB3B110B, and what is their wire capacity?
Yes, this model typically comes equipped with TA1EG10 load-side lugs. These lugs accept 14 AWG to 1/0 AWG copper or aluminum conductors. Since it is a bolt-on breaker, the line side connects directly to the panelboard bus.
What type of trip unit is installed in the HEB3B110B?
It features a non-adjustable thermal-magnetic trip unit. The "LI" trip function code indicates it provides standard, fixed Long-Time (thermal overload) protection and fixed Instantaneous (magnetic short-circuit) protection.
Can the HEB3B110B be utilized in DC power applications?
Yes. In addition to its standard AC voltage ratings, this breaker is certified for DC power systems, providing up to a 42 kA interrupting rating at 125/250VDC.
What is the difference between the Siemens HEB3B110B and the NEB3B110B?
Both are 110-amp, 3-pole EG-frame panelboard breakers. However, the HEB3B110B is the high-interrupting capacity model (rated 65 kAIC at 480VAC), whereas the NEB3B110B is the standard-capacity model (rated 35 kAIC at 480VAC).
Which overall frame family does the HEB3B110B belong to?
The HEB3B110B is part of the Siemens Sentron series and falls under the global EG-frame classification.
