Siemens HED41B025 Molded Case Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
Siemens
HED41B025
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED41B025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

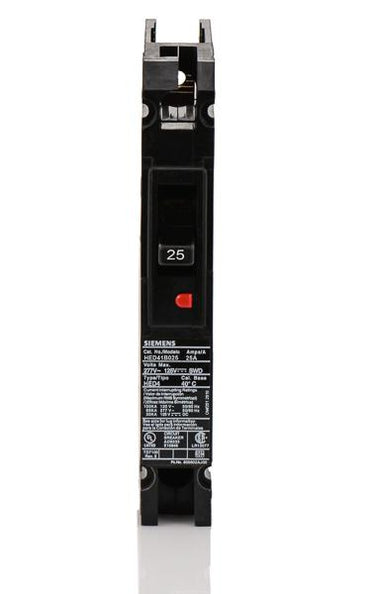

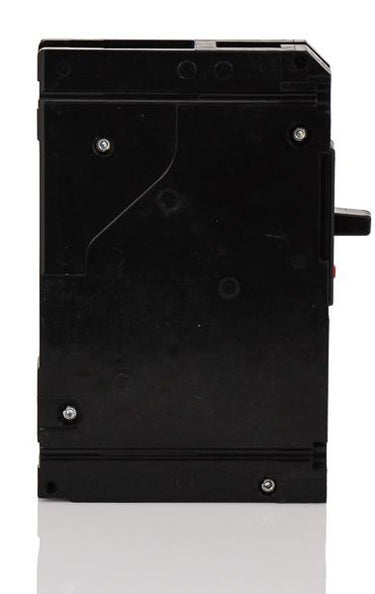

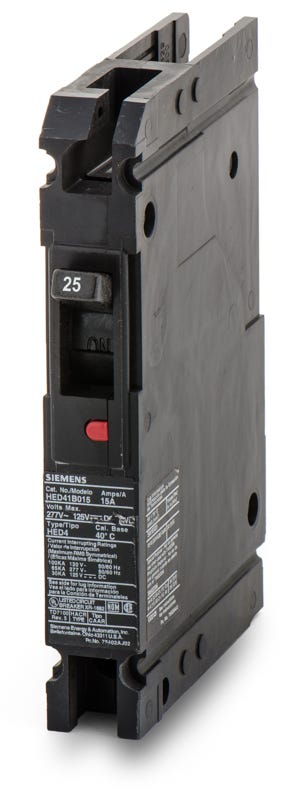

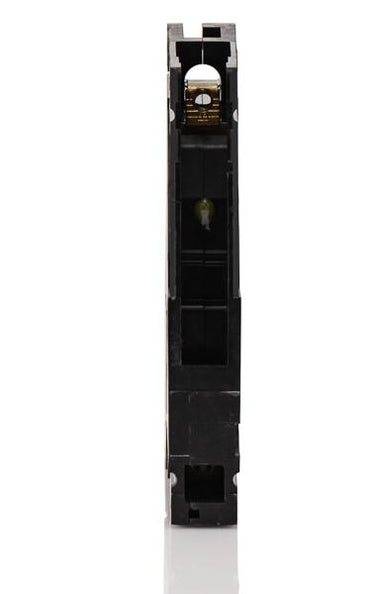

Siemens HED41B025 - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HED41B025 - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED41B025 |
| Series | HED4 |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 240VAC, 65kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, SB Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens HED41B025 - 25A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED41B025-R |
| Series | HED4 |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 240VAC, 65kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, SB Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Similar Items
15A 1 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
Description
Delivering high interrupting capacity for commercial systems, this 25-amp bolt-on circuit breaker ensures dependable overcurrent protection. It mounts into Siemens Sentron panelboards and SB switchboards, utilizing a secure bolted connection for demanding environments. The unit achieves a 65kAIC rating at 277VAC and includes load side lugs for standard wire terminations. For modern panel upgrades, Siemens designates the 3VA5125-6EC11-0AA0 as the recommended replacement with a strap kit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED41B025 |
| Series | HED4 |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 240VAC, 65kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, SB Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat type of panels accept the HED41B025 circuit breaker?
This ED frame breaker is designed specifically for commercial and industrial Siemens Sentron panelboards and SB switchboards. It is not compatible with standard residential load centers.
What are the acceptable wire sizes for the standard lugs on this breaker?
The factory-installed lugs accept 14 to 10 AWG copper conductors or 12 to 10 AWG aluminum conductors.
Can the HED41B025 be utilized in direct current systems?
Yes, this model is rated for use in DC applications up to 125VDC, where it provides an interrupting capacity of 30kA.
Does this breaker provide equipment ground fault protection?
No. This is a standard thermal magnetic breaker equipped with fixed long-time and instantaneous trip functions. It does not contain ground fault or arc fault sensing capabilities.
Are the trip curves on the HED41B025 field adjustable?
No, this breaker features fixed thermal and fixed magnetic trip elements. Neither the continuous current nor the instantaneous pickup can be adjusted.
What does the H in the HED41B025 part number indicate?
The H designates this as a high-interrupting version of the standard ED4 frame. This specific single-pole model achieves a 65kA interrupting rating at 277VAC.
