Siemens HF327NR Safety Switch
Quantity
Core Specs
See full specs
Siemens HF327NR Safety Switch
New
Quantity
Description
Siemens HF327NR Safety Switch

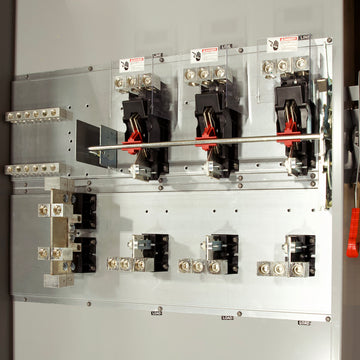

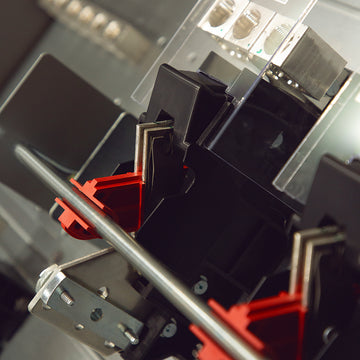

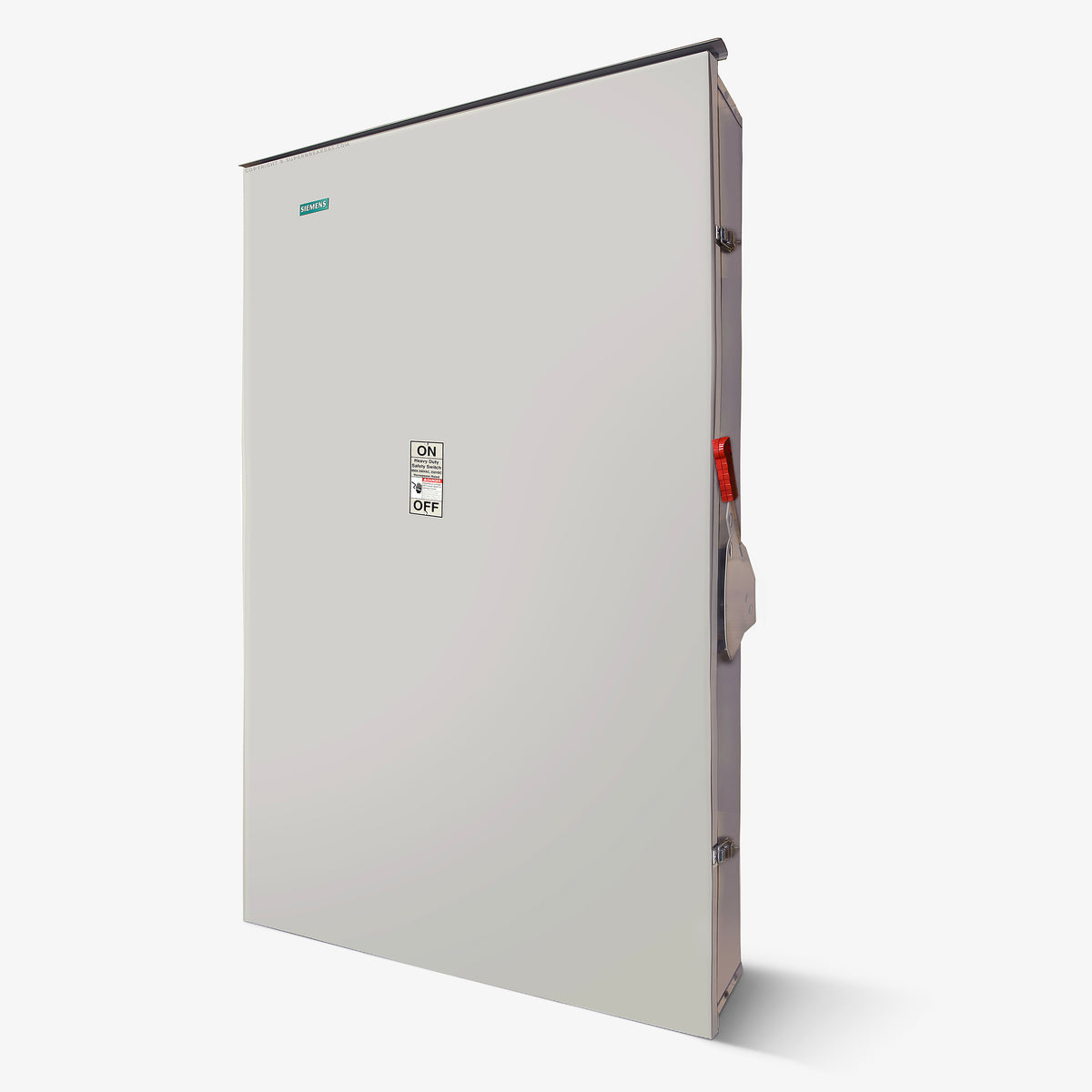

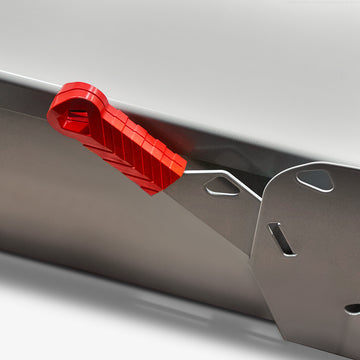

The Siemens HF327NR is a 3 Pole safety switch with a current rating of 800 Amps and a voltage rating of 240VAC, 250VDC. It has an interrupting rating of 200kAIC at 240V. The HF327NR has a surface mounting type and it is used for outdoor, residential, commercial and industrial applications.
Specifications
| Duty Rating | Heavy Duty |
|---|---|
| Fusibility | Fusible |
| Amperage | 800 A |
| Voltage | 240VAC, 250VDC |
| Poles | 3 |
|---|---|
| Phase | 3 |
| Interrupting Rating | 200kAIC at 240V |
| Mounting Type | Surface |
|---|---|
| Frame Type | HF |
| For Use With | Class L Fuse |
| Configuration | Single |
| Number Of Wires | 4 |
| NEMA Rating | 3R |
|---|
| Series | VBII |
|---|---|
| Brand | Siemens |
