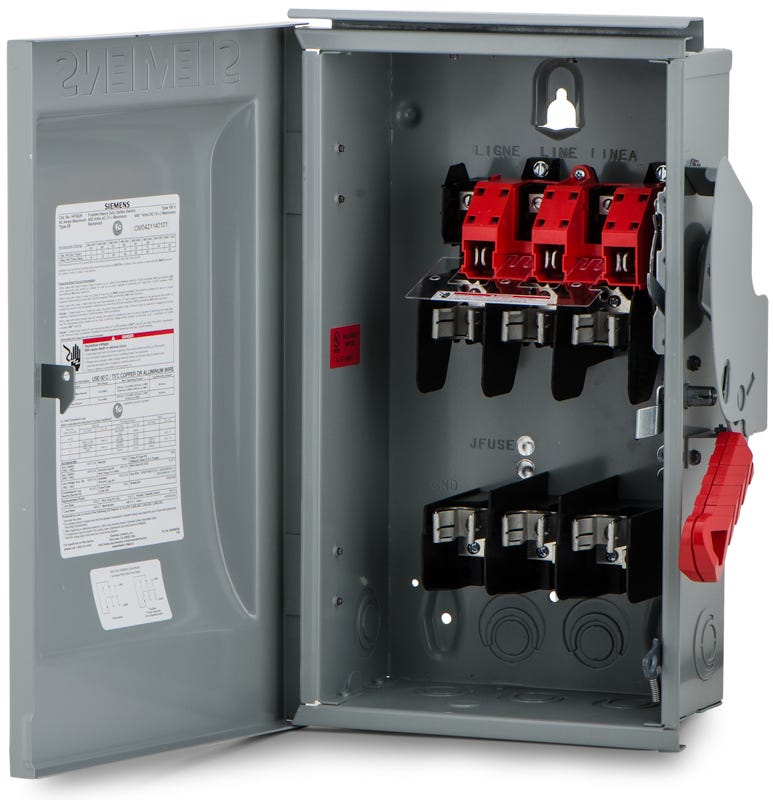

• Authentic Siemens / ITE Product • UPC : 783643151307 • Heavy Duty Safety • 480/600 V Ac Voltage • 250/600 V Dc Voltage • 100 Ampere • Power Rating 10 Hp At 480 Vac 1 Phase 25 Hp At 480 Vac 3 Phase 15 Hp At 600 Vac 1 Phase 30 Hp At 600 Vac 3 Phase (Standard) • 30 Hp At 480 Vac 1 Phase 60 Hp At 480 Vac 3 Phase 40 Hp At 600 Vac 1 Phase 75 Hp At 600 Vac 3 Phase (Maximum For Time Delay Fuse) • 20 Hp At 250 Vdc 25 Hp At 600 Vdc • 3 Pole • 3 Wire • Class H/J/K/R/T Fuse • Fusible Fuse • No Neutral • Nema 3R • Size 11.97 Inch W X 10.17 Inch D X 23.46 Inch H • Approval Ul • Speedfax[T] Brand • Hf Model
Specifications
Brand
Siemens
Series
HF
Nema Rating
Nema 3R
Duty Rating
Heavy Duty
Fusibility
Fusible
Mpn
HF363R
Upc
783643151307
Gtin
783643151307
