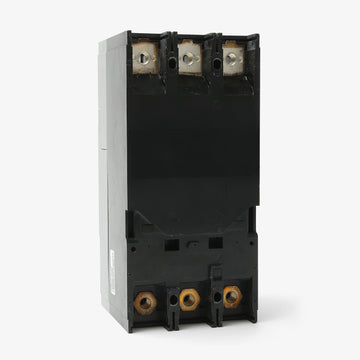

Siemens HFD63B175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Bolt-On
Siemens
HFD63B175
Molded Case Circuit Breaker
Brand
Siemens
SKU
HFD63B175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HFD63B175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HFD63B175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HFD63B175 |
| Series | HFD6 |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG-350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Trip-Free Mechanism, Quick-Make/Quick-Break |
Quantity
Siemens HFD63B175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HFD63B175-R |
| Series | HFD6 |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG-350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Trip-Free Mechanism, Quick-Make/Quick-Break |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Designed for commercial electrical systems, the Siemens HFD63B175 175A, 3-pole molded case circuit breaker provides dependable thermal-magnetic protection. As part of the Sentron FD frame family, it features fixed thermal and adjustable magnetic settings. This breaker connects into Siemens Sentron panelboards and motor control centers using a standard bolt-on mounting style. Load side lugs are included. It boasts a high interrupting capacity of 65 kAIC at 480VAC and is fully HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HFD63B175 |
| Series | HFD6 |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG-350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
7 answersWhat types of equipment are compatible with the HFD63B175?
This FD-frame breaker is designed for installation in Siemens Sentron panelboards, switchboards, and motor control centers.
Does the HFD63B175 feature an adjustable trip setting?
Yes, it features a thermal-magnetic trip unit with a fixed thermal element and an adjustable magnetic (instantaneous) setting. This allows you to fine-tune short-circuit protection and improve system coordination.
Can the Siemens HFD63B175 be reverse fed?
No. Because this breaker features an interchangeable trip unit, it is marked with LINE and LOAD designations to comply with UL 489 standards and cannot be reverse fed. For reverse-feed applications, a non-interchangeable frame is required.
Is the Siemens HFD63B175 a direct replacement for an ITE HFD63B175?
Yes. Siemens acquired ITE and continues to manufacture the Sentron FD-frame breakers under the Siemens brand. The HFD63B175 is the exact same form factor and a direct replacement for the older ITE-branded version.
Are line and load lugs included with this breaker?
Yes, this breaker comes complete with standard line and load lugs that accept 6 AWG to 350 kcmil copper or aluminum wire.
What does the H in the HFD63B175 catalog number indicate?
The H designates this as a High Interrupting capacity breaker within the FD frame family. It provides a 65kA interrupting rating at 480V AC and 100kA at 240V AC, which is higher than standard FD6 breakers.
Can I change the amperage of this breaker later without replacing the whole unit?
Yes. The HFD63B175 comes with an interchangeable trip unit. If your load requirements change, you can swap the trip unit for a different amperage within the 250A maximum FD frame limit without removing the breaker frame from the panel.
