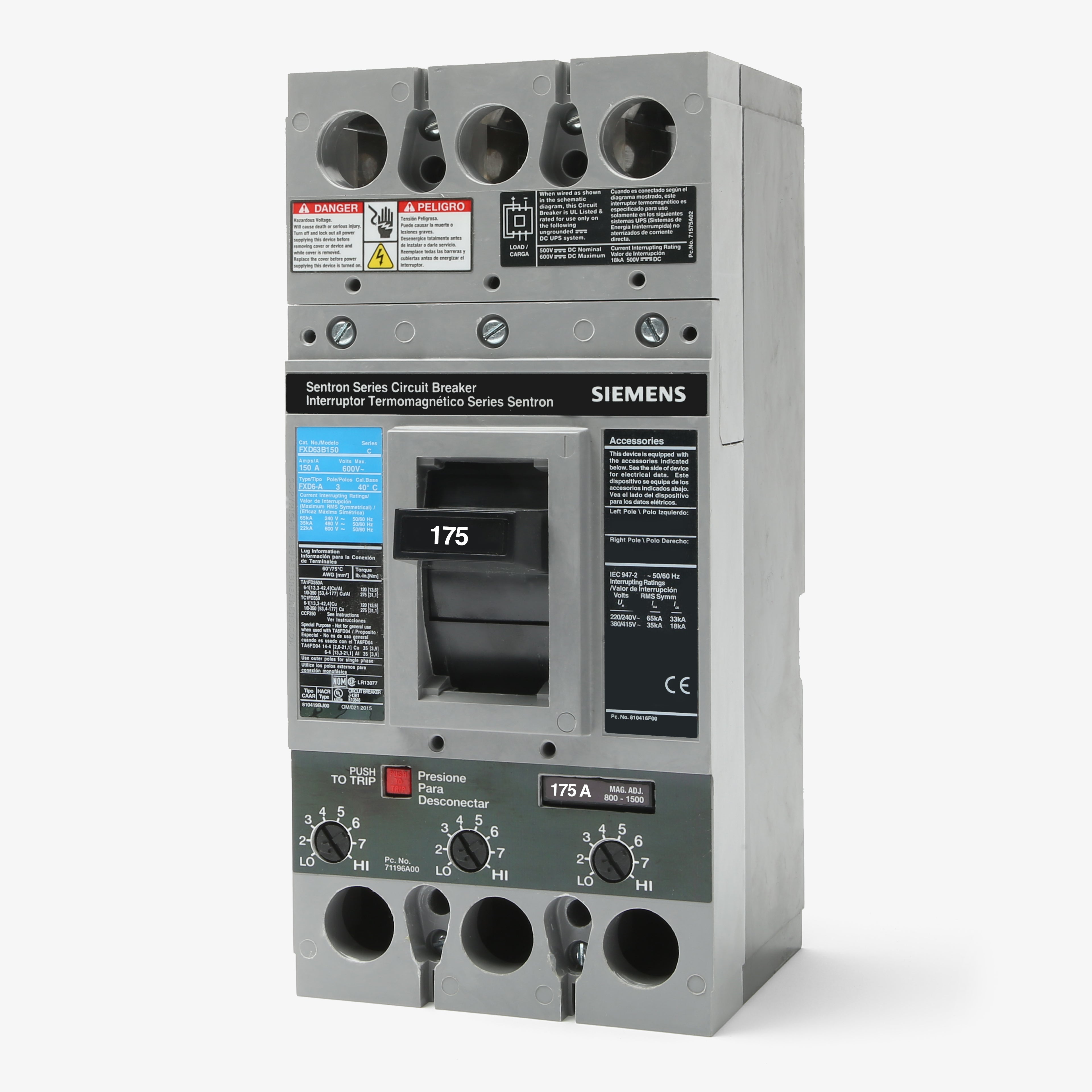

Siemens HFD63B175L - 175A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU HFD63B175L
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Siemens HFD63B175L - 175A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU HFD63B175L
Select Item Condition
Earn 1391 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Siemens HFD63B175L - 175A 3 Pole Molded Case Circuit Breaker

New

$1391.27 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

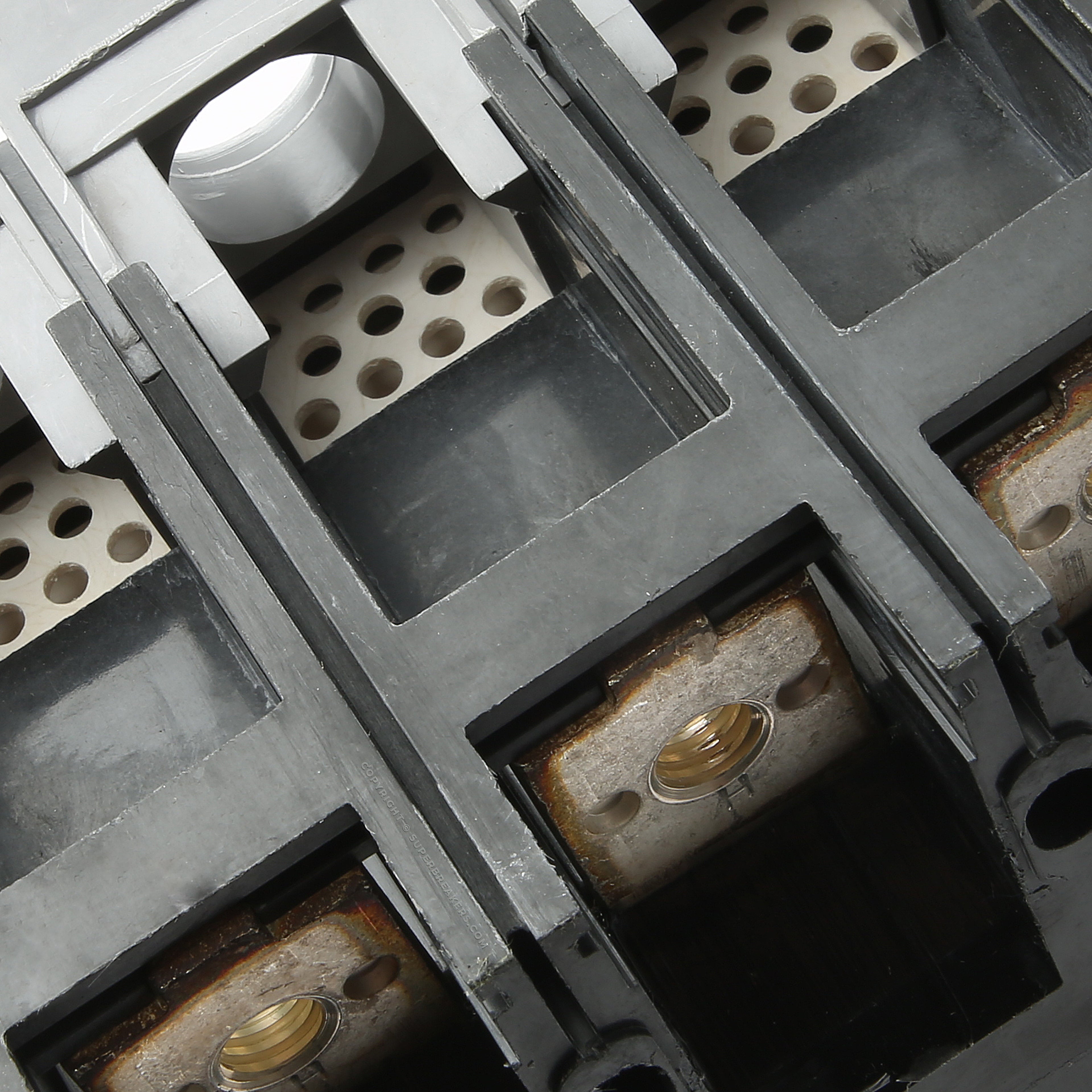

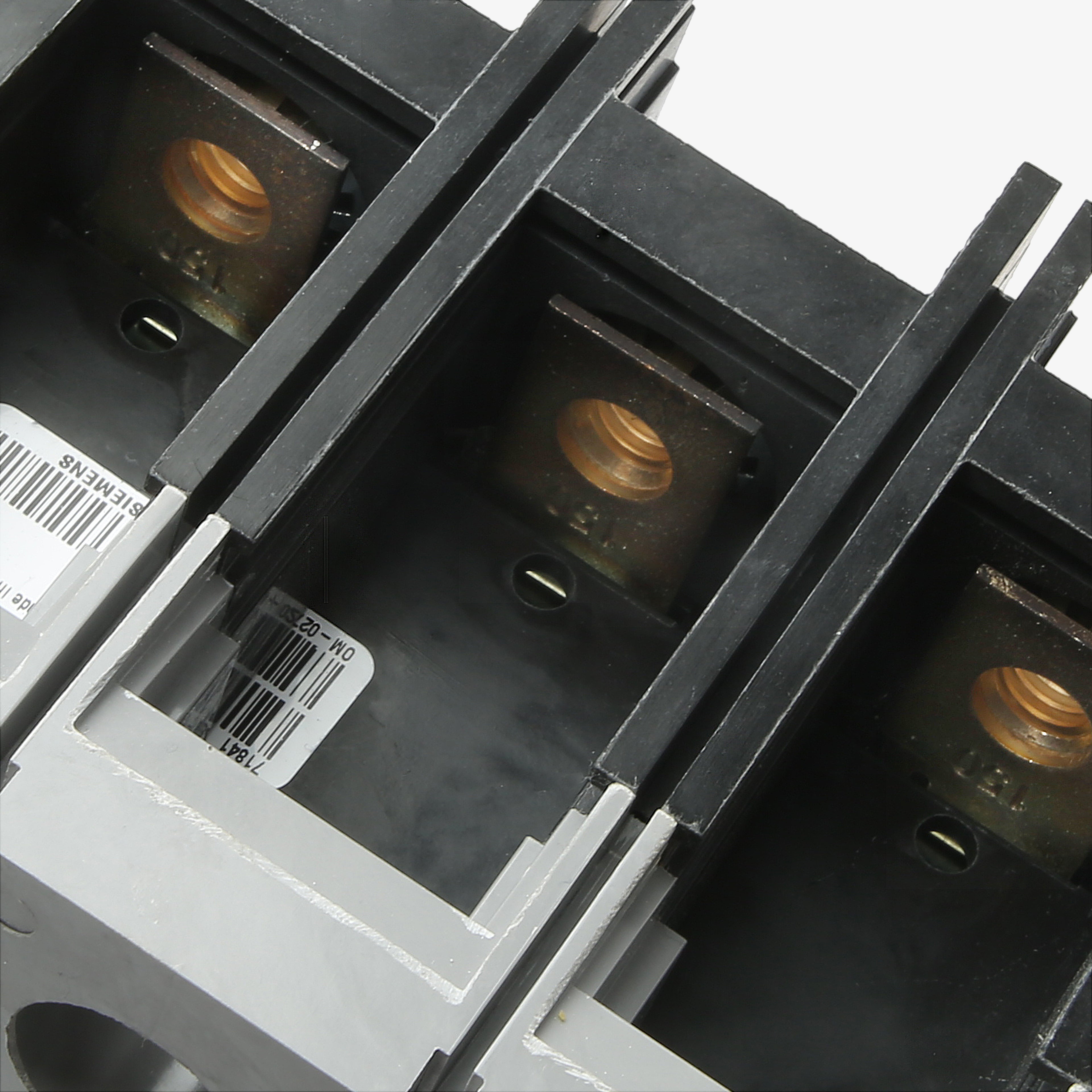

Designed for standalone industrial applications, this 175A unit-mount breaker features factory-installed line and load lugs for immediate wire termination. It mounts securely into control panels and switchgear rather than bolting onto a traditional busbar. Delivering a robust 65kA interrupting capacity at 480VAC, the HFD63B175L utilizes fixed thermal and adjustable magnetic trip settings. Note that this legacy Sentron model is officially replaced by the newer 3VA5217-6EC31-0AA0 frame.

Specifications

Brand Siemens
Series HFD6
Part Number HFD63B175L
Amperage 175A
Voltage 240VAC, 480VAC, 600VAC, 500VDC
Poles 3
Phase 3
AIC Rating 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC

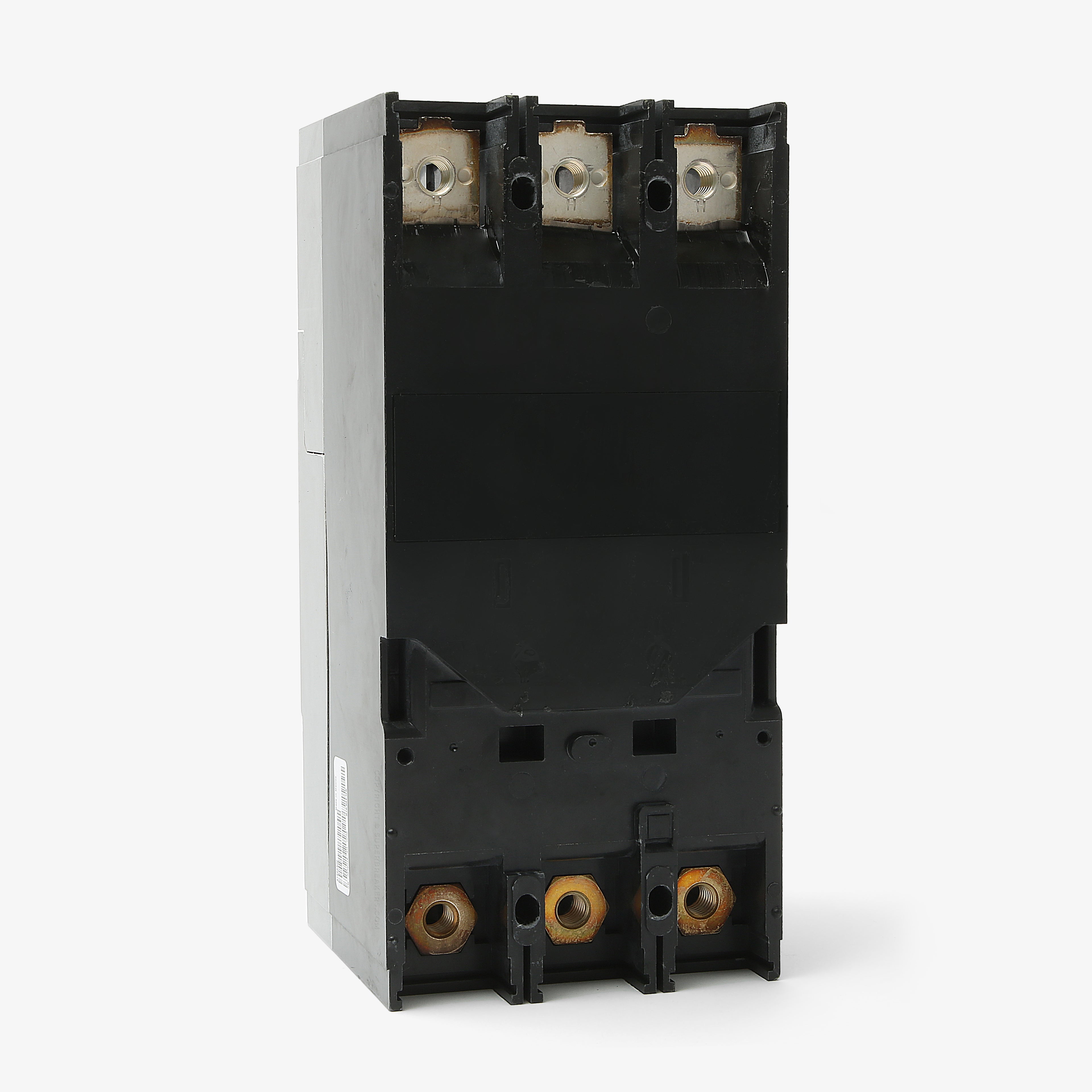

Mounting Style Unit Mount
Terminal Type Lugs
For Use With Siemens Sentron Panelboards (P1, P2, P3), Switchboards, Motor Control Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Adjustable Magnetic
Wire Gauge 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al)
Max Wire 350 kcmil
Min Wire 6 AWG (Cu), 4 AWG (Al)
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle
Accessories Line and Load Lugs Included (TA1FD350A)
Standards CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489
Approval CE, CSA, UL
Temp Rating 40C
Construction Features HACR Rated, High Interrupting Capacity, Interchangeable Trip Unit
