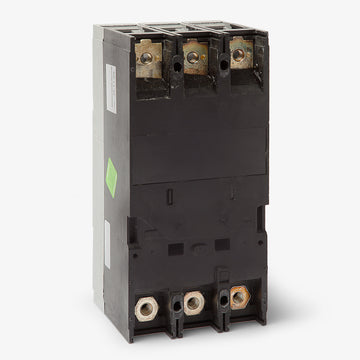

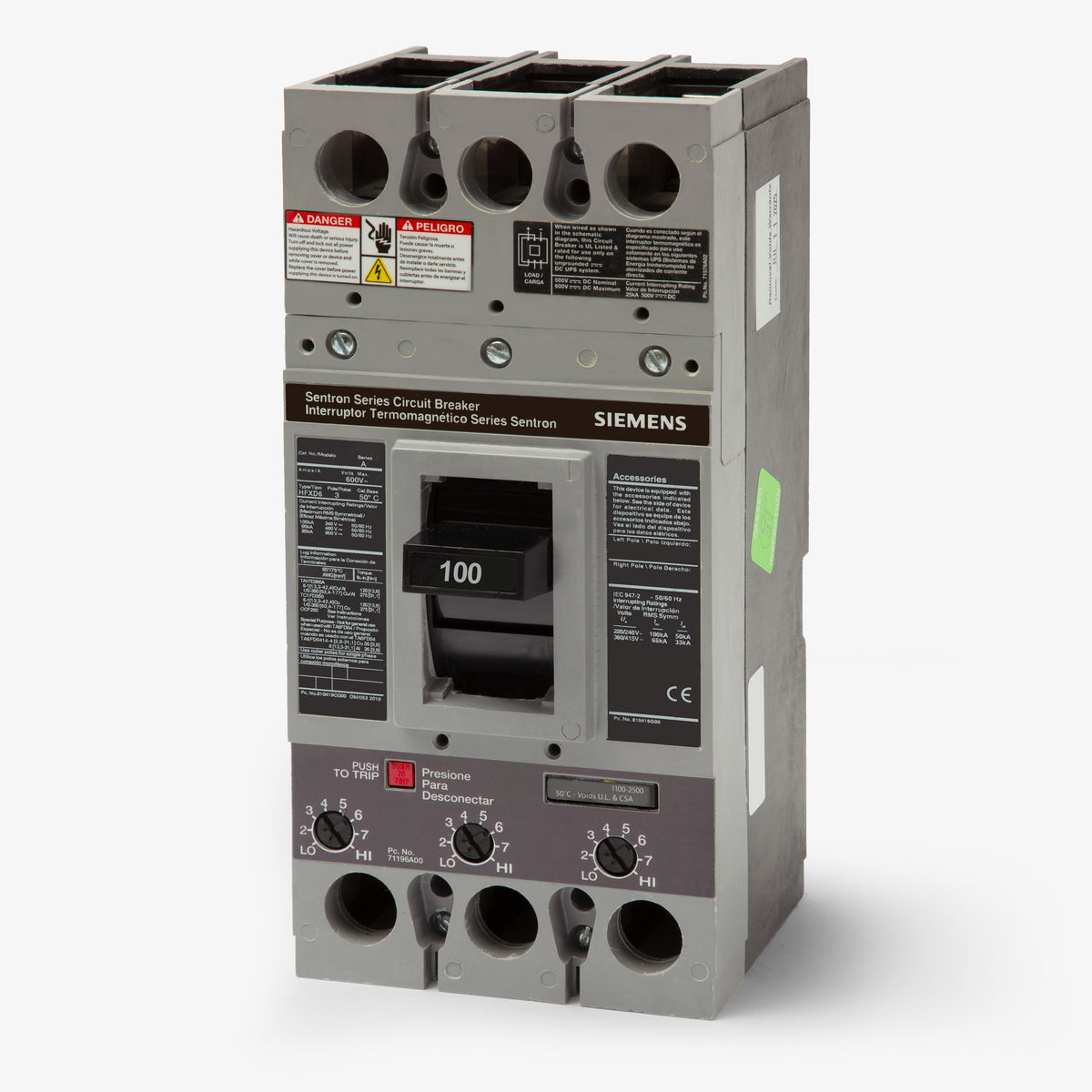

Siemens HFXD63B100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Siemens
HFXD63B100
Molded Case Circuit Breaker
Brand
Siemens
SKU
HFXD63B100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HFXD63B100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial applications, the HFXD63B100 is a 100A, 3-pole MCCB from the Siemens Sentron family. It utilizes a rugged FD frame design to deliver consistent overcurrent protection. This unit mount breaker installs into Siemens P1 through P5 panelboards, switchboards, and motor control centers. It can be replaced by the 3VA5210-6EC31-0AA0 using an adapter kit. Delivering 65kAIC at 480VAC, it features a thermal-magnetic trip unit with adjustable magnetic settings. Lugs are not included.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HFXD63B100 |
| Series | HFXD6 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | HFD |
|---|---|

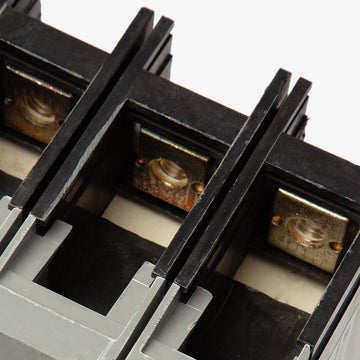

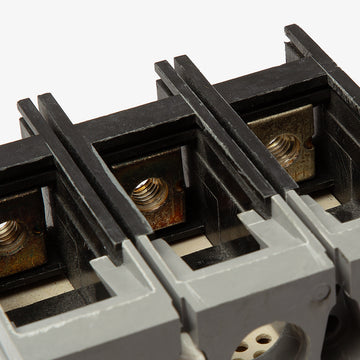

| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5, S4, S5, SPP, FPP Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhich Siemens enclosures and panelboards can accommodate the HFXD63B100?
It is directly compatible with Siemens P1, P2, P3, P4, and P5 panelboards, as well as S4, S5, SPP, and FPP switchboards and motor control centers.
Is the HFXD63B100 designed for I-T-E plug-in panelboards or unit mounting?
This specific breaker features a unit mount design with a bolt-on connection. It is intended for use in standalone enclosures, switchboards, and specific bolt-on panel configurations rather than standard plug-in load centers.
Does the HFXD63B100 offer adjustable trip settings?
Yes. While its thermal long-time protection for overload is fixed at 100 amps, it includes an adjustable magnetic instantaneous trip function. This allows customization for specific short-circuit and inrush current requirements.
Can the HFXD63B100 be utilized in DC electrical systems?
Yes, this molded case circuit breaker is rated for direct current applications up to 500VDC, providing a 25kA interrupting capacity for specialized industrial DC networks.
What does the H prefix signify in the HFXD63B100 part number?
The H prefix indicates it is a high-interrupting capacity breaker within the Sentron FD frame family. The HFD frame delivers up to 65kAIC at 480VAC, which is a higher short-circuit rating than standard FXD models.
Is the HFXD63B100 approved for heating, air conditioning, and refrigeration equipment?
Yes, this circuit breaker is HACR rated, ensuring it safely handles the unique inrush currents generated by HVAC group motor applications.
What is a modern replacement option for the HFXD63B100?
The legacy HFD frame HFXD63B100 is frequently upgraded to the newer Siemens 3VA5210-6EC31-0AA0. The 3VA52 model provides identical 100A and voltage specifications, though a different mounting adapter kit may be required depending on the existing panelboard structure.
