Siemens HFXD63B2501S11 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Unit Mount
Quantity

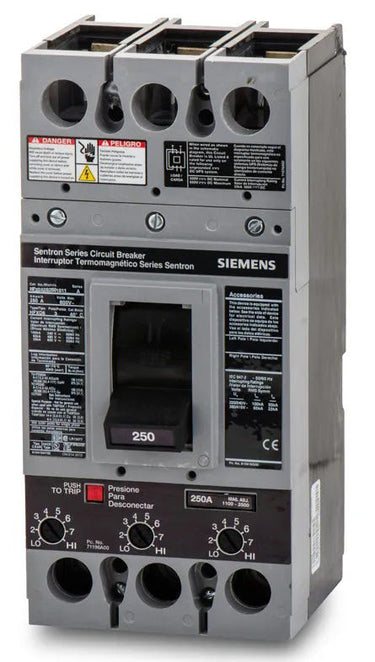

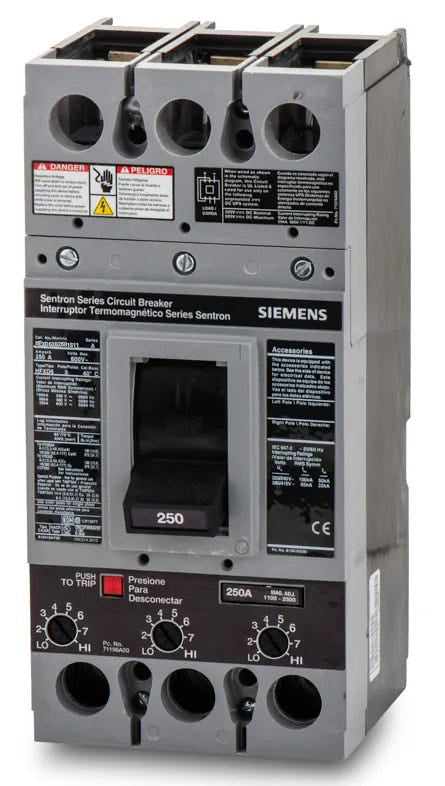

Siemens HFXD63B2501S11 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Part of the Sentron series, this 250-amp FD-frame molded case circuit breaker provides reliable thermal-magnetic protection for commercial and industrial electrical systems. It installs into Siemens P1 through P5 panelboards, switchboards, and motor control centers. The unit features a factory-installed shunt trip and auxiliary switch for advanced control and monitoring capabilities. With a 65kA interrupting rating at 480VAC, it ensures robust fault clearing without included lugs.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HFXD63B2501S11 |
| Series | HFXD6 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5, S4, S5, SPP, FPP Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Lugs, Alarm Switch, Undervoltage Release, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Auxiliary Switch (Factory Installed), Lugs Not Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
7 answersWhich Siemens panelboards are compatible with the HFXD63B2501S11 circuit breaker?
This FD-frame breaker is compatible with Siemens P1, P2, P3, P4, P5, S4, S5, SPP, and FPP panelboards, as well as Siemens switchboards and motor control centers.
What does the S11 suffix mean in the HFXD63B2501S11 part number?
The S11 suffix indicates the breaker comes equipped with a factory-installed shunt trip and auxiliary switch. This allows for remote tripping and provides advanced control and monitoring capabilities for industrial panels.
What type of trip unit is installed in the HFXD63B2501S11?
It features a thermal-magnetic trip unit with fixed thermal and adjustable magnetic settings (LI: Long-Time, Instantaneous). The adjustable magnetic trip allows electricians to precisely coordinate short-circuit protection with downstream devices.
What are the wire size requirements for the lugs on this breaker?
The included load-side lugs accept wire gauges from 6 AWG up to 350 kcmil. They are rated for both copper (Cu) and aluminum (Al) conductors.
Can the HFXD63B2501S11 be used in direct current (DC) electrical systems?
Yes, in addition to AC applications, this breaker is rated for DC systems up to 500VDC, providing a 25kA interrupting capacity at that voltage.
How is the HFXD63B2501S11 installed into a panelboard?
This is a unit-mount, bolt-on circuit breaker. It bolts directly to the busbar in compatible Siemens panelboards, switchboards, and motor control centers, ensuring a secure and reliable connection.
How does the factory-installed shunt trip enhance system safety?
The shunt trip allows the HFXD63B2501S11 to be opened remotely via an external control signal. This is critical for emergency shutdowns, equipment protection, and integrating the breaker into facility safety systems.
