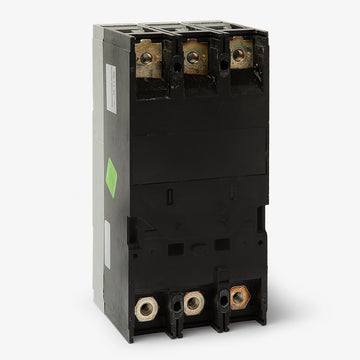

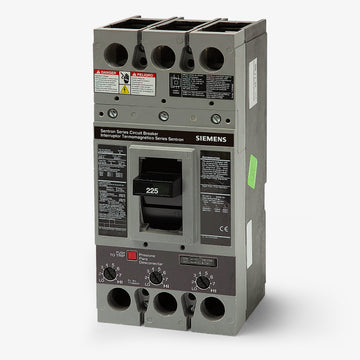

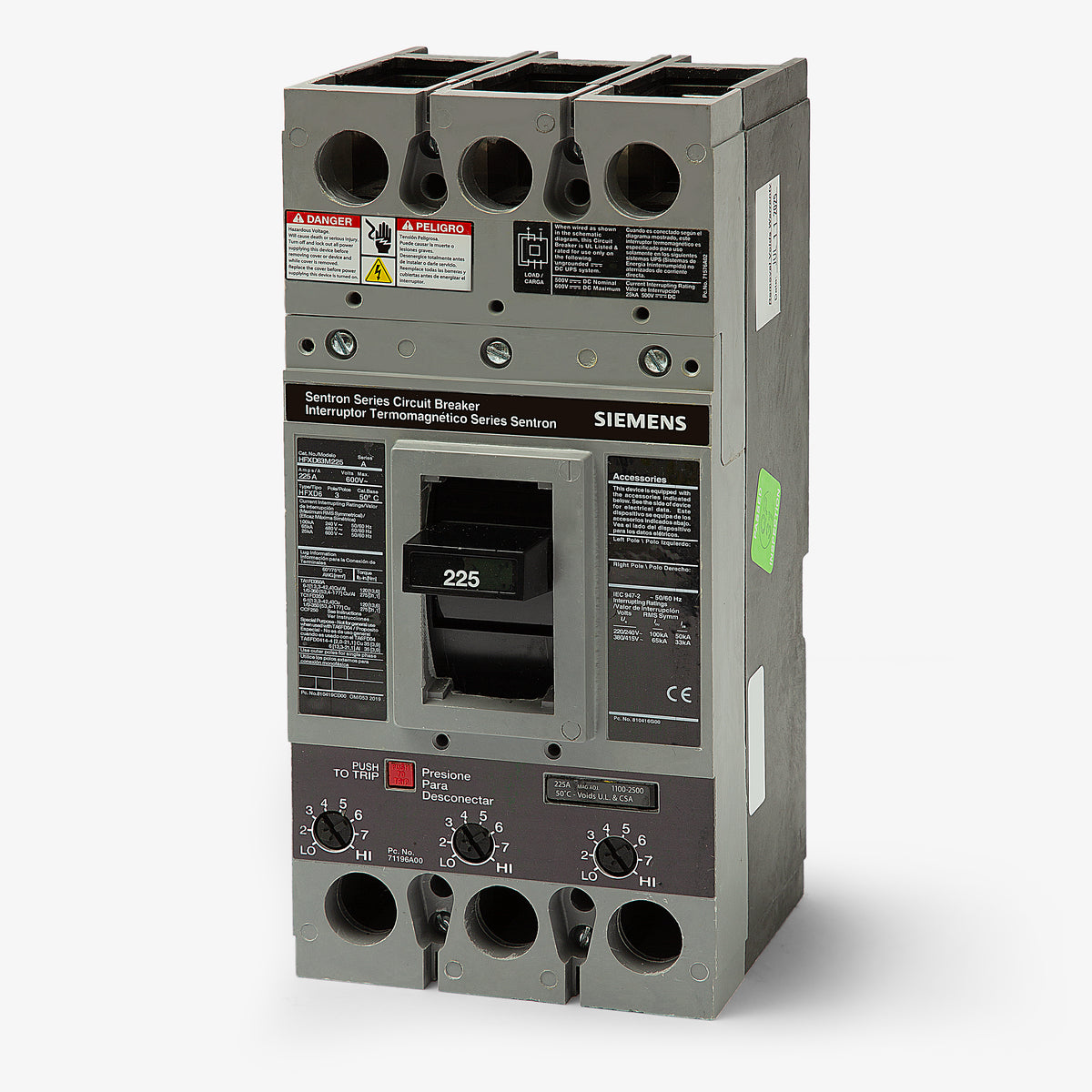

Siemens HFXD63M225 Motor Circuit Protector
- 225A
- 3 Pole
- Unit Mount
Quantity
Siemens HFXD63M225 - 225A 3 Pole Motor Circuit Protector
New
Quantity
Description
Part of the Sentron family, the Siemens HFXD63M225 is a 3-pole, 225A motor circuit protector designed for dedicated motor branch circuits. It installs into Siemens motor control centers, switchboards, and compatible enclosures using a standard unit mount configuration. Featuring an adjustable magnetic-only trip, this FD frame breaker delivers precise short-circuit protection while allowing standard motor inrush currents. It carries a robust 100 kAIC rating at 240VAC and 65 kAIC at 480VAC.Specifications
| Brand | Siemens |
|---|---|
| Series | HFXD6 |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | FD |
|---|---|

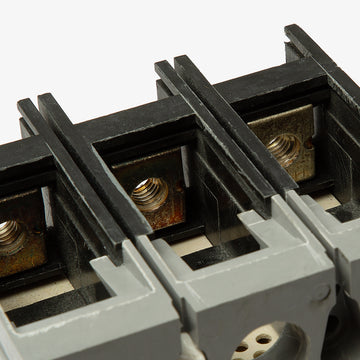

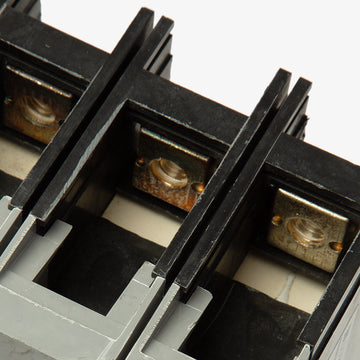

| Terminal Type | Lugs |
| For Use With | Siemens Motor Control Centers, Enclosures |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, High Interrupting Capacity, Reverse Feed |
