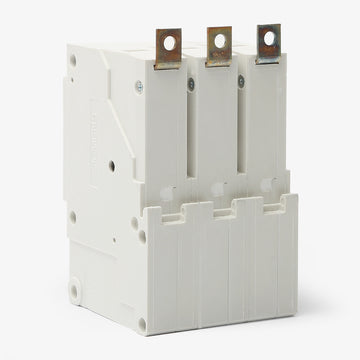

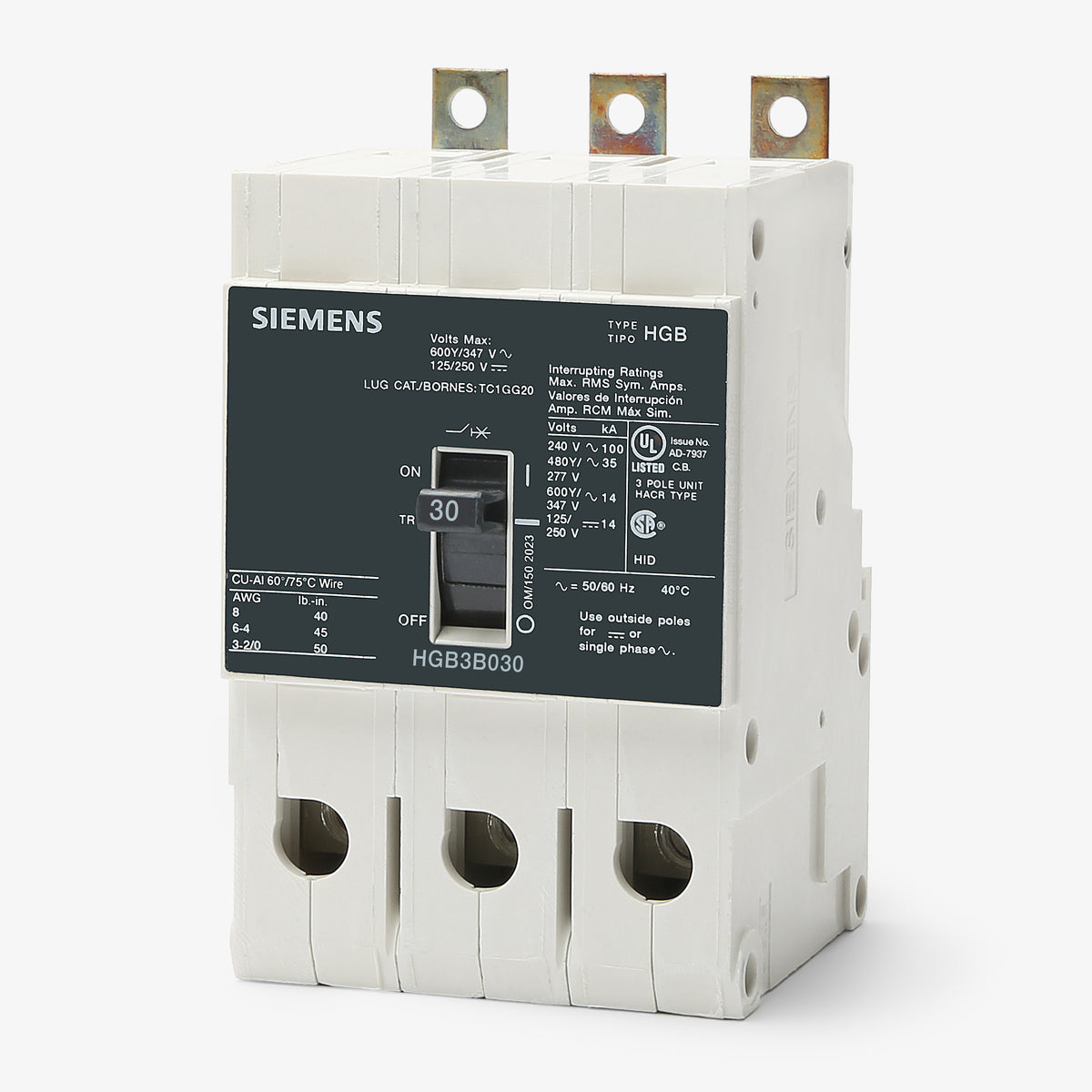

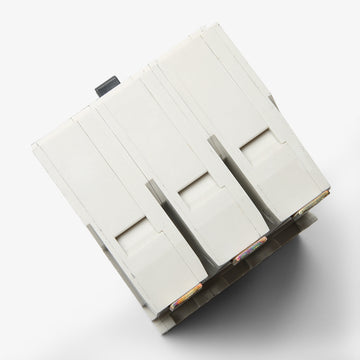

Siemens HGB3B030B Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Siemens
HGB3B030B
Molded Case Circuit Breaker
Brand
Siemens
SKU
HGB3B030B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HGB3B030B - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HGB3B030B - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HGB3B030B |
| Series | HGB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 35kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 42kA @ 125/250VDC |
| Frame Type | HGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity |
Sold out
Quantity
Siemens HGB3B030B - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | HGB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 35kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 42kA @ 125/250VDC |
| Frame Type | HGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding commercial environments, this 30-amp, 3-pole MCCB offers dependable long-time and instantaneous (LI) trip functions. The Siemens HGB3B030B handles up to 600Y/347VAC and delivers a 100kAIC rating at 240V. It mounts into Siemens P1, P2, P3, P4, and P5 panelboards and supports reverse feed setups. Equipped with standard load side lugs, it accommodates 14-6 AWG copper wire. For future upgrades, this model crosses to the 3VA5130-5EC31-0AA0 when paired with a mounting kit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HGB3B030B |
| Series | HGB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 35kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 42kA @ 125/250VDC |
| Frame Type | HGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity |
Product FAQs
5 answersWhich panelboards are compatible with the Siemens HGB3B030B?
This Sentron series breaker is designed specifically for Siemens P1, P2, P3, P4, and P5 panelboards. It utilizes a bolt-on connection to securely mount directly to the panel busbars.
What are the acceptable wire sizes for the factory lugs on this breaker?

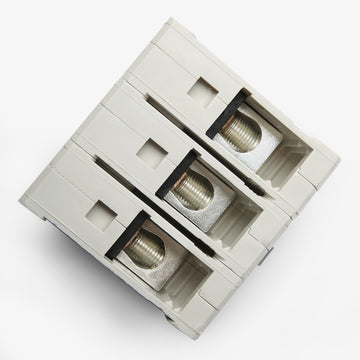

The terminal lugs accommodate 14 to 6 AWG copper wire or 12 to 6 AWG aluminum wire. Installers must adhere to the torque specifications printed on the breaker faceplate to ensure a secure connection and prevent terminal overheating.
How does the fixed thermal magnetic trip unit function on this model?
The LI (Long-Time and Instantaneous) trip unit uses a bimetallic strip to provide fixed thermal protection against continuous overloads. Additionally, a fixed magnetic mechanism ensures an instantaneous trip in the event of a high-fault short circuit.
Is the HGB3B030B rated for direct current (DC) systems?
Yes, in addition to its AC ratings, this breaker is rated for 125/250VDC systems with a maximum interrupting capacity of 42kA. Consult local electrical codes for proper wiring configurations in DC applications.
What frame class does the HGB3B030B belong to?
This device is built on the Siemens HGB frame, which is part of the broader Sentron GB and GG frame group. Verifying the frame type is critical when sourcing replacement accessories or confirming physical footprint requirements in existing enclosures.
