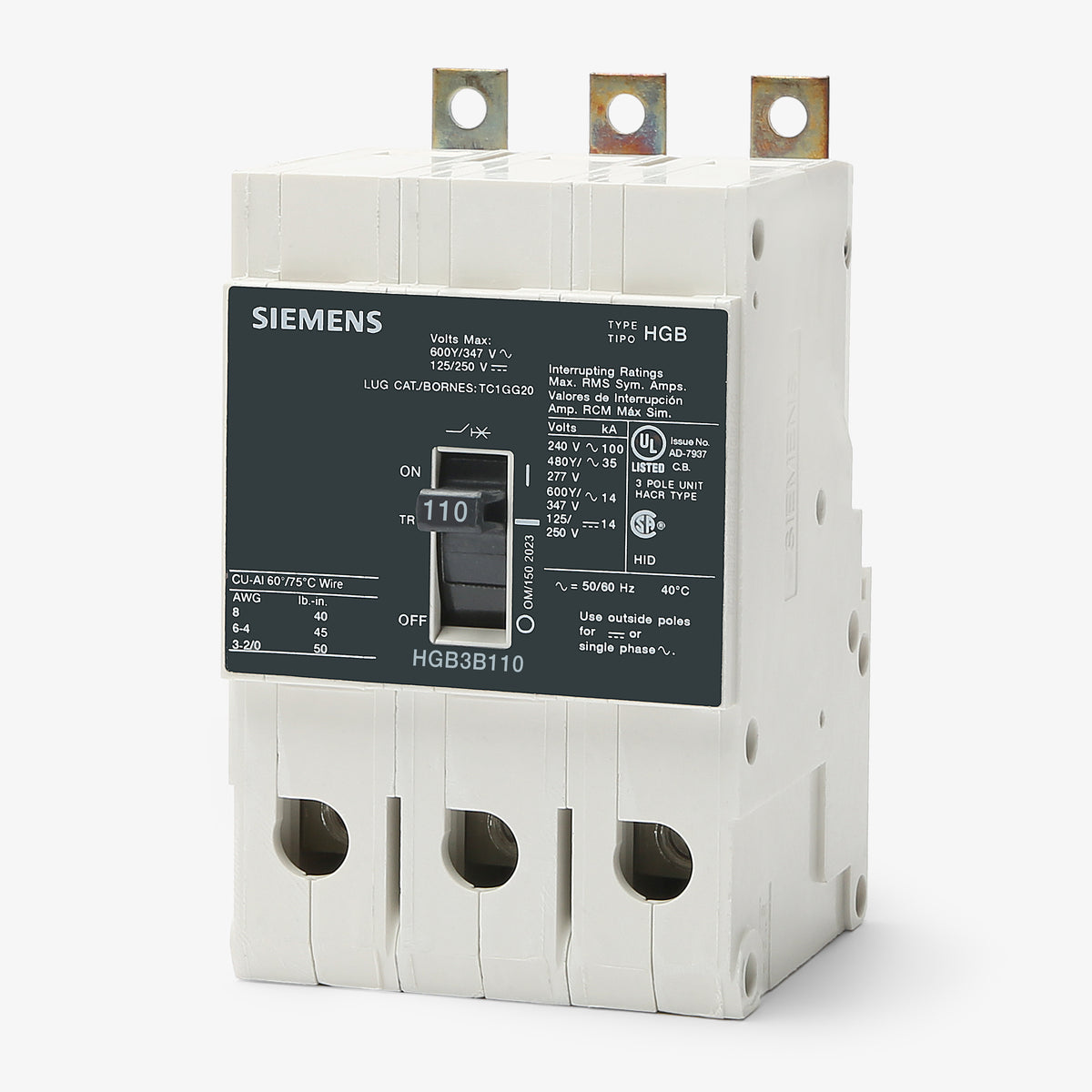

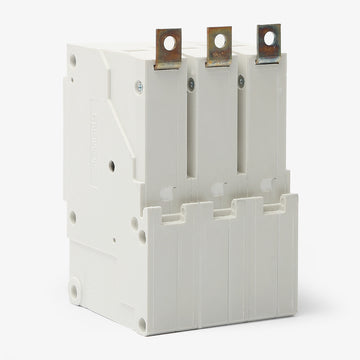

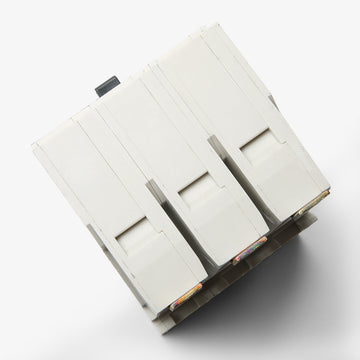

Siemens HGB3B110B Molded Case Circuit Breaker
- 110A
- 3 Pole
- Bolt-On
Siemens
HGB3B110B
Molded Case Circuit Breaker
Brand
Siemens
SKU
HGB3B110B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HGB3B110B - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Operating as a 3-pole, 110A molded case circuit breaker, the Siemens HGB3B110B delivers a 35kAIC interrupt rating at 480Y/277V. It features fixed thermal and magnetic trip elements for demanding commercial environments. The breaker mounts into Siemens P1 through P5 panelboards via a standard bolt-on connection. For modern upgrades, this legacy SENTRON GB frame model is replaced by the 3VA5111-5EC31-0AA0, though the newer frame will require an adapter kit for panel installation.Specifications
| Brand | Siemens |
|---|---|
| Series | HGB |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 35kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 42kA @ 125/250VDC |
| Frame Type | HGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu), 8-2/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity |
Product FAQs
5 answersWhich Siemens panelboards are compatible with the HGB3B110B circuit breaker?
This bolt-on breaker is designed for use in Siemens P1, P2, P3, P4, and P5 series panelboards.
What wire sizes are accepted by the terminals on the HGB3B110B?

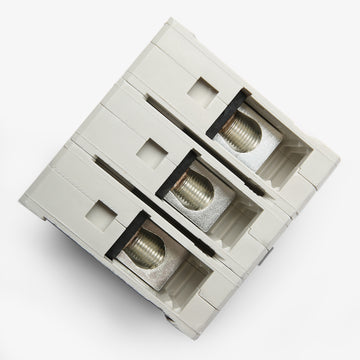

The factory-installed load side lugs accept 8 to 1/0 AWG copper wire or 8 to 2/0 AWG aluminum wire. Ensure proper torque specifications are followed during installation as outlined by the manufacturer.
Can the HGB3B110B be utilized in direct current (DC) systems?
Yes, this breaker is rated for DC applications up to 125/250VDC, providing an interrupting capacity of 42kA at that voltage.
Are the trip settings adjustable on the HGB3B110B?
No, this breaker features a fixed thermal and fixed magnetic trip unit. It provides standard LI (Long-Time and Instantaneous) protection without adjustable dials.
Is the Siemens HGB3B110B still in active production?
The HGB3B110B is a legacy SENTRON GB frame breaker that has been phased out by Siemens. The modern successor is the 3VA5111-5EC31-0AA0, though installing the newer 3VA frame in existing panels requires a specific adapter kit.
