Siemens HGG2B015L Molded Case Circuit Breaker
- 15A
- 2 Pole
- Unit Mount
Siemens
HGG2B015L
Molded Case Circuit Breaker
Brand
Siemens
SKU
HGG2B015L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

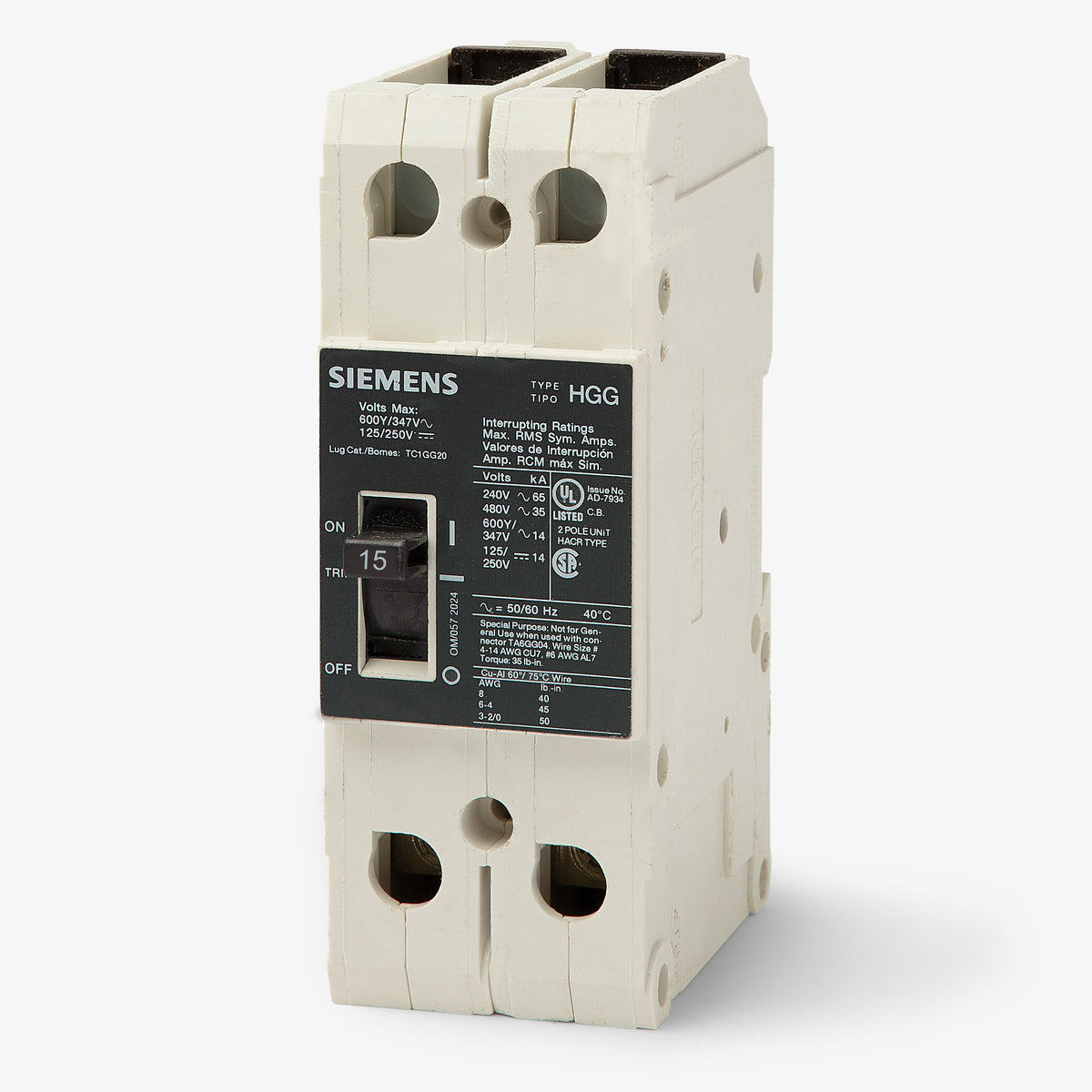

Siemens HGG2B015L - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Engineered for robust power distribution, the Siemens HGG2B015L is a 2-pole, 15A MCCB from the SENTRON GB/GG frame group. It utilizes fixed thermal magnetic trip technology for reliable long-time and instantaneous (LI) protection. This unit mount breaker fits Siemens P1, P2, and P3 panelboards and switchboards. It is superseded by the 3VA5195-5ED21-0AA0, which requires a retrofit kit. With a 65kAIC rating at 240VAC, this HACR and HID-rated breaker ensures superior safety.Specifications
| Brand | Siemens |
|---|---|
| Series | HGG |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 30kA @ 250VDC |
| Frame Type | HGG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Side Lugs (TC1Q1) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, HID, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich Siemens panelboards are compatible with the HGG2B015L breaker?
This SENTRON series breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as compatible switchboards and standalone enclosures.

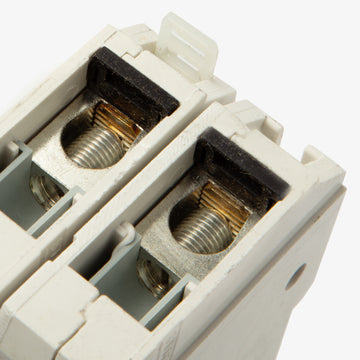

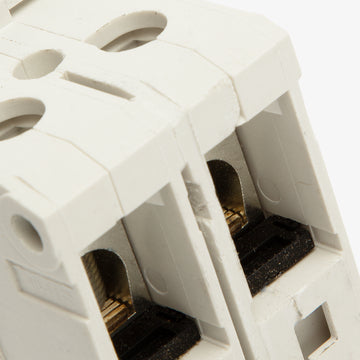

What wire sizes are accepted by the standard lugs on this 15A breaker?
The factory-installed lugs accept 14 AWG to 10 AWG wire. They are rated for both copper (Cu) and aluminum (Al) conductors.
How is the HGG2B015L secured within an enclosure or panel?
This is a unit mount, feed-thru circuit breaker. It can be secured using standard screw mounting or installed on a standard DIN rail depending on the specific enclosure requirements.
Is the HGG2B015L suitable for direct current (DC) systems?
Yes, this thermal magnetic breaker is rated for DC applications up to 250VDC, providing a 30kA interrupting capacity for direct current circuits.
Can the trip settings be adjusted on the HGG2B015L?
No. This breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions are factory set for 15A and cannot be modified in the field.
What frame size does the HGG2B015L belong to?
It is part of the Siemens GB/GG frame group, specifically the HGG frame. This is important when selecting mounting hardware, handle padlocks, or external accessories designed for SENTRON GG-frame breakers.
