Siemens HGG2B070L Molded Case Circuit Breaker
- 70A
- 2 Pole
- Unit Mount
Siemens
HGG2B070L
Molded Case Circuit Breaker
Brand
Siemens
SKU
HGG2B070L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

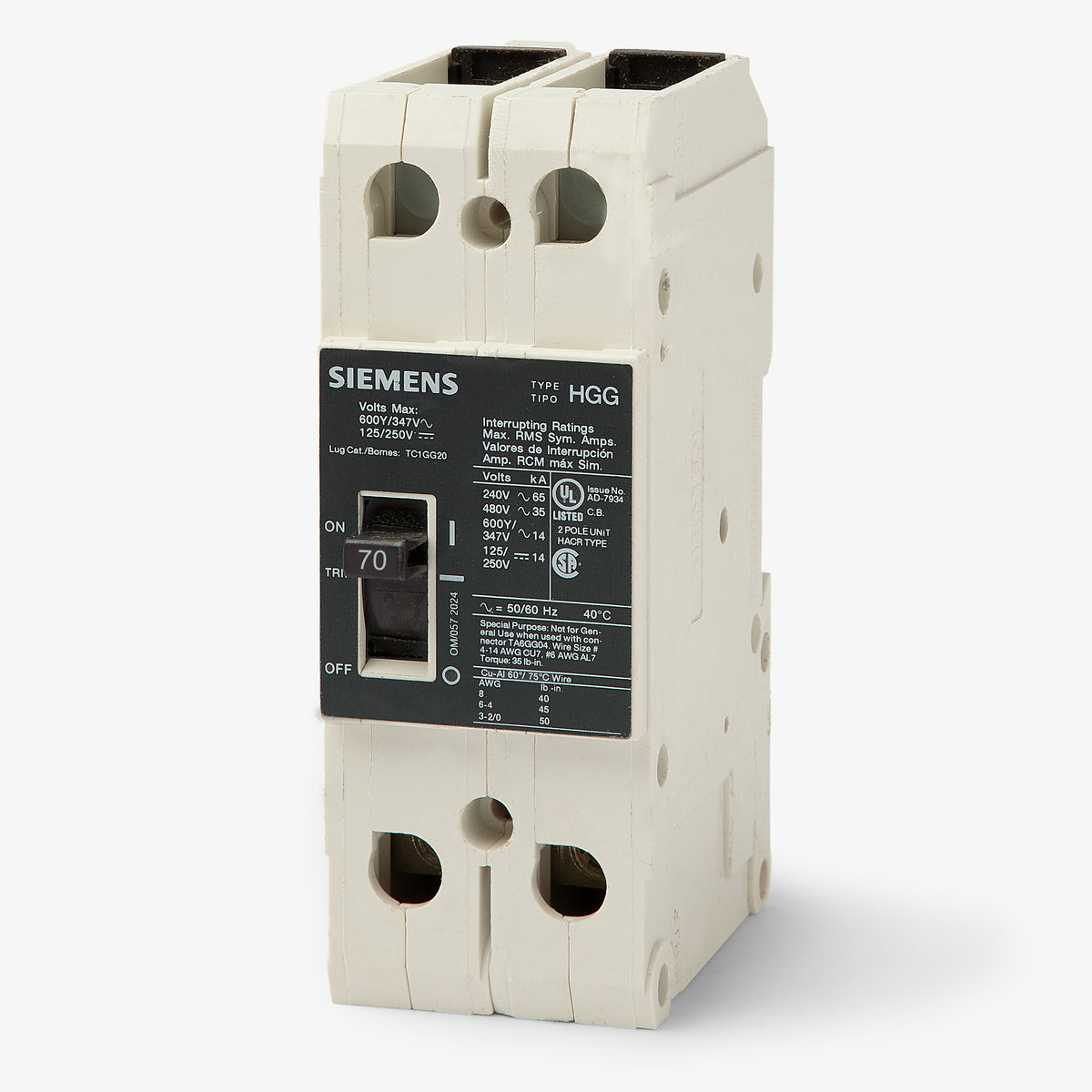

Siemens HGG2B070L - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial use, the HGG2B070L is a 70A, 2-pole molded case circuit breaker from Siemens. It utilizes fixed thermal and magnetic trip elements to deliver reliable LI circuit protection. This unit-mount MCCB integrates with Siemens P1, P2, and P3 panelboards, as well as switchboards. It replaces the LGG2B070L and is replaced by the 3VA5170-5ED21-0AA0. Featuring a 35kAIC rating at 480VAC, this HACR-rated breaker includes lugs and supports reverse feed applications.Specifications
| Brand | Siemens |
|---|---|
| Series | HGG |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 30kA @ 250VDC |
| Frame Type | HGG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Enclosures |
| Wire Gauge | 8-1/0 AWG (Cu), 8-2/0 AWG (Al) |
| Max Wire | 1/0 AWG (Cu) / 2/0 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Product FAQs
6 answersWhich Siemens panelboards are compatible with the HGG2B070L breaker?
This unit mount breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards and standalone enclosures.
How is the HGG2B070L physically mounted in an enclosure?
This is a unit mount, feed-thru circuit breaker. It can be secured using standard screw mounting or installed on a standard DIN rail, depending on your specific enclosure setup.

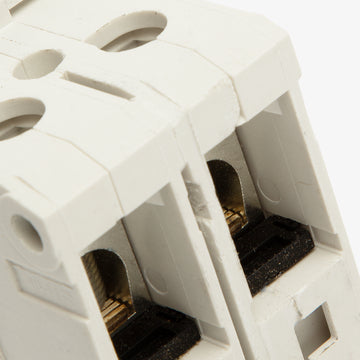

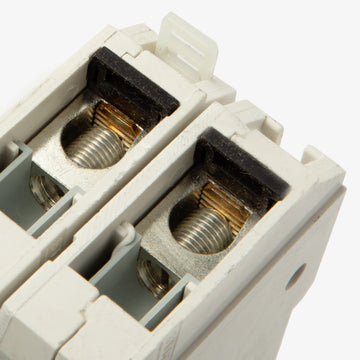

What wire sizes and materials are accepted by the lugs on this breaker?
The factory lugs accept 8 AWG to 1/0 AWG copper wire, or 8 AWG to 2/0 AWG aluminum wire. Always verify that your conductors match these ranges before terminating.
Can the HGG2B070L be utilized in direct current (DC) systems?
Yes, this thermal magnetic breaker is rated for DC applications up to 250VDC, providing a 30kA interrupting capacity for DC circuits.
What does the H in the HGG frame designation indicate?
The H denotes a high interrupting capacity version of the standard GG frame breaker. It provides elevated fault protection, such as 65kA at 240VAC and 35kA at 480VAC, compared to standard-tier breakers.
Are the thermal and magnetic trip settings adjustable on this model?
No, the HGG2B070L features fixed thermal and fixed magnetic trip elements. If your application requires adjustable trip curves, you will need to select a breaker equipped with an electronic trip unit.
