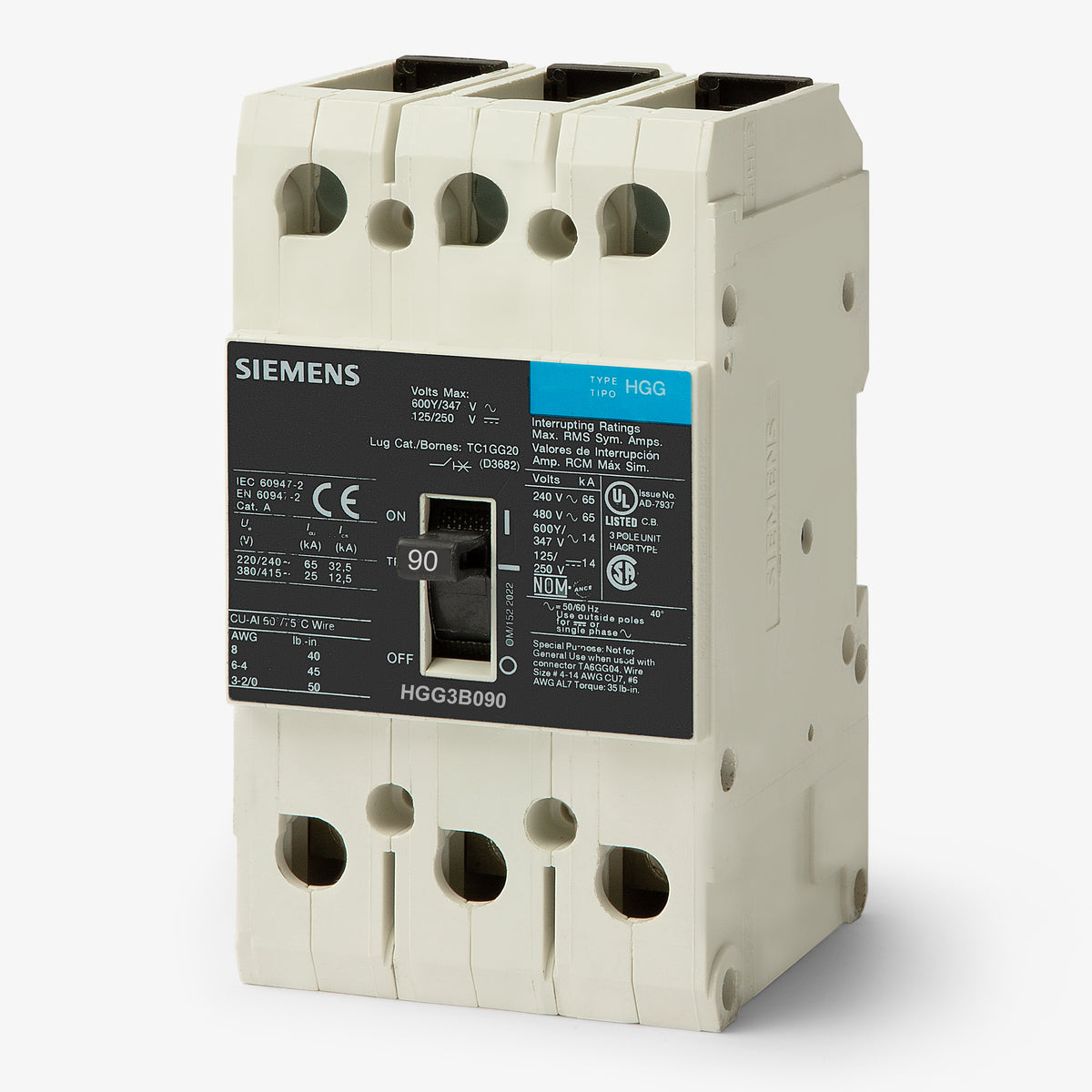

Siemens HGG3B090L Molded Case Circuit Breaker
- 90A
- 3 Pole
- Unit Mount
Siemens
HGG3B090L
Molded Case Circuit Breaker
Brand
Siemens
SKU
HGG3B090L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HGG3B090L - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, this 90A, 3-pole molded case circuit breaker provides robust thermal-magnetic protection. It is part of the Siemens Sentron family, utilizing the compact GB/GG frame. The unit-mount configuration installs into industrial control panels and enclosures, and is DIN rail mountable. It serves as a legacy component, now replaced by the 3VA5190-5EC31-0AA0.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HGG3B090L |
| Series | HGG |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 250VDC |
| Frame Type | HGG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Enclosures, DIN Rail, Industrial Control Panels |
| Wire Gauge | 8-1/0 AWG (Cu), 8-2/0 AWG (Al) |
| Max Wire | 1/0 AWG (Cu) / 2/0 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Side Lugs (3TC1GG20) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
