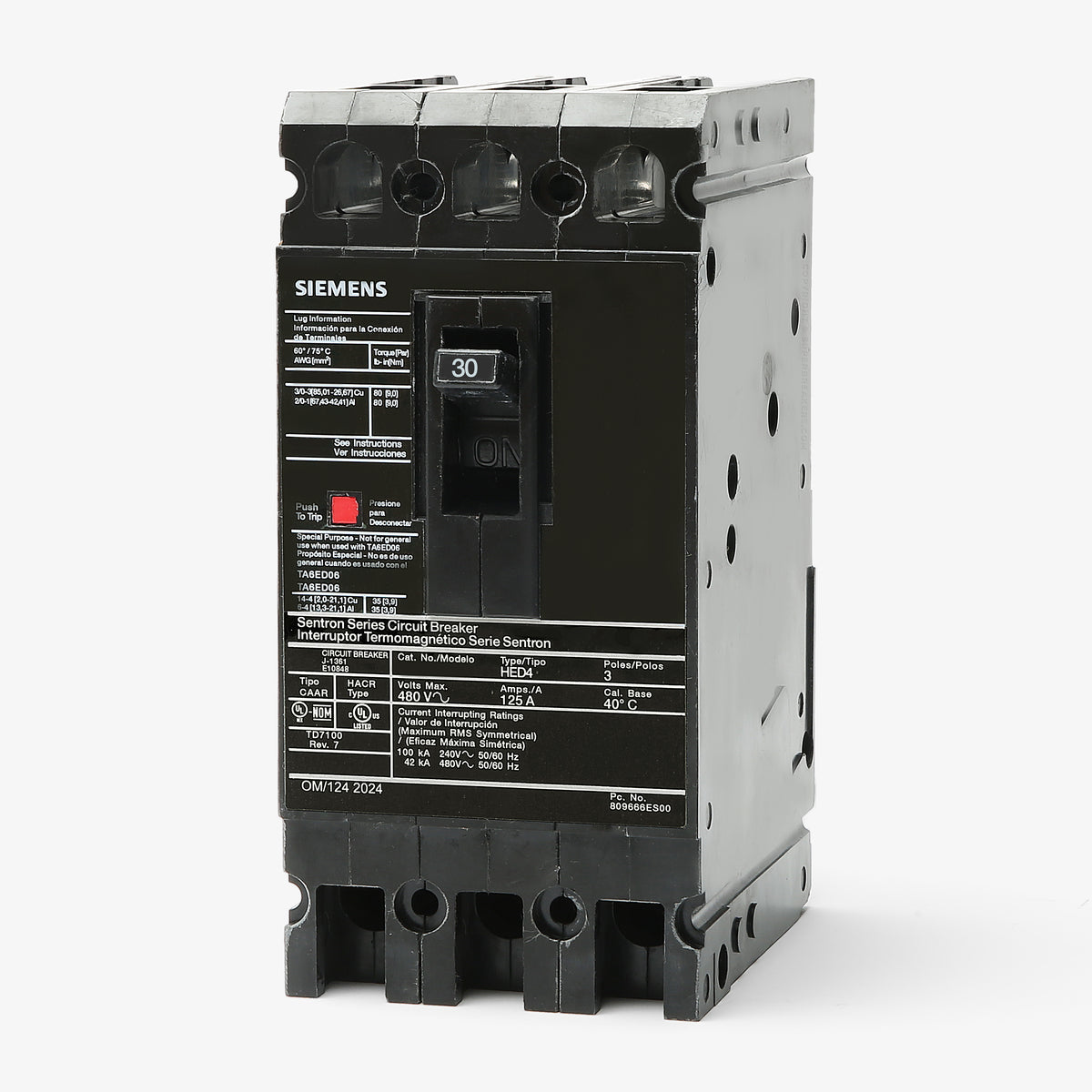

Siemens HHED63B030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Siemens
HHED63B030
Molded Case Circuit Breaker
Brand
Siemens
SKU
HHED63B030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HHED63B030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HHED63B030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HHED63B030 |
| Series | HHED6 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | HHED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Extra High Interrupting Capacity, HID Rated |
Quantity
Siemens HHED63B030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HHED63B030-R |
| Series | HHED6 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | HHED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Extra High Interrupting Capacity, HID Rated |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial environments, the Siemens HHED63B030 is a 3-pole, 30A molded case circuit breaker featuring fixed thermal magnetic trip units for reliable LI protection. This bolt-on MCCB mounts into Siemens P1, P2, and P3 panelboards or switchboards. It accepts 10 to 1/0 AWG wire via load side lugs. Rated for an extra high interrupting capacity of 65 kAIC at 480VAC, it ensures robust fault clearing. The unit is HACR and HID rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HHED63B030 |
| Series | HHED6 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | HHED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Extra High Interrupting Capacity, HID Rated |
Product FAQs
8 answersWhat panelboards are compatible with the HHED63B030 circuit breaker?
This bolt-on ED-frame breaker is designed for installation in Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards.
Can this breaker be installed in a residential plug-on load center?
No. The HHED63B030 is a bolt-on breaker built for commercial and industrial distribution equipment. It will not fit in standard residential plug-on load centers.
Is the Siemens HHED63B030 HACR rated?
Yes. Like most Siemens Sentron ED-frame circuit breakers, the HHED63B030 is HACR rated, meaning it is approved for use with dedicated heating, air conditioning, and refrigeration equipment.

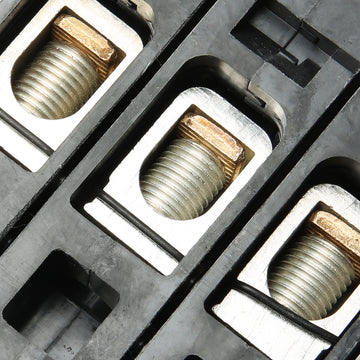

What is the accepted wire size range for the lugs on this breaker?
The standard factory-installed load lugs accept 10 AWG through 1/0 AWG copper or aluminum conductors.
Are line-side lugs included with this catalog number?
No. The standard HHED63B030 is a bolt-on breaker and includes load-side lugs only, as the line side bolts directly to the panel busbar. Models requiring factory-installed line and load lugs typically feature an "L" suffix in the catalog number.
Is the HHED63B030 suitable for reverse feed applications?
Yes. Standard Siemens ED-frame molded case circuit breakers are suitable for reverse feed applications, allowing power to be supplied to the load side terminals if required by the installation.
Can the trip settings on the HHED63B030 be adjusted?
No. This thermal-magnetic breaker features fixed thermal and fixed magnetic trip elements. The long-time and instantaneous trip functions are factory calibrated and cannot be field adjusted.
Does this breaker provide equipment ground fault protection?
No. The HHED63B030 is a standard thermal-magnetic breaker that provides overload and short-circuit protection. It does not include built-in ground fault or arc fault sensing capabilities.
