Siemens HHFD63B200 Circuit Breaker
- 200
- 3 Pole
- Unit
Siemens
HHFD63B200
Circuit Breaker
Brand
Siemens
SKU
HHFD63B200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HHFD63B200 3 Pole Circuit Breaker
New
Quantity
Quantity
Siemens HHFD63B200 3 Pole Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HHFD63B200 |
| Series | Sentron |
| Amperage | 200 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600V |
| Phase | 3 |
| AIC Rating | 100kAIC at 480V |
| Frame Type | HHFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Enclosures |
| Wire Gauge | AWG 6 to 350KCmil, Cu, AWG 4 to 350KCmil, Al |
| Max Wire | 350 kcmil |
| Min Wire | AWG 6 |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Lug Kits |
|---|---|
| Approval | CSA, IEC, UL |
| Temp Rating | 40 °C |
| Construction Features | HACR Rated, Current Limiting, Extra High Interrupting Capacity, Interchangeable Trip Unit, Trip-Free Mechanism |
Quantity
Siemens HHFD63B200 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | Sentron |
| Amperage | 200 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600V |
| Phase | 3 |
| AIC Rating | 100kAIC at 480V |
| Frame Type | HHFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Enclosures |
| Wire Gauge | AWG 6 to 350KCmil, Cu, AWG 4 to 350KCmil, Al |
| Max Wire | 350 kcmil |
| Min Wire | AWG 6 |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Lug Kits |
|---|---|
| Approval | CSA, IEC, UL |
| Temp Rating | 40 °C |
| Construction Features | HACR Rated, Current Limiting, Extra High Interrupting Capacity, Interchangeable Trip Unit, Trip-Free Mechanism |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description

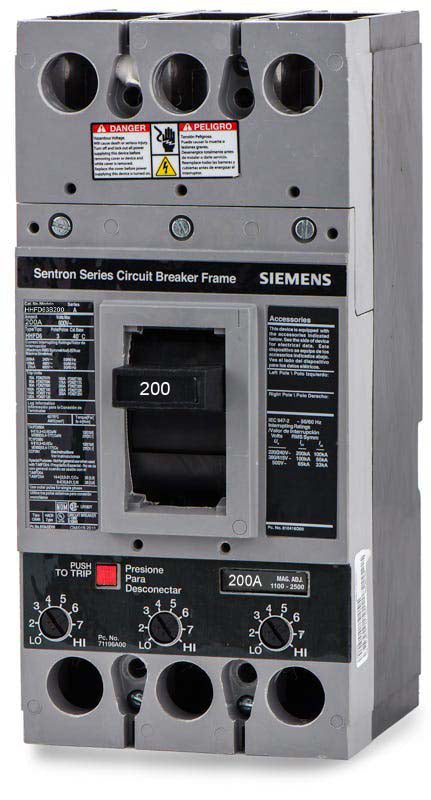

Siemens HHFD63B200 3 Pole Circuit Breaker
The Siemens HHFD63B200 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 200 Amps and a voltage rating of 600V. It has an interrupting rating of 100kAIC at 480V. The HHFD63B200 has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Siemens |
|---|---|
| Part Number | HHFD63B200 |
| Series | Sentron |
| Amperage | 200 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600V |
| Phase | 3 |
| AIC Rating | 100kAIC at 480V |
| Frame Type | HHFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Enclosures |
| Wire Gauge | AWG 6 to 350KCmil, Cu, AWG 4 to 350KCmil, Al |
| Max Wire | 350 kcmil |
| Min Wire | AWG 6 |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Lug Kits |
|---|---|
| Approval | CSA, IEC, UL |
| Temp Rating | 40 °C |
| Construction Features | HACR Rated, Current Limiting, Extra High Interrupting Capacity, Interchangeable Trip Unit, Trip-Free Mechanism |
Product FAQs
4 answersWhich Siemens panelboards are compatible with the HHFD63B200 circuit breaker?
This FD-frame breaker is designed for use in Siemens Sentron panelboards, switchboards, and enclosures, including P1, P2, P3, P4, and P5 series panels, as well as S4, S5, F1, and F2 distribution panels.
Which lug kit is included with the HHFD63B200?
This breaker comes standard with line and load side lugs, catalog number TA1FD350A, which accept 6 AWG to 350 kcmil copper or 4 AWG to 350 kcmil aluminum wire.
Can the HHFD63B200 be used as a main breaker in a panelboard?
Yes, when paired with the appropriate main breaker mounting kit, such as the MBKFD3200 for P1 panelboards, this FD-frame breaker can function as a main breaker.
Is the HHFD63B200 interchangeable with other FD-frame breakers?
Yes, it shares the same physical dimensions and mounting footprint as other Siemens Sentron FD-frame breakers, such as the FXD6, FD6, and HFD6, but offers an extra-high interrupting rating (HHFD).
