Siemens HJD63F400 Circuit Breaker Frame
- 400A
- 3 Pole
- Bolt-On
Quantity
Siemens HJD63F400 Circuit Breaker Frame
New
Quantity
Quantity
Siemens HJD63F400 Circuit Breaker Frame
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HJD63F400 |
| Series | HJD |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600 V |
| Phase | 3 |
| Approval | UL Listed and CSA Certified |
|---|
Quantity
Siemens HJD63F400 Circuit Breaker Frame
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HJD63F400 |
| Series | HJD |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600 V |
| Phase | 3 |
| Approval | UL Listed and CSA Certified |
|---|
Description

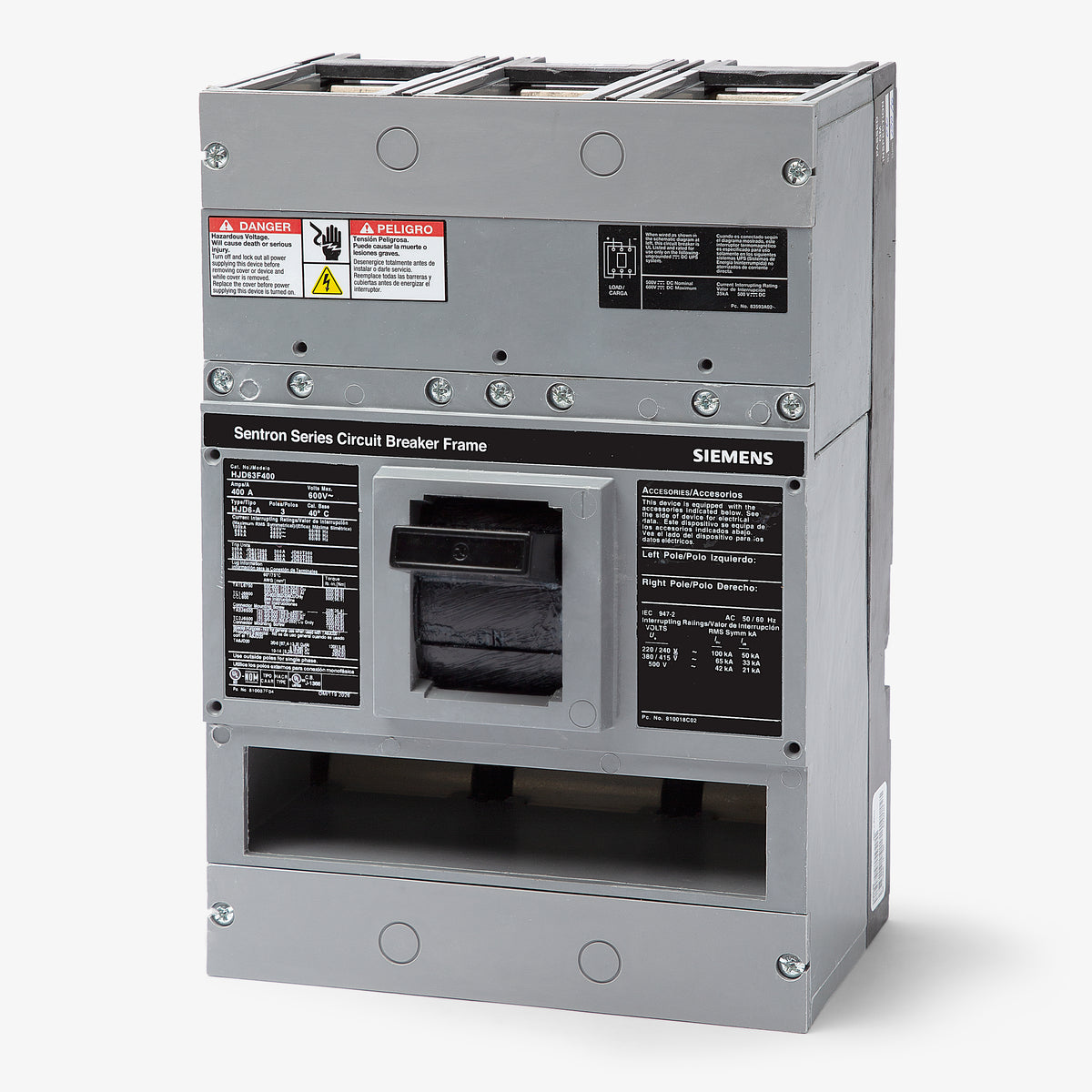

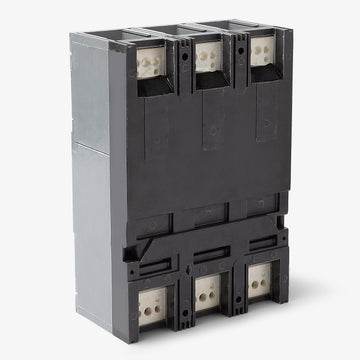

Siemens HJD63F400 3 Pole Circuit Breaker (Frame Only)
The Siemens HJD63F400 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 200-400 Amps and a voltage rating of 600VAC, 500VDC. It has an interrupting rating of 100kA at 240VAC, 65kA at 480VAC, 35kA at 600VAC, 500VDC. The HJD63F400 features with HJD frame type and comes with 3 phase connection.
(TRIP UNIT SOLD SEPARATELY)
Specifications
| Brand | Siemens |
|---|---|
| Part Number | HJD63F400 |
| Series | HJD |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600 V |
| Phase | 3 |
| Approval | UL Listed and CSA Certified |
|---|
Product FAQs
4 answersWhich trip units are compatible with the Siemens HJD63F400 circuit breaker frame?
This JD-frame requires a Siemens Sentron interchangeable trip unit to function. Compatible thermal-magnetic trip units include the JD63T200, JD63T225, JD63T250, JD63T300, JD63T350, and JD63T400, depending on the required amperage for your application.
What terminal lugs should be used with the HJD63F400 frame?

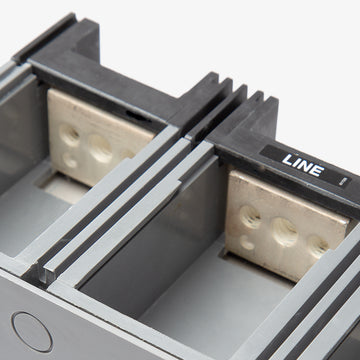

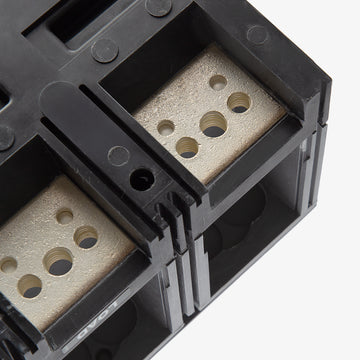

The standard line and load terminal lugs for this frame are Siemens part number TA2J6500. These lugs accept 3/0 AWG to 500 kcmil copper wire or 4/0 AWG to 500 kcmil aluminum wire. Since this is an unassembled frame, the lugs must be ordered separately.
Can I use this frame to replace a damaged HJD63B400 circuit breaker?
Yes, the HJD63F400 frame can be used as a direct replacement base for an HJD63B400 breaker. You can transfer the existing interchangeable trip unit and terminal lugs from your old breaker to this new frame, provided they are still in safe working condition.
What does the "F" in the HJD63F400 catalog number indicate?
In Siemens Sentron series nomenclature, the "F" indicates that this unit is a "Frame Only" component. It ships without a trip unit or terminal lugs installed, allowing panel builders to customize the breaker with the exact trip rating required for their specific install.
