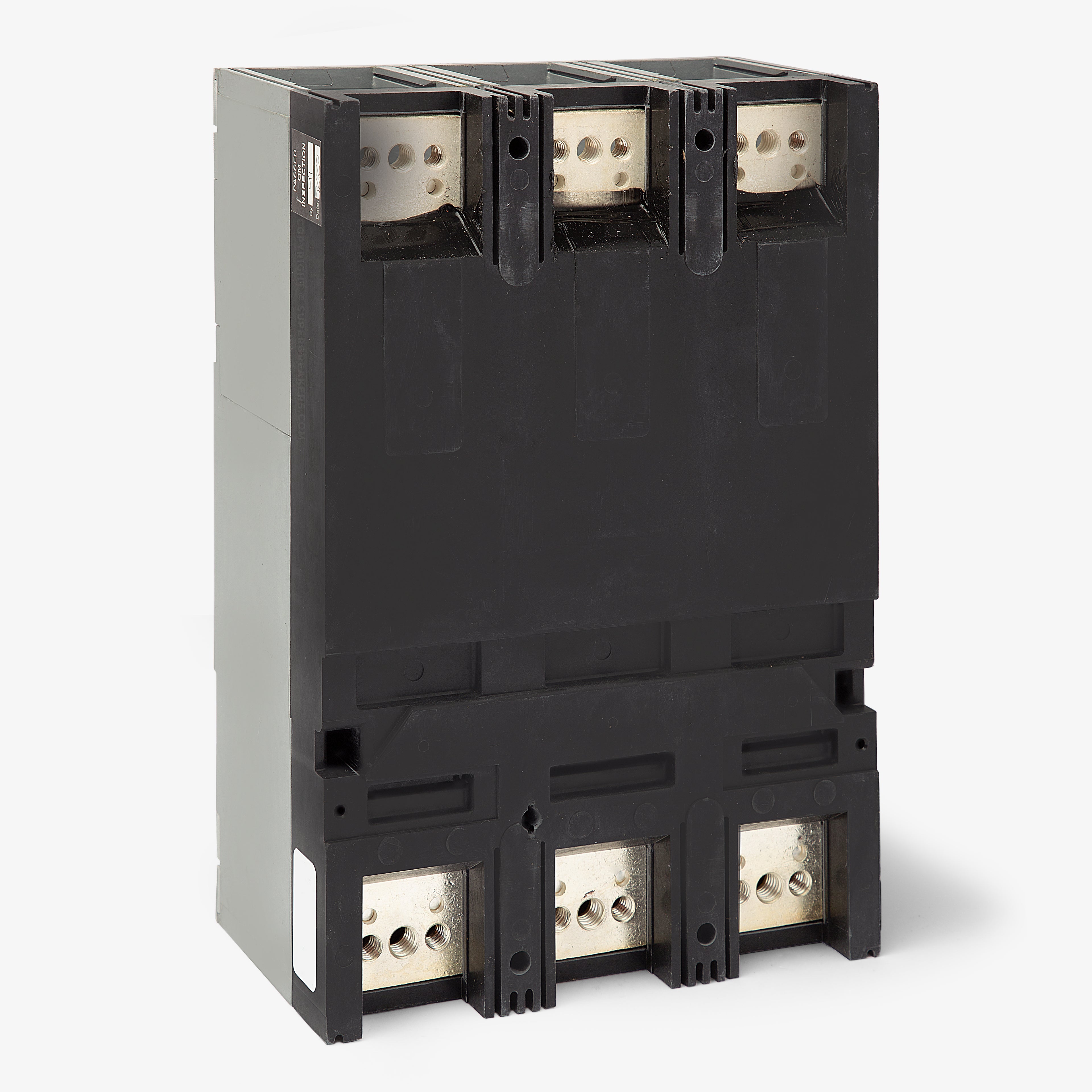

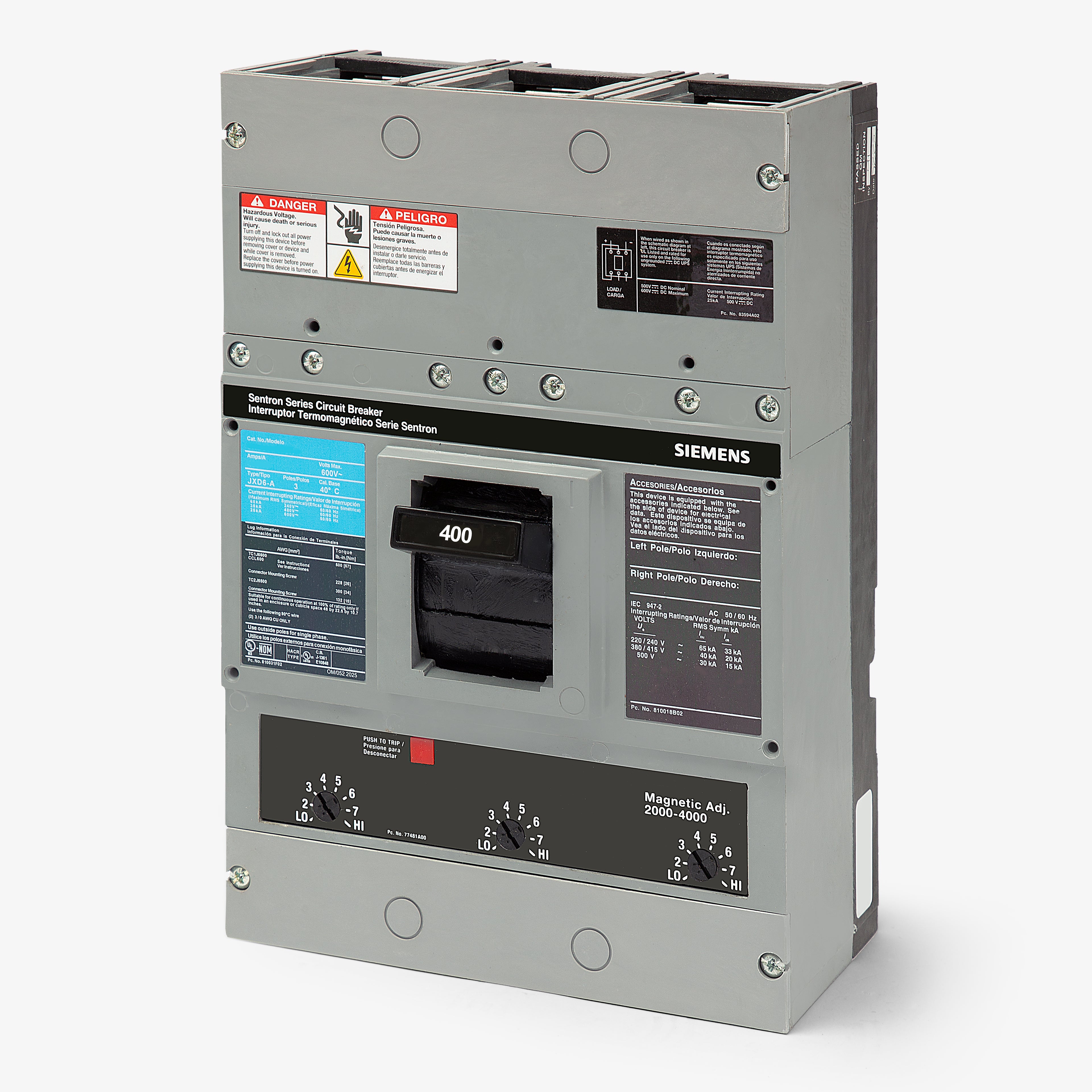

Siemens HJXD63B400L - 400A 3 Pole Molded Case Circuit Breaker

New

$1859.40 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Engineered by Siemens, the HJXD63B400L serves as a 3-pole, 400A molded case circuit breaker for industrial distribution. Belonging to the Sentron JD frame family, it provides reliable overcurrent protection. This unit-mount breaker installs into Siemens Sentron panelboards, including P4, P5, S4, S5, and SPP types, as well as compatible switchboards. Delivering high interrupting capacity, it is rated 100kAIC at 240V and 65kAIC at 480V. It features a thermal-magnetic trip and is HACR rated.

Specifications

Brand Siemens
Series HJXD6
Part Number HJXD63B400L
Amperage 400A
Voltage 240VAC, 480VAC, 600VAC, 500VDC
Poles 3
Phase 3
AIC Rating 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 35kA @ 500VDC
Mounting Style Unit Mount

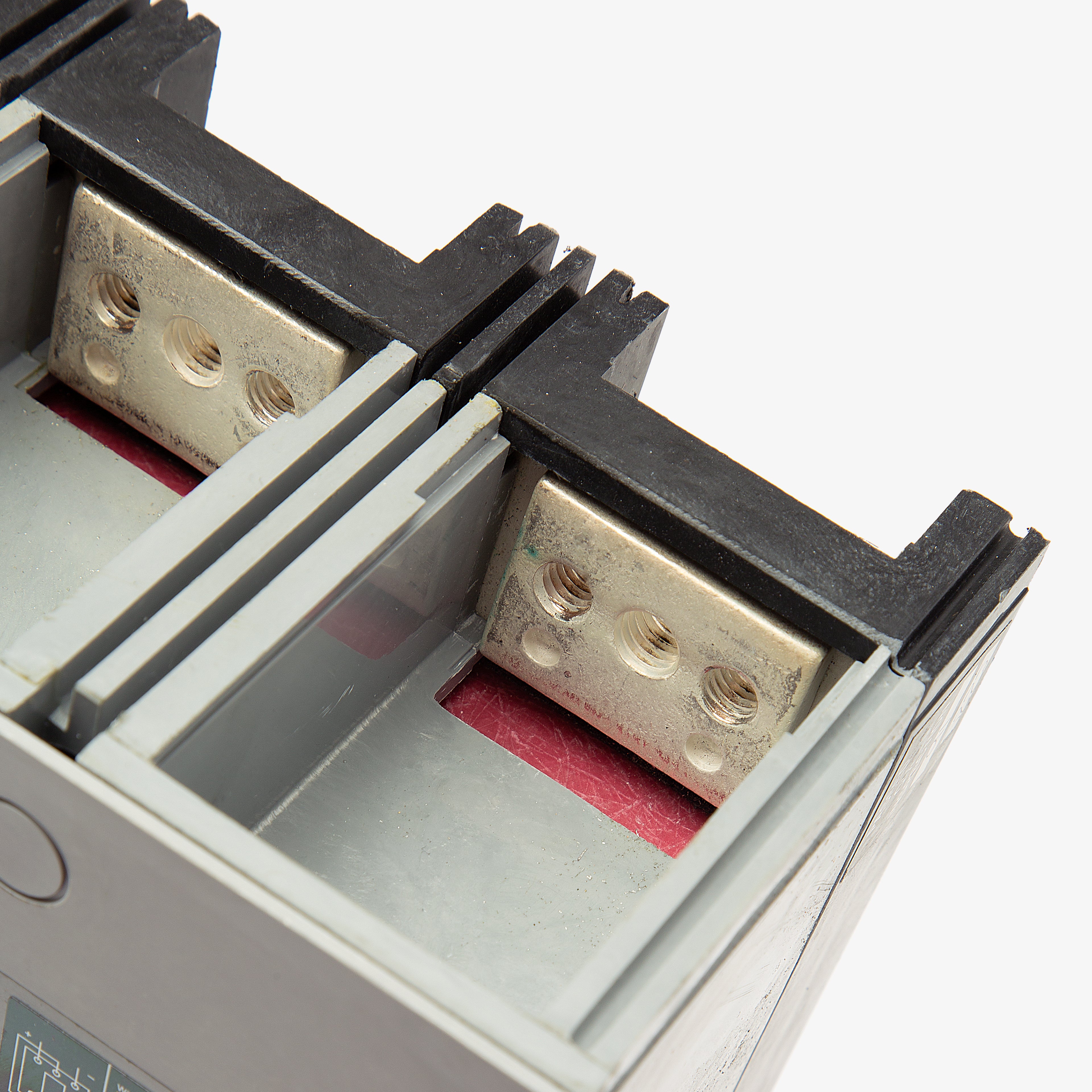

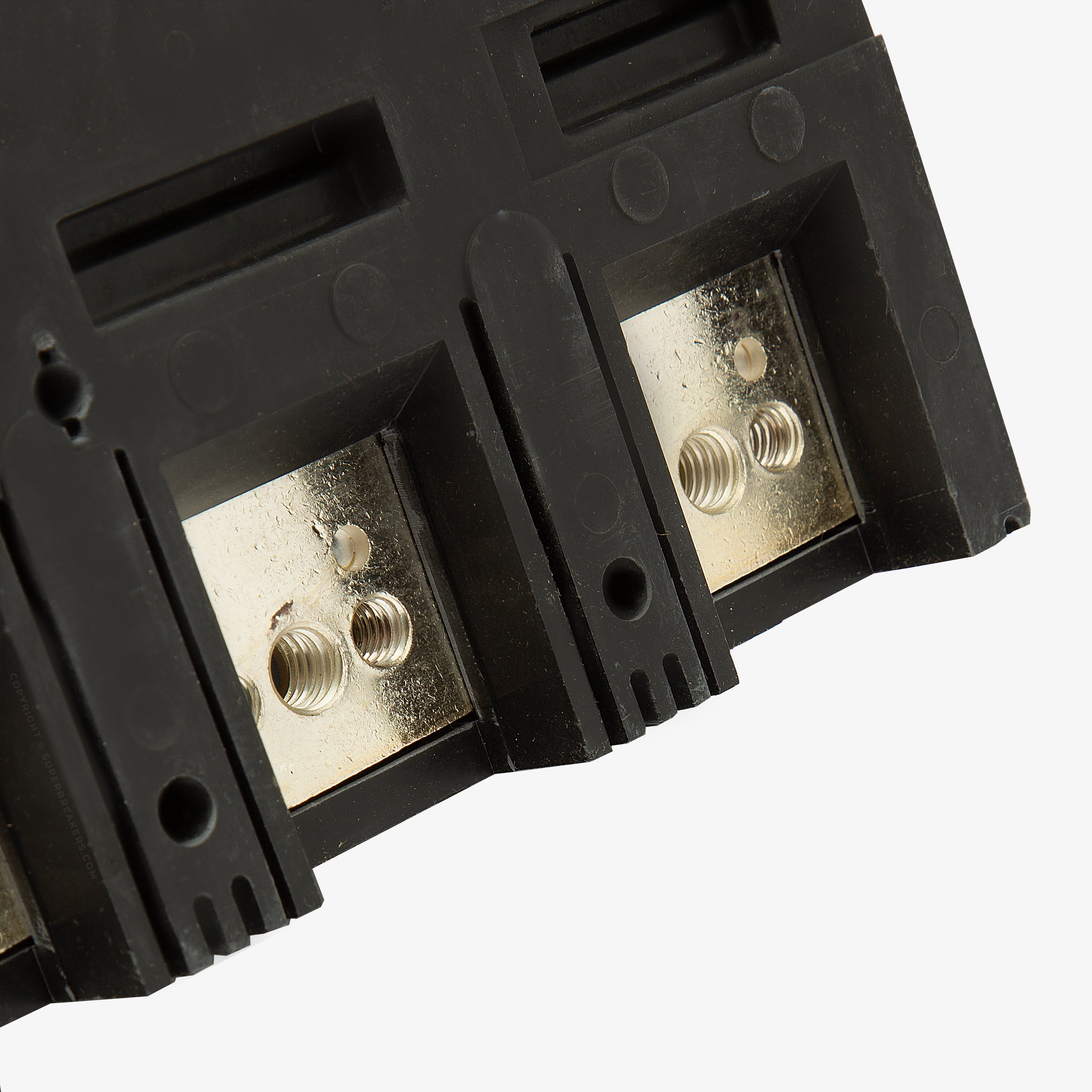

Terminal Type Lugs
For Use With Siemens Sentron Panelboards (Type P4, P5, S4, S5, SPP), Switchboards, Enclosures
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Adjustable Magnetic
Wire Gauge (2) 3/0 AWG - 500 kcmil
Max Wire 500 kcmil
Min Wire 3/0 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment
Accessories Line and Load Lugs (TA2J6500)
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489
Approval CSA, IEC, UL
Temp Rating 40C
Construction Features HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism
