Siemens HMD63B700 Molded Case Circuit Breaker
- 700A
- 3 Pole
- Unit Mount
Siemens
HMD63B700
Molded Case Circuit Breaker
Brand
Siemens
SKU
HMD63B700
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

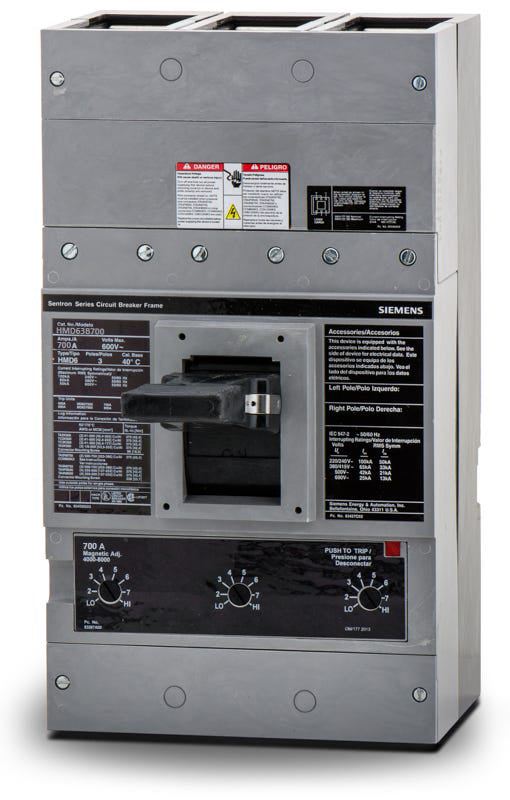

Siemens HMD63B700 - 700A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
600A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
Description
Engineered for demanding industrial environments, the Siemens HMD63B700 is a 3-pole, 700A molded case circuit breaker from the Sentron family. It provides reliable thermal-magnetic protection with an interchangeable trip unit and adjustable magnetic settings. This unit mount MCCB installs into Siemens P4 and P5 panelboards, switchboards, and motor control centers. It includes TA3K500 lugs for 1/0 AWG to 500 kcmil wire. Rated for 65kAIC at 480VAC, it ensures robust fault clearing.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HMD63B700 |
| Series | HMD6 |
| Amperage | 700A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 50kA @ 600VAC, 50kA @ 500VDC |
| Frame Type | HMD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4 Panelboards, Siemens P5 Panelboards, Siemens Switchboards, Siemens Motor Control Centers |
| Wire Gauge | (3) 1/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TA3K500) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Interchangeable Trip Unit |
Product FAQs
5 answersWhich enclosures are compatible with the HMD63B700 circuit breaker?
This unit-mount MCCB is designed for direct installation in Siemens P4 and P5 panelboards, as well as Siemens switchboards and motor control centers that accept Sentron MD-frame devices.
What size wire do the standard lugs on the HMD63B700 accept?
The included factory lugs accommodate up to three copper or aluminum conductors per phase. The acceptable wire range for these terminals is 1/0 AWG to 500 kcmil.
How is the trip unit adjusted on this model?
The HMD63B700 uses a thermal-magnetic trip unit with an LI function profile. The thermal element for long-time overload protection is fixed, while the magnetic element for instantaneous short-circuit pickup is adjustable via a dial on the breaker face.
How does the HMD frame differ from the standard MD frame breaker?
The H in the HMD designation indicates a high-interrupting capacity. This model offers a 65kAIC fault clearing rating at 480VAC, which provides greater short-circuit protection than standard MD frame breakers.
What safety procedures must be followed before replacing or installing this MCCB?
Always disconnect, lock out, and tag out all power sources feeding the switchboard or panelboard. Confirm the equipment is fully de-energized with a properly rated voltage meter before removing any covers or handling the breaker.
